Heating And Cooling Chiller
>
29kw Heating And Cooling Controller Hermetic Scroll Type

29kw Heating And Cooling Controller Hermetic Scroll Type

Brand Name: ANGES
Model Number: AC-10H(D)
MOQ: 1
Price: Negotiable
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Cooling And Heating Temperature Controller
Condition:
Brandnew
Cooling Capacity:
29kw
Heating Power:
12kw
Compressor Type:
Hermetic Scroll Type
Evaporator:
Shell & Tube Type
Usage:
Pharmaceutical,Heat Treatment Furnace,chemical And Biological,chemical
Supply Ability:
10000pcs/months
Highlight:

29kw heating and cooling controller

,

heating and cooling controller Scroll

,

29kw chiller heating and cooling system

Product Description

Heating And Cooling Temperature Controller Heating And Cooling Systems Industrial Cooling And Heating Chiller



The heating and cooling integrated dual-use chiller contains heating and cooling functions to meet different temperature requirements under different needs. Mutual switching can be realized to speed up production schedule, reduce energy consumption, improve the molding efficiency of products.

Item

AC-10H(D)
Nominal cooling capacity Kcal/h 24940
  kw 29
Input power kw 23.22
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Capillary
Compressor Type Hermetic scroll type
  Power (kw) 8.8
Condenser Type

Finned copper tube+low noise outer

rotor fan

  Power(kw) 0.92
  Cooling air flow(m3 /h) 10000

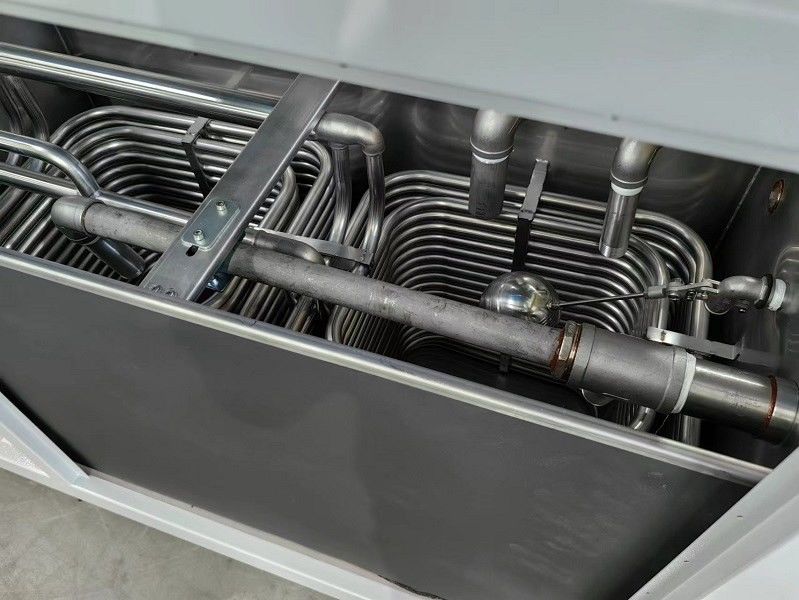

Evaporator Type Water tank with coil
  Chilled water flow (m3 /h) 5
  Tank volume(L) 200
  Inlet/outlet pipe chiller(inch) 1-1/2
Water pump Power(KW) 1.5
  Lift(m) 20
Heating device Type Heating tube
  Power(KW) 12
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 450
Dimension mm 1530*780*1630
