Place of Origin:
China
Brand Name:
ANGES
Model Number:
HBC-40(F)
Contact Us

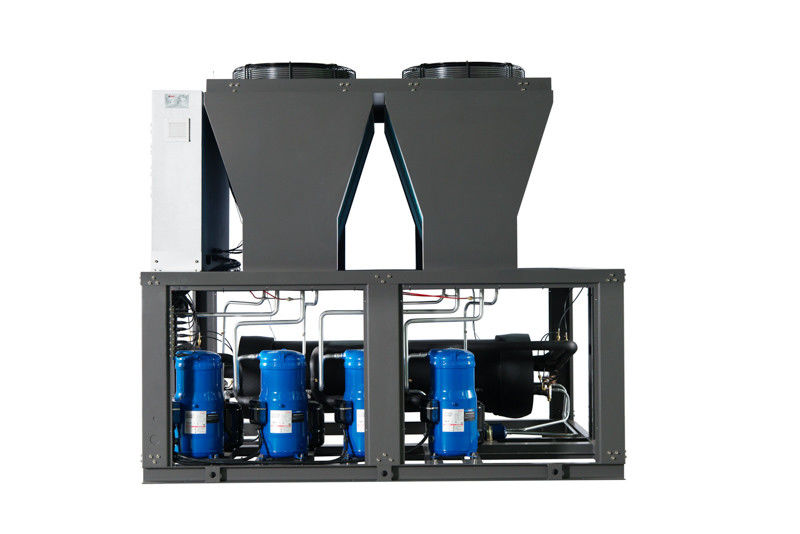

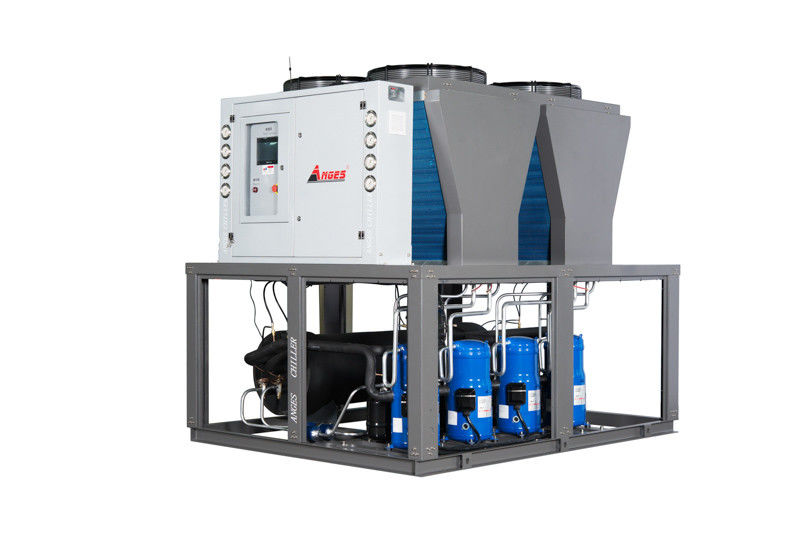

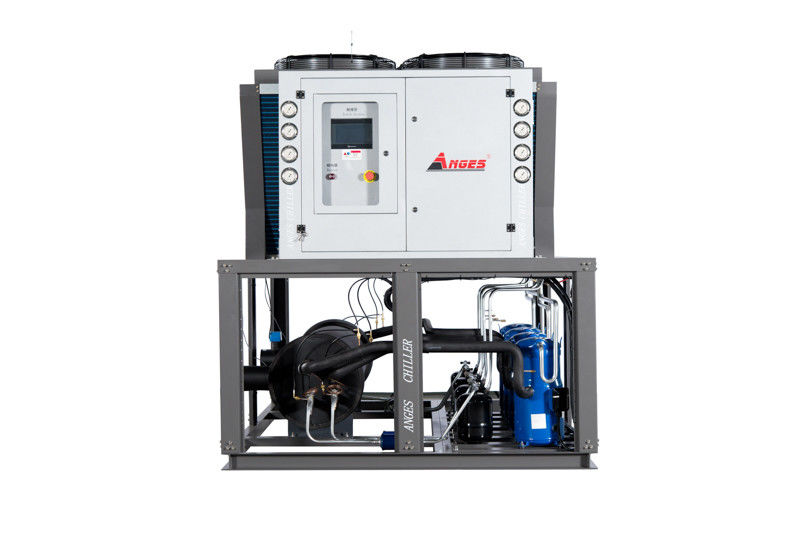

40Tr Air Cooled Portable Water Chiller Modular Chiller 40 Ton Air Cooled Modular Chiller System Hvac Cool Water Chiller
Industrial scroll type chiller
Anges air-cooled scroll type industrial chillers from 9 to 180 kW (2.5 to 51 tons) with built-in water tank and water pump, useful for small process loads and suitable for indoor or outdoor installation.They work after connecting the production lines with water pipes. The scroll compressor chiller can be air-cooled or waterocooled type, easy installation and operation with lower cost.
Air-cooled chillers are equipped with copper tube fin condenser that utilize ambient air to cold down the chiller refrigerant temperatures. The typical feature is that there' re fans on top of the condenser. The refrigerant cold by the air then be circulated through the industrial process to achieve a cooling effect.
Air-cooled Modular Chiller Specifications:
|
Model |
HBC-40(F) |
||
|
nominal cooling capacity |
kcal/h |
104920 |
|
|
kw |
122 |
||
|
input power |
kw |
39.2 |
|
|
power supply |
3PH/380V/50HZ |
||
|
refrigerant |
type |
R410a |
|
|
type of control |
Expansion valve |
||
|
compressor |
type |
hermetic scroll |
|
|
power(kw) |
32.4 |
||
|
condenser |
type |
finned copper tube + low noise outer rotor fan |
|
|
cooling air flow(m3/h) |
40000 |
||
|
evaporator |
type |
Shell and tube |
|
|
chilled fluid flow(m3/h) |
21.03 |
||
|
volume(L) |
580 |
||
|
inlet and outlet pipe diameter (inch) |
2-1/2 |
||
|
pump |
power (kw) |
4 |
|
|
flow rate(m3/h) |
25 |
||
|
Bar |
4 |
||
|
safety protection |
compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing |
||
|
weight |
kg |
1250 |
|
|
dimension |
mm |
2100*1660*2100 |
|
Applications of chilled water system
Industrial water chillers help keep your equipment at a safe operating temperature and cool your components during processes, widely used in plastic and rubber, food and beverages, medical chemistry, ultrasonic cooling, printing, electroplating, pharmaceutical and other various industrial process needs chiller service.
Some distinctive features of Air-cooled Chiller
1. Lower installed cost.The central screw chiller system contains refrigeration circuit, reservoir, pumps, and necessary components to work for multiple process throughout a plant, less pipes installation.
2. Convenience of installation and service.This air cooled central no need cooling tower installation, and water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
3. Accurate temperature control capability. The freezing temperature can be accurate to ±1℃, ensure the highest quality final products.
4. High Efficiency.The central chiller system continuously measures ambient and process conditions and will adjust to operate in the most efficient manner.
Benefit of industrial chiller applications
1. The ability to maintain constant and precise control of the process temperature.
2. The cooling fluid can be delivered directly to the application heat source to increased production speed and ensure efficiency production
3. Accurate temperature control capability, to ensure the highest quality final products.
4. Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
Air cooled industrial chiller installation and maintenance
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
