Place of Origin:
China
Brand Name:
ANGES
Model Number:
AM-9W
Contact Us

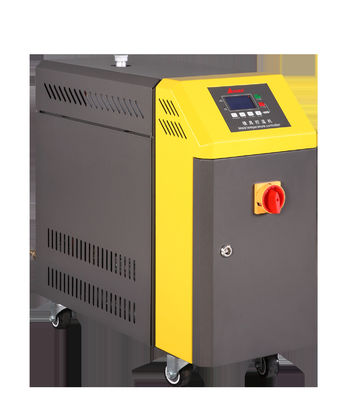

The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.
| Item | AM-9W | |
| Heat transfer medium | Water | |
| Max.Temperature | ℃ | 120 |
| Heating power | KW | 9 |
| Power | 3PH-380V-50HZ | |
| Pump power | HP | 1 |
| Pump max.flow rate | L/min | 56 |
| Pump max.pressure | bar | 3.8 |
| Medium volume | L | 3.2 |
| Cooling method | Direct cooling | |
| Mould Cooling | lnch | 3/8"*2 |
| Inlet/outlet size | lnch | 3/4"/3/4" |
| Dimension(mm) | H | 645 |
| W | 373 | |
| D | 745 | |
| Net weight | kg | 55 |
