| Brand Name: | SZAGS |
| Model Number: | 5HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T |

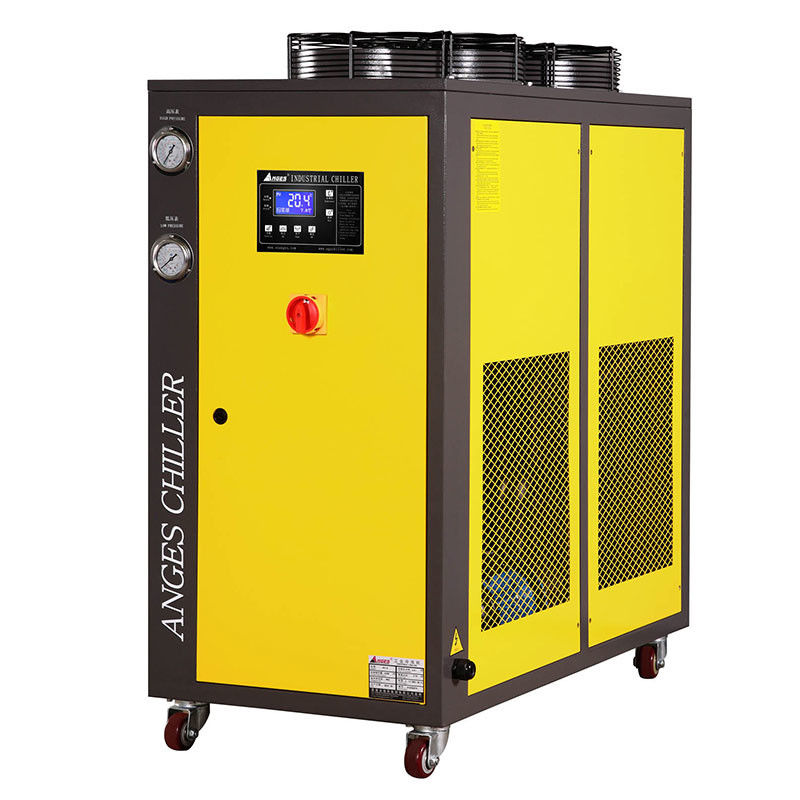

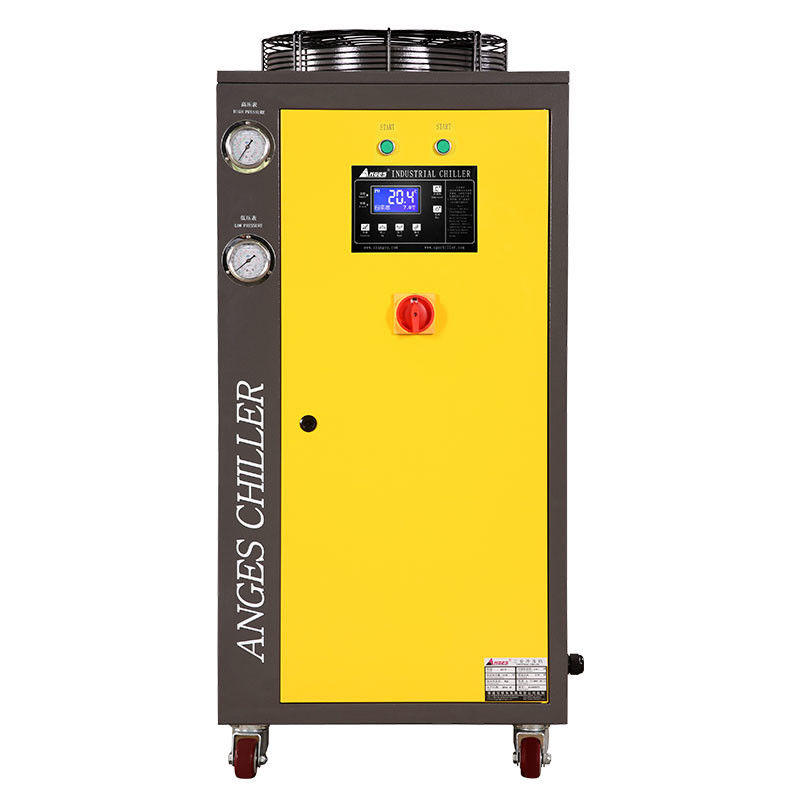

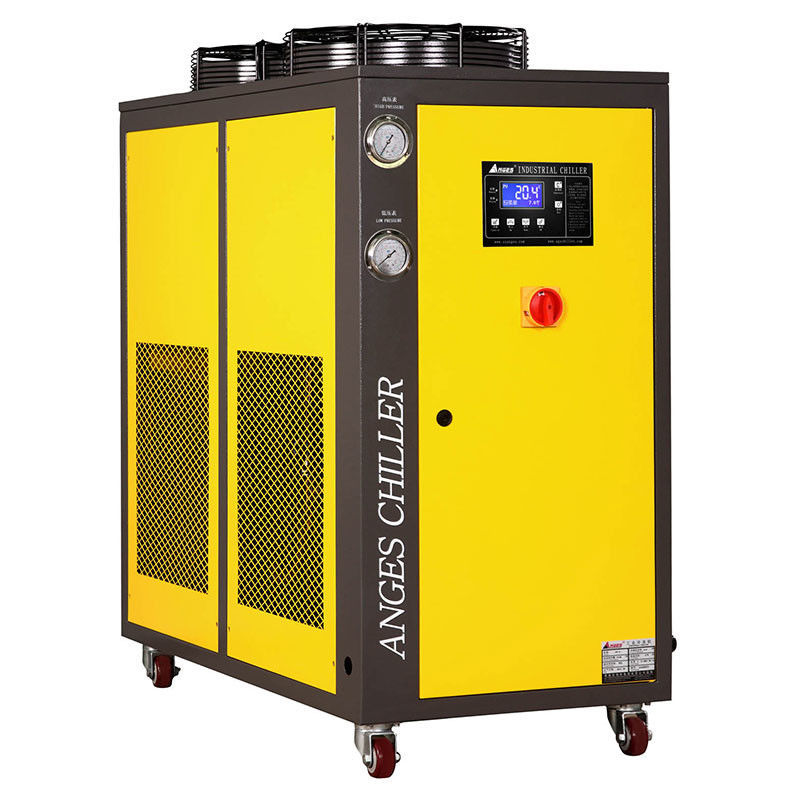

5HP Industrial Air Cooled Water Chiller for Plastic Injection Molds Water Cooling System
Industrial chillers are widely used in various industrial productions, such as rubber and plastics, electronic manufacturing, electroplating, chemistry, ultrasonic and printing, etc. The cooling of plastic products significantly improves their smoothness, reduces surface defects and internal stress, prevents deformation due to shrinkage of surface defects and internal stress, and improves production efficiency and product quality.
Industrial Chiller Specification:
|
Model Item |
ACK-5 | |
| Nominal cooling capacity | Kcal/h | 12126 |
| kw | 14.5 | |
| Input power | kw | 3.53 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22(R407c, R410a) |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 4.4 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.38 | |
| Cooling air flow(m3 /h) | 5000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 2.5 | |
| Tank volume(L) | 30 | |
| Inlet/outlet pipe chiller(inch) | 1 | |
| Water pump | Power(kw) | 0.75 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 180 |
| Dimension | mm | 1140*560*1250 |
Features
High efficiency and energy saving, the COP can reach 4.0.
Compact size, small occupied area.
Shell and tube type evaporator, no leakage risks.
14.5kw of cooling capacity, customization available.
Product Highlights
ACK's full range of air-cooled chillers all use compressors from internationally renowned brands, which are 20-30% more energy efficient than reciprocating compressors. They have the advantages of stable and reliable operation, high efficiency and low failure, low vibration and noise, easy maintenance, and a long service life.
The air-cooled chiller uses a shell and tube evaporator. In the refrigeration system, the refrigerant evaporates in the heat exchange tube, and the water flows on the shell side to improve the heat exchange efficiency. In addition, in order to maintain a stable operating temperature, the evaporator shell is covered with insulation material, and the heat exchange tube uses a high-efficiency seamless copper tube. The tube is slotted to form internal threaded fins to increase the heat exchange area with the refrigerant. Through this technology, the heat transfer area is doubled and the heat transfer efficiency is greatly improved.
FAQ
Q: Can The air-cooled chiller Be Customized ?
A: Of course, we will carefully customize the air cooling chiller according to your requirements, and then conduct in-depth analysis.Finally, we promise to meet your expectations for this customization.
Q: How To Guarantee The Quality Of water cooling chiller ?
|
|
