| Brand Name: | SZAGS |
| Model Number: | ACK-5 |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export wooden box |
| Payment Terms: | T/T, Western Union, MoneyGram |

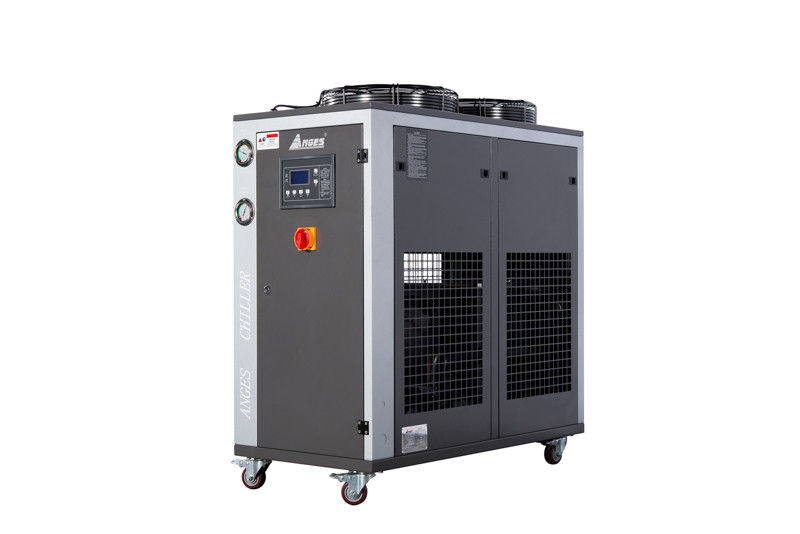

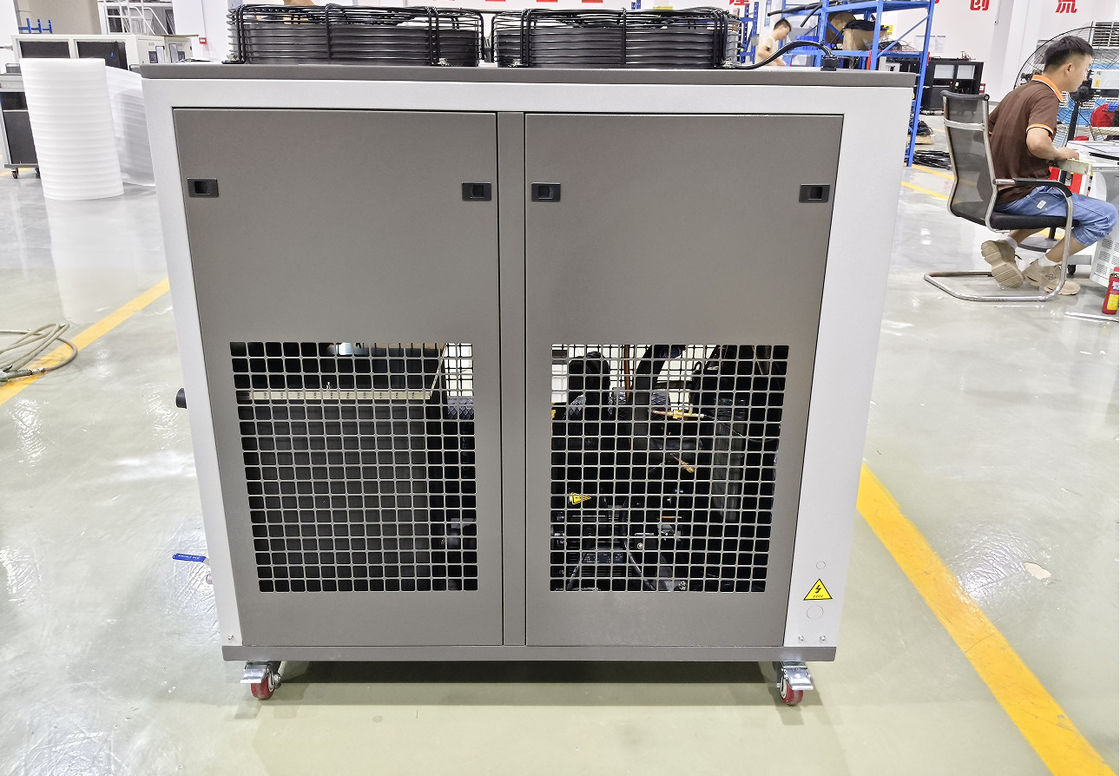

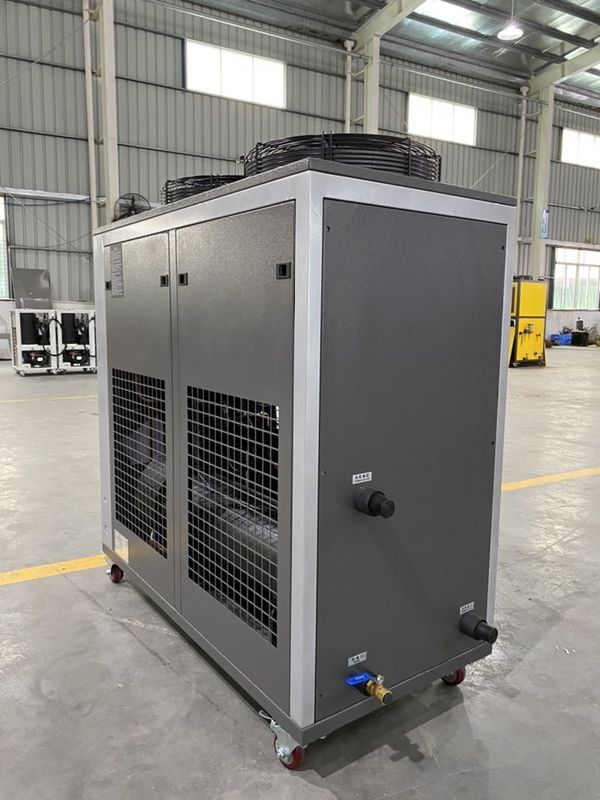

5Ton Industrial Air Cooled Water Chiller 18kW Scroll Type Glycol Chiller China Factory Supply
How does a chiller system work?
The chiller operates with two circulations: one involves the circulation of process water, while the other entails the circulation of refrigerant gas. Heat absorbed from the process is transferred to the refrigerant circulation, and then expelled to either air or water.
Technical Parameters of Industry Air-cooled Chiller
Model | ACK-5 | |
| nominal cooling capacity | kcal/h | 14964 |
| kw | 17.4 | |
| input power | kw | 5.53 |
| power supply | 3PH 440V 60Hz | |
| refrigerant | type | R407C |
| type of control | capillary | |
| compressor | type | hermeic scroll type |
| power(kw) | 4.4 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow (m3/h) | 6000 | |
| evaporator | type | shell and tube |
| fan power(kw) | 2.8 | |
| chilled fluid flow (m3/h) | 3 | |
| volume (L) | 30 | |
| inlet and outlet pipe diameter (inch) | 1 | |
| pump | power (kw) | 0.75 |
| lift(m) | 20 | |
| safety protection | compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 200 |
| Dimension. | mm | 1300*650*1450 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Air Cooled Water Chiller:
The air cooled chiller водяной охладитель, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.
Air cooled chiller is suitable for places with limited space or where sufficient cooling water cannot be provided. However, the cooling efficiency is affected by ambient temperature and humidity, so it is typically used in applications with lower heat loads. Each model is equipped with a range of safety features, including motor overload protection, phase loss and phase reversal alarms, anti-freeze thermostats, pressure gauges, and more. These chiller units demonstrate excellent performance and have a longer lifespan. Throughout the entire operating cycle, a series of steps based on the fundamental principles of heat exchange are followed. They are particularly suitable for industries that require precise control and regulation of chilled water temperature, allowing for precise control within the range of 3°C to 50°C, making them an important player in the modern industrial sector.
Working Principle of Water Chiller:
When the air cooled chiller starts, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure vapor. The refrigerant vapor is then sent to the condenser, where it undergoes heat exchange with the air. After releasing heat, it condenses into a liquid. The liquid refrigerant, after being depressurized by the expansion valve, enters the evaporator where it vaporizes again, absorbing heat from the cooled object. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.
Chiller Application:
Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.
Installation&Maintenance of SZAGZ Chiller
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
About SZAGZ Chiller service?
①24 hours Online support;
②Video technical support;
③Overseas third-party support available and etc.
|
|
