Place of Origin:
China
Brand Name:
ANGES/SZAGS
Certification:
CE/ISO9001
Model Number:
ACK-10(D)
Contact Us

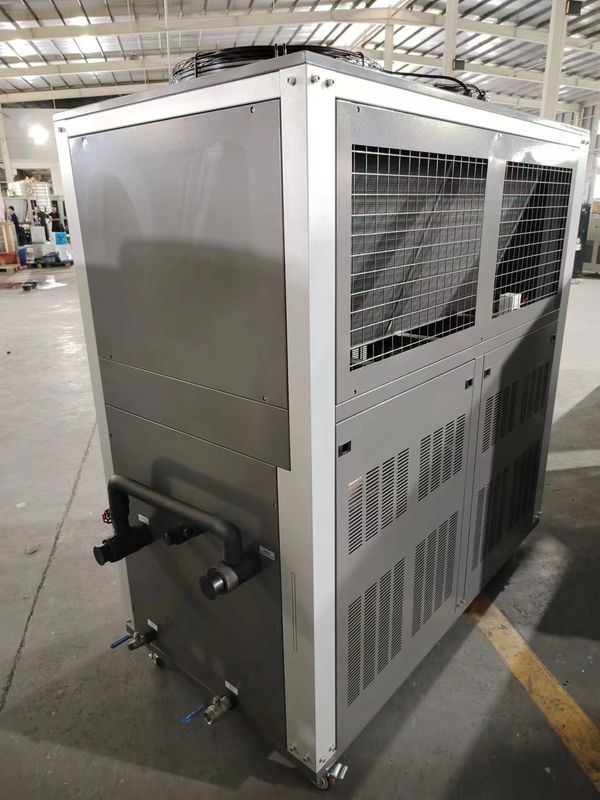

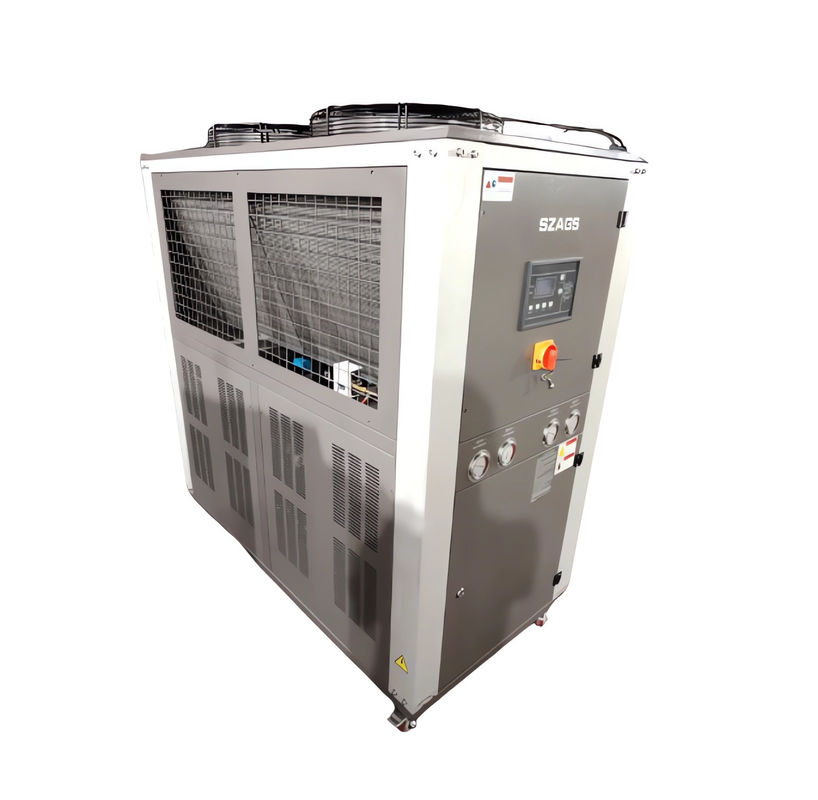

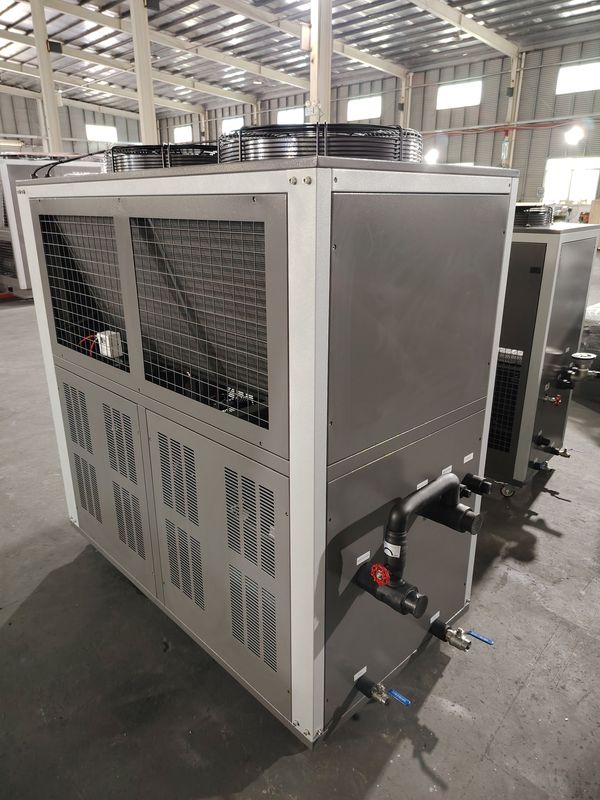

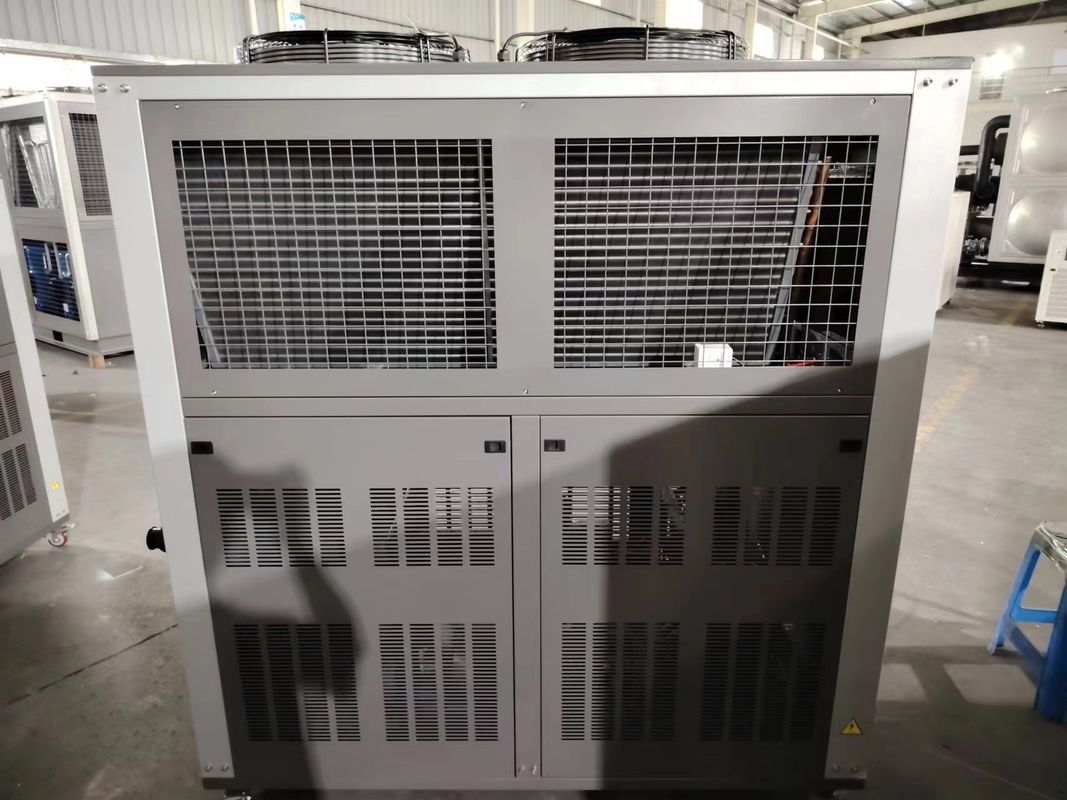

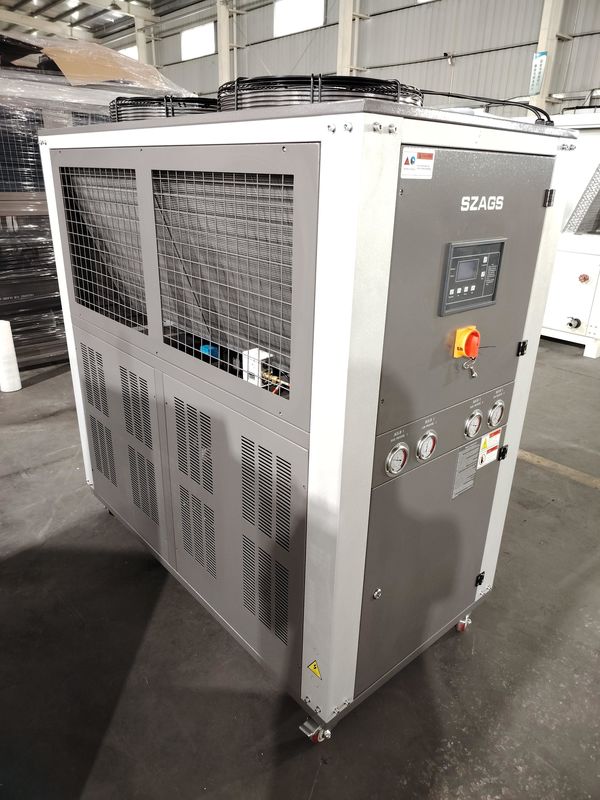

10 Ton Air Cooled Water Chiller 10HP Water Cooled Chiller Industrial Water Chiller High Efficiency Chiller System For Injection Molding MAchine
Air-cooled Chiller
Air-cooled industrial chillers from 1kw to 222kw equipped with world class components, including high efficiency scroll compressor. They use ambient air to cool the refrigerant to help keep your industrial processes running strong. Air-cooled chillers are stand-alone units and do not require any additional equipment to function.
Specification
|
Model Item |
ACK-10(D) | |
| nominal cooling capacity | kcal/h | 24940 |
| kw | 29 | |
| input power | kw | 11.22 |
| power supply | 3PH 380V 50HZ | |
| refrigerant | type | R407C |
| type of control | thermostatic expansion valve | |
| compressor | type | hermetic scroll |
| power(kw) | 8.8 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow(m3/h) | 10000 | |
| evaporator | type | shell and tube |
| chilled fluid flow(m3/h) | 5 | |
| volume(L) | 85 | |
| inlet and outlet pipe diameter(inch) | 1-1/2 | |
| pump | power(kw) | 1.5 |
| lift(m) | 20 | |
| safety protection | compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 500 |
| dimension | mm | 1530*780*1630 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Installation&Maintenance
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
About ANGES/SZAGS Chiller
1. All the chillers are provided with 12 months free maintenance service.
2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
3. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
4. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
5. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
FAQ
1.How does a chiller system work?
The chiller operates with two circulations: one involves the circulation of process water, while the other entails the circulation of refrigerant gas. Heat absorbed from the process is transferred to the refrigerant circulation, and then expelled to either air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
