| Brand Name: | Anges/SZAGS |
| Model Number: | ACK-40(F) |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export wooden box |
| Payment Terms: | T/T, Western Union, MoneyGram |

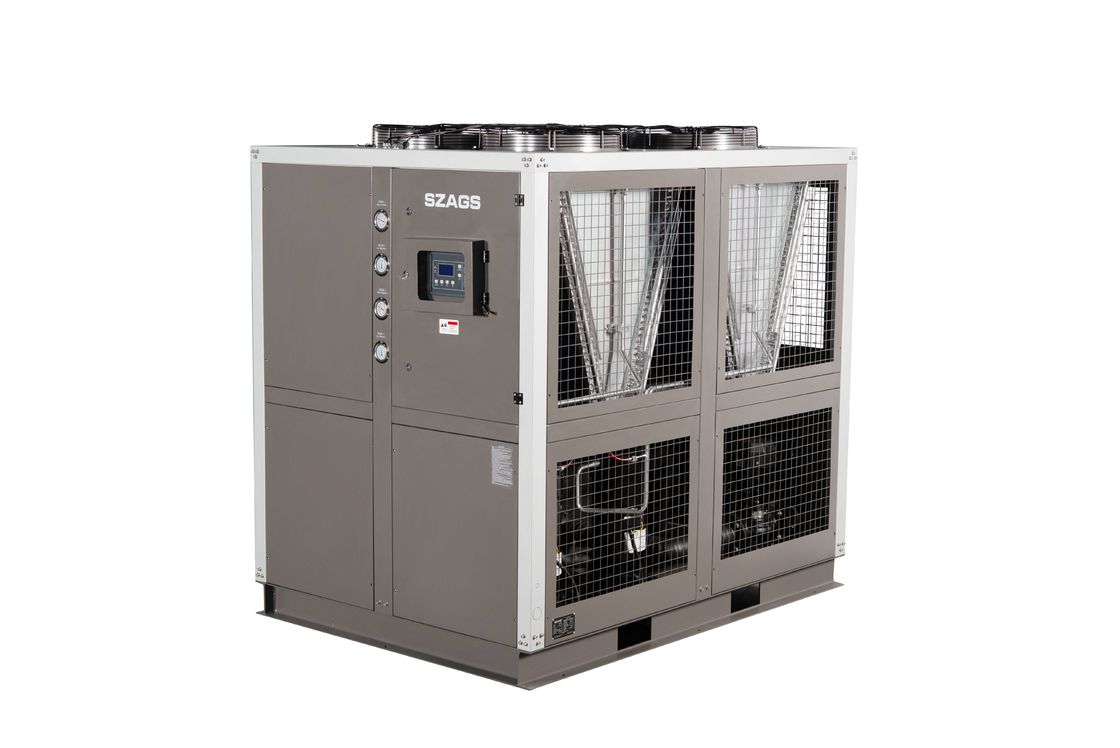

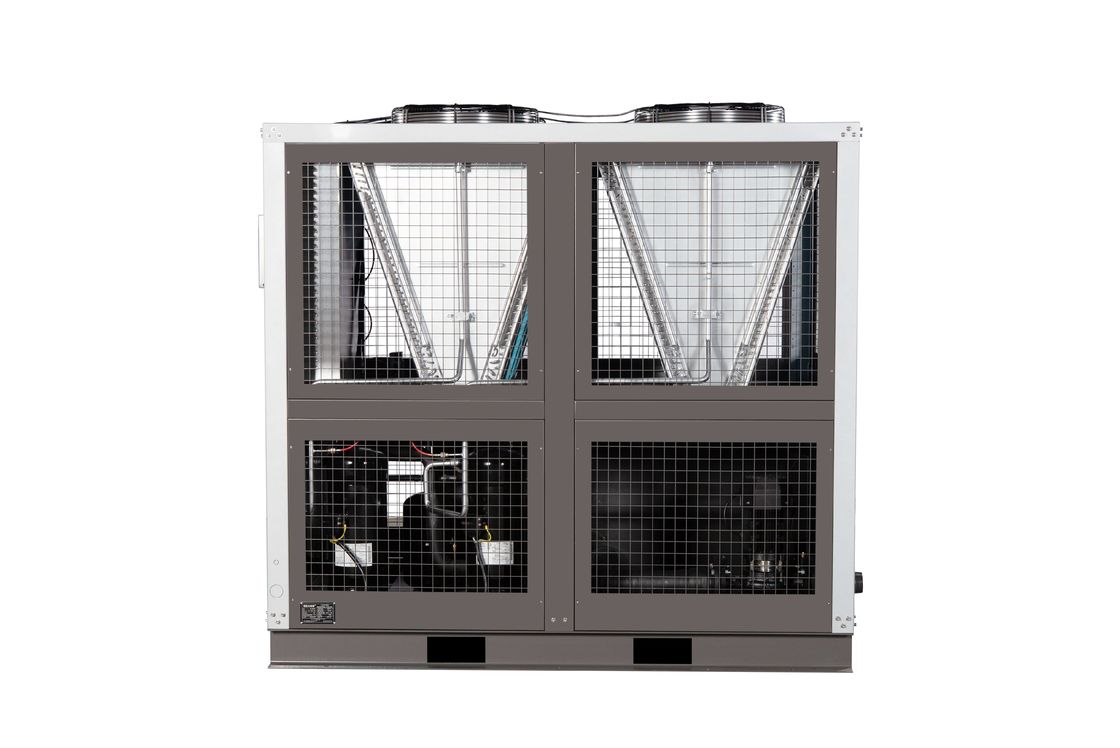

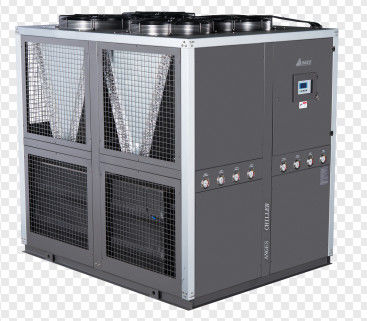

High Efficiency 120kW Industrial Air Cooled Water Chiller for Injection Molding and Mold Processing
In injection molding, maintaining a consistent cooling temperature is crucial for ensuring product quality and production efficiency. Our industrial chiller solutions are specifically designed for injection molding machines, offering reliable and efficient cooling solutions.
Improve Production Efficiency: Our chillers utilize advanced refrigeration technology to ensure precise and stable temperature control throughout the production process. This not only helps reduce cycle times but also enhances the operational efficiency of injection molding machines, thereby minimizing production costs.
Ensure Product Quality: Consistent cooling temperatures effectively prevent issues such as product deformation or instability caused by temperature fluctuations. With precise temperature control, our chillers ensure that every injection-molded product meets stringent quality standards.
Energy Efficiency and Environmental Sustainability: Designed for high efficiency and energy savings, our chillers not only reduce energy consumption but also promote environmental friendliness. By optimizing energy use, you can enhance production efficiency while fulfilling your corporate social responsibility.
Choosing our industrial chillers is not just an investment in production efficiency and product quality but also a guarantee of sustained development for your business. Contact us now to learn more about optimizing your injection molding processes!
Specification
Technical Parameters of Industrial Air-cooled Chiller
|
Model Item |
ACK-40(F) | |
| nominal cooling capacity | kcal/h | 103544 |
| kw | 120.4 | |
| input power | kw | 39.2 |
| power supply | 3PH 380V 50HZ | |
| refrigerant | type | R22 |
| type of control | thermostatic expansion valve | |
| compressor | type | hermetic scroll |
| power (kw) | 32.4 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| fan power(kw) | 2.8 | |
| cooling air flow (m3/h) | 40000 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 20.76 | |
| volume(L) | 240 | |
| inlet and outlet pipe diameter (inch) | 2-1/2 | |
| pump | power (kw) | 4 |
| lift (m) | 22 | |
| safety protection | Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 1250 |
| dimension | mm | 2100*1660*2100 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2. Working range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to use the chiller while the ambient temperature at or below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Application:
Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.
Scroll Compressor:
The entire range of Anges air cooled chillers utilizes high-efficient scroll compressors. The compressor serves as the heart of the entire refrigerant cycle system. The scroll compressor adopts a dual-flex design, ensuring tight sealing between the scroll discs. This design allows the scroll discs to separate radially and axially, allowing debris or liquid to pass through without damaging the compressor. This results in increased compressor lifespan, enhanced reliability, better liquid tolerance, and improved tolerance for impurities.
Shell and Tube Evaporator:
The air cooled chiller utilizes a shell and tube evaporator. In this system, the refrigerant evaporates inside the heat exchange tubes, while water flows on the shell side. To enhance the heat exchange efficiency, a 2mm thick baffle plate is installed on the shell side, causing the water to flow back and forth to create ice brine. Additionally, to maintain a stable operating temperature, the exterior shell of the evaporator is covered with insulation material.
For the heat exchange tubes, we employ high-efficiency seamless copper tubes. These tubes undergo a grooving process to form internal thread fins, thereby increasing the heat exchange surface area with the refrigerant. With this technology, the heat transfer area is doubled, significantly improving the heat transfer efficiency.
Finned Type Condenser:
By adopting a high-efficiency copper tube with aluminum finned type condenser, the air cooled chiller effectively dissipates heat. The finned structure increases the heat exchange surface area between the condenser and the surrounding environment, improving the heat dissipation efficiency. The excellent thermal conductivity of copper tubes, combined with the efficient heat dissipation characteristics of aluminum fins, ensures high efficiency during the cooling process
Additionally, the application of Hydrophilic aluminum foil fin provides an additional protective layer. They help prevent corrosion of the copper tubes in corrosive environments, thereby extending the lifespan of the condenser and maintaining optimal refrigeration performance.
About after-sales service?
①24 hours Online support;
②Video technical support;
③Overseas third-party support available and etc.
|
|
