| Brand Name: | SZAGS |
| Model Number: | HBC-50(F) |
| MOQ: | 1 |
| Price: | negotiated |
| Packaging Details: | plywood box |

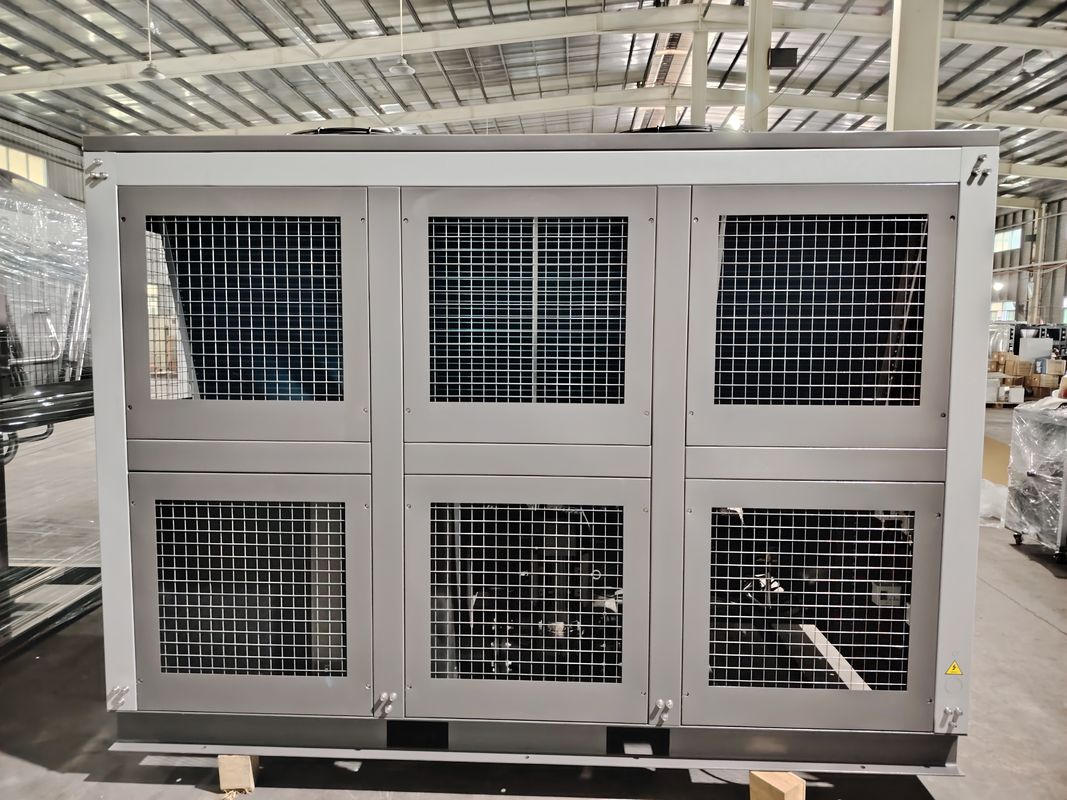

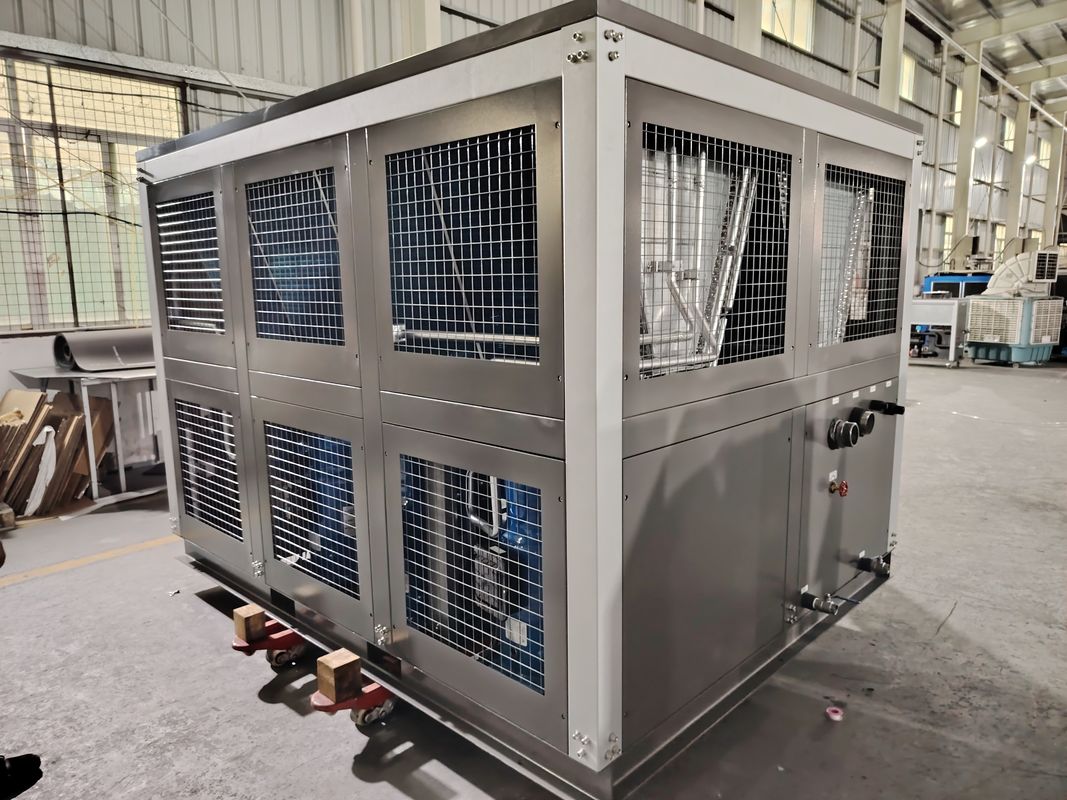

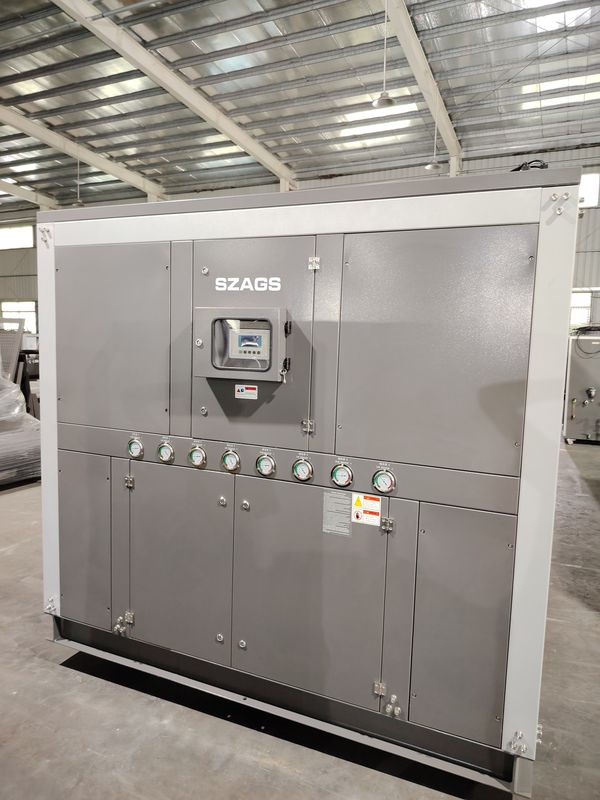

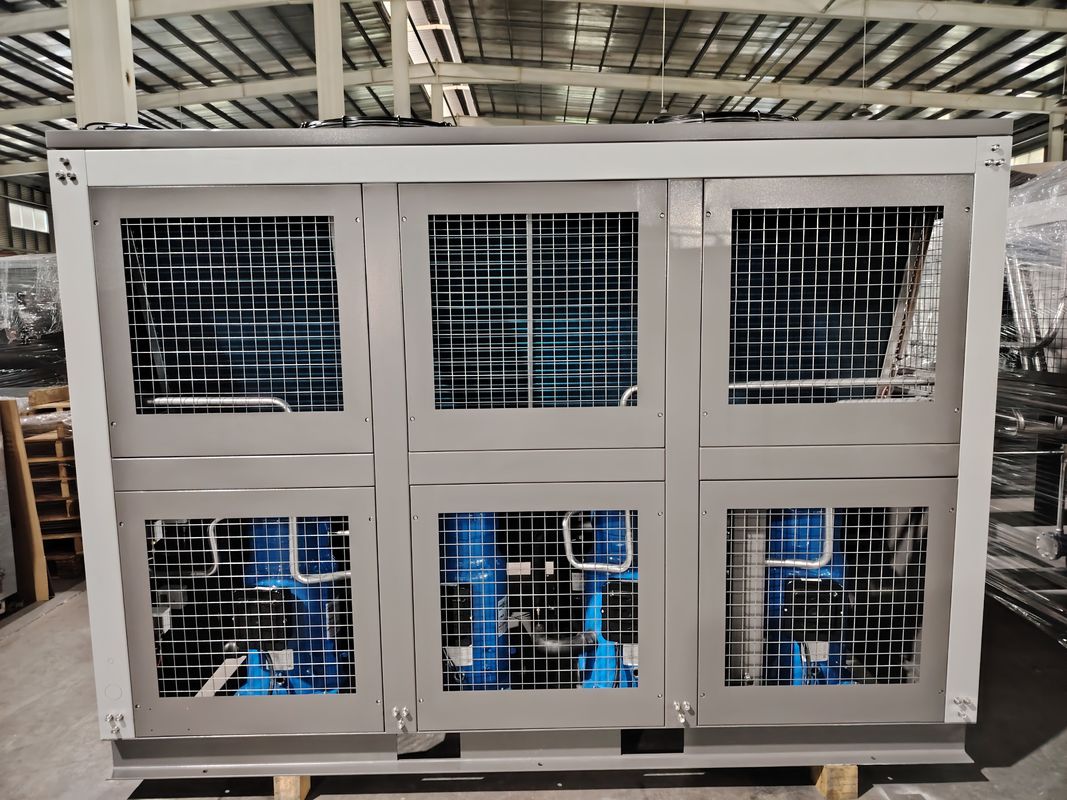

50ton/50HP Air cooled industrial chiller
Specification
|
Item Model |
HBC-50(F) | |
| Nominal cooling capacity | Kcal/h | 121191 |
| kw | 140.9 | |
| Input power | kw | 45.52 |
| Power supply | 3PH 220~480V 50/60HZ | |
| Refrigerant | Type | R22/407C/410A/134A |
| Type of control | capillary | |

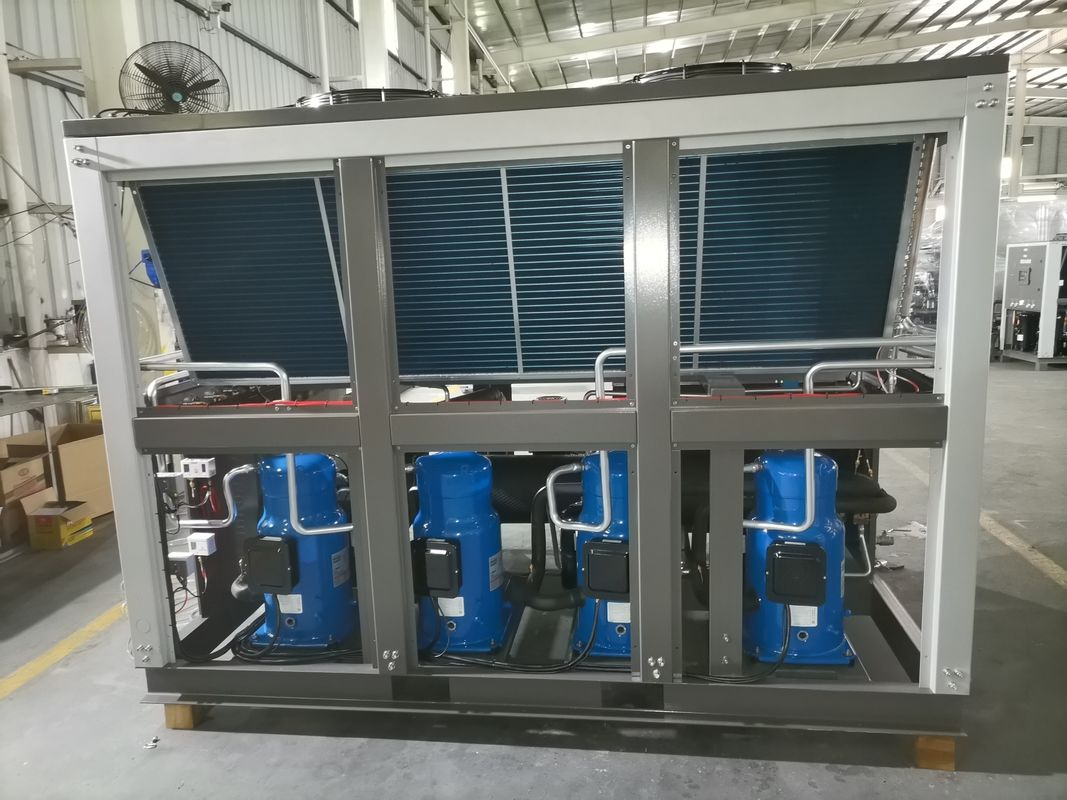

| Compressor | Type | Hermetic scroll |
| Power(kw) | 38.4 | |
| Condenser | Type | Finned copper tube + low noise outer rotor fan |
| Fan power(kw) | 3.12 | |
| Cooling air flow(m3/h) | 50000 | |
| Evaporator | Type | Shell and tube |
| Chilled fluid flow(m3/h) | 24.3 | |
| Volume(L) | 620 | |
| Inlet/outlet pipe caliber(inch) | 3" | |

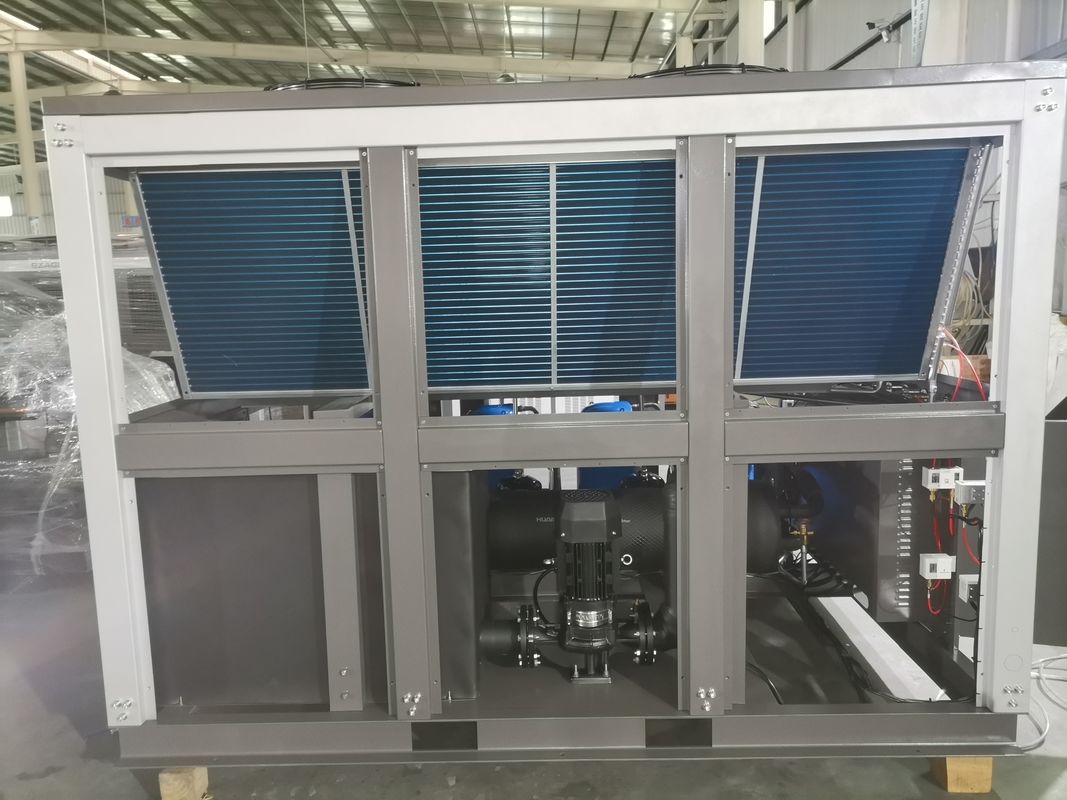

| Pump | Power(kw) | 4 |
| Flow (m3/h) | 24.3 | |
| Lift(m) | 22 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Weight | kg | 1450 |
| Dimension | mm | 2350*1760*2100 |
Why choose a chiller to cool the extrusion machine
THE AFTER-SALE SERVICE OF ANGES CHILLER!
FAQ
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.How can we do for chiller maintenance ?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
|
|
