| Brand Name: | ANGES |
| Model Number: | ACK-30（D） |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

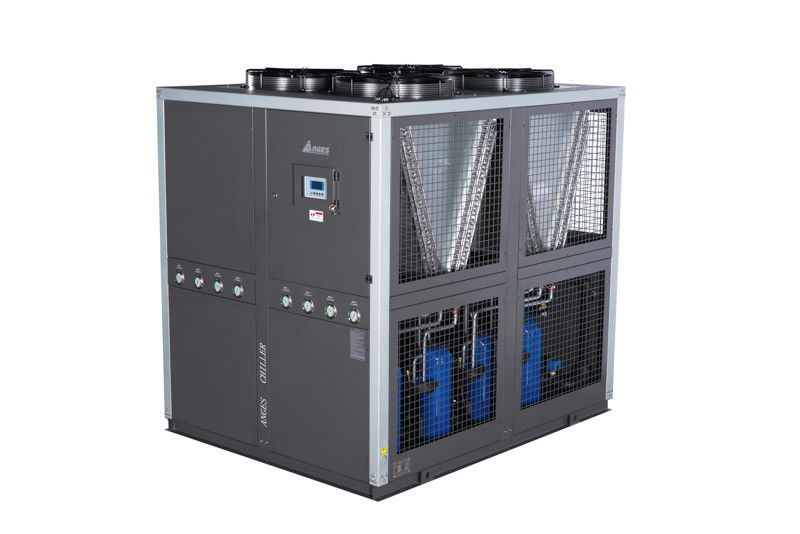

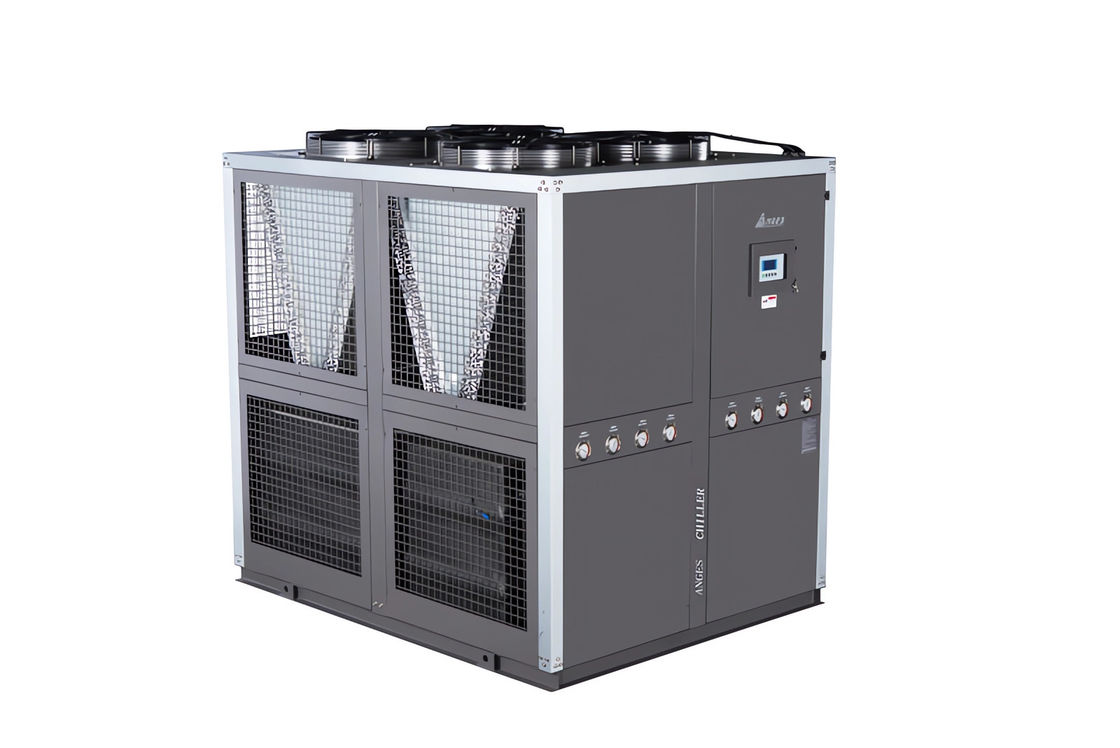

30 Ton Industrial Air Cooled Chiller Units For Plastic Extrusion Machinery Recirculating Water Chiller
Once a chiller is integrated with an extrusion machine, it operates by circulating cold water through the extrusion system. This chilled water efficiently removes heat from the extruded material as it exits the die. By rapidly cooling the material, the chiller ensures precise shaping and dimensional stability of the extruded product, enhancing overall production efficiency and quality.
Specification
|
Item Model |
ACK-30(D) | |
| Nominal cooling capacity |
Kcal/h | 79464 |
| kw | 92.4 | |
| Input power | kw | 28.96 |
| Power supply | 3PH 380V 50HZ | |
| Refrigerant |
Type | R22 |
| Type of control | Expansion valve | |
| Compressor |
Type | Hermetic scroll |
| Power(kw) | 24.92 | |
| Condenser |
Type | Finned copper tube + low noise outer rotor fan |
| Power(kw) | 1.84 | |
| Cooling air flow(m3/h) | 30000 | |
| Evaporator |
Type | Shell and tube |
| Chilled fluid flow(m3/h) | 15.93 | |
| Volume(L) | 220 | |
| Inlet/outlet pipe caliber(inch) | 2-1/2 | |
| Pump |
Power(kw) | 2.2 |
| Flow (m3/h) | 2.2 | |
| Lift(m) | 20 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Weight | kg | 1150 |
| Dimension | mm | 2000*1480*1890 |
Why choose the air-cooled chiller to cool the extrusion machine
THE AFTER-SALE SERVICE OF ANGES CHILLER!
|
