Place of Origin:
China
Brand Name:
ANGES
Model Number:
ACK-50（F）
Contact Us

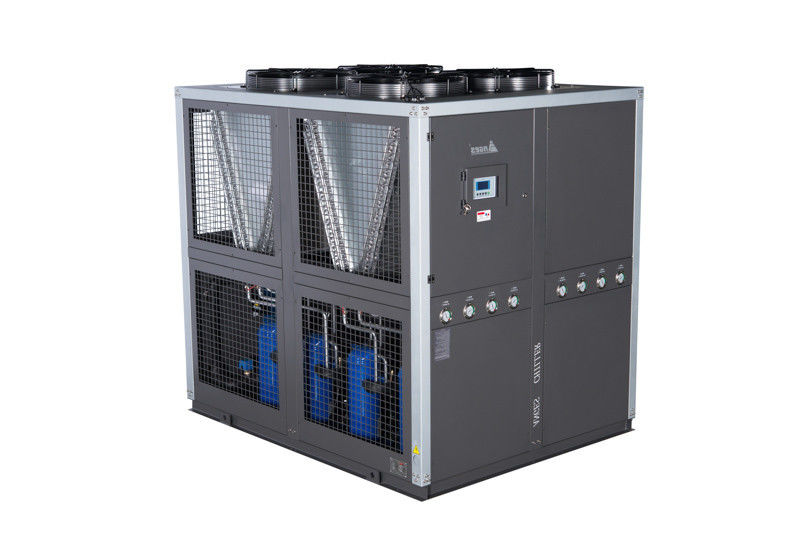

50Air Cooled Scroll Chiller 50hp Water Chiller Portable Chiller for UV Lamps Printers
The cooling methods of UV lamps are divided into water cooling and air cooling.
1. Water cooling system refers to the use of cooling water to cool the temperature of LED lights. Its principle is to use water (or antifreeze) as the cooling medium to take away the heat of high-temperature components.
2. Air cooling uses fan blowing or suction cooling. Its principle is to use air as the cooling medium. The high-speed flowing air directly takes away the heat of high-temperature parts.
Injection Molding Chiller Specification
|
Model Item |
ACK-50(F) | |
| Nominal cooling capacity | Kcal/h | 125904 |
| kw | 146.4 | |
| Input power | kw | 43.92 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 36.8 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 3.12 | |
| Cooling air flow(m3 /h) | 50000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 25.24 | |
| Tank volume(L) | 345 | |
| Inlet/outlet pipe chiller(inch) | 3 | |
| Water pump | Power(kw) | 4 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 1550 |
| Dimension | mm | 2350*1760*2100 |
Advantages and Disadvantages of UV Printer Water Cooling
There is no wrapping on the upper part of the lamp, which will not affect the heat dissipation effect.
At the same time, it ensures that the scattering angle of the light beam is expanded to 360 degrees to improve the curing efficiency;
the cooling is uniform, the effect is good, the work is reliable, not affected by the environment, and the noise is low.
complex structure, high cost, high failure rate and complicated maintenance.
Because there are energy-consuming devices such as water pumps and water tanks, the power loss is large.
Advantages and Disadvantages of UV Printer Air Cooling
fewer air-cooled parts, simple structure, light weight, low manufacturing cost, high power utilization, no leakage, freezing, scaling and other faults;
fast curing speed, strong energy, easy use and maintenance, and good environmental adaptability. Warm-up time is short after startup.
uneven cooling surface, high heat load, affecting the stable use of the drying lamp, large power consumption of the fan and loud noise during operation.
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity, it can be calculated roughly according to production capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
