The composition of laser chiller is composed of compressor, condenser, throttling device, evaporator, water tank and water pump and other accessories.

Laser Chiller Specification

Model Item		AL-5W
Nominal cooling capacity	Kcal/h	12470
	kw	14.5
Input power	kw	5.33
Power supply	3PH~380V/50HZ
Refrigerant	Type	R22
	Type of control	Capillary
Compressor	Type	Hermetic scroll type
	Power (kw)	4.4
Condenser	Type	Finned copper tube+low noise outer rotor fan
	Power(kw)	0.38
	Cooling air flow	5000
Evaporator	Type	Water tank with coil
	Chilled water flow	2.50
	Tank volume(L)	60
	Inlet/outlet pipe chiller(inch)	1
Water pump	Power(KW)	0.55
	Lift(m)	22
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight	kg	175
Dimension	mm	11405601250

The difference between laser chiller and ordinary chiller

Compared with ordinary chiller, the volume is more compact, the temperature control accuracy is higher, can reach ±0.1 ° C,
and improves the traditional liquid storage, does not need to be stored in the water tank,
and can be placed inside the laser equipment for use.

Working principle of laser chiller

The compressor compresses the superheated steam drawn from the evaporator into a high temperature and high pressure gas,
and condenses the heat to the condenser side by side into a high pressure liquid.
After the pressure reduction by the throttling device,
the low-temperature and low-pressure supercooled liquid passes through the evaporator

Featurers for air cooled laser chiller

the host selected original authentic machine, built-in safety protection, low noise, power saving and durable.
all stainless steel pump, high head, especially suitable for conveying high water quality requirements of the industry.
the electrical parts are original authentic to ensure stable machine work, long life.
super (high, low) and mild flow dual protection, equipped with flow protection switch, when the pump failure or water is too little, flow switch operation, automatically disconnect the laser power supply, to prevent the laser head water shortage overheating, or even rupture.
304 stainless steel evaporator, to prevent pure water in the transport process to produce solid and other metal impurities.

portable 5HP Laser Cutting Machine Chiller For Sheet Metal Cutting 0

Tags:

Air Cooled Laser Chiller Unit

Industrial Laser Chiller Unit

Portable Laser Chiller Unit

Products Details

Home > Products >

Laser Chiller Unit

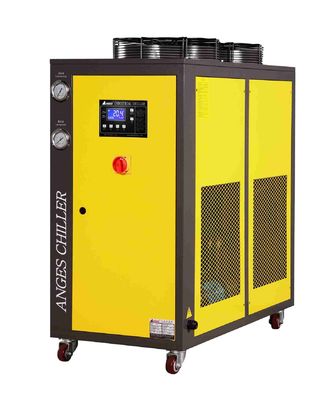

portable 5HP Laser Cutting Machine Chiller For Sheet Metal Cutting

All Category

Industrial Water Chiller

Portable Water Chiller

Water Cooled Chiller

Screw Type Chiller

Air Cooled Screw Chiller

Water Cooled Screw Chiller

Water Cooled Central Chiller

Inverter Chiller

Air Cooled Inverter Chiller

Inverter Water Chiller

Glycol Chiller

Portable Glycol Chiller

Laser Chiller Unit

Heating And Cooling Chiller

Water Cooled Industrial Chiller

Industrial Chiller Integrated System

Cooling Towers

Mould Temperature Controller

Low Temperature Chiller

portable 5HP Laser Cutting Machine Chiller For Sheet Metal Cutting

Brand Name:	ANGES
Model Number:	5hp
MOQ:	1
Packaging Details:	Plywood case
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

ANGES

Model Number:

5hp

Cooling Capacity:

14.5kw

Compressor Type:

Hermetic Scroll Compressor

Product Name:

Air Cooled Chiller

Evaporator:

Plate Heat Exchanger , Tank With Coil, Shell And Tube

Water Tank:

300L 304# Stainless Steel

Voltage:

380/415V 50/60HZ

Condition:

Brandnew

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available

Warranty:

12 Months

Refrigerant:

R22/R404a/R407c/R134a

Minimum Order Quantity:

Packaging Details:

Plywood case

Delivery Time:

15 days

Payment Terms:

T/T, L/C

High Light:

5HP Laser Cutting Machine Chiller

Portable Chiller For Laser Machine

Sheet Metal Fiber Laser Chiller
