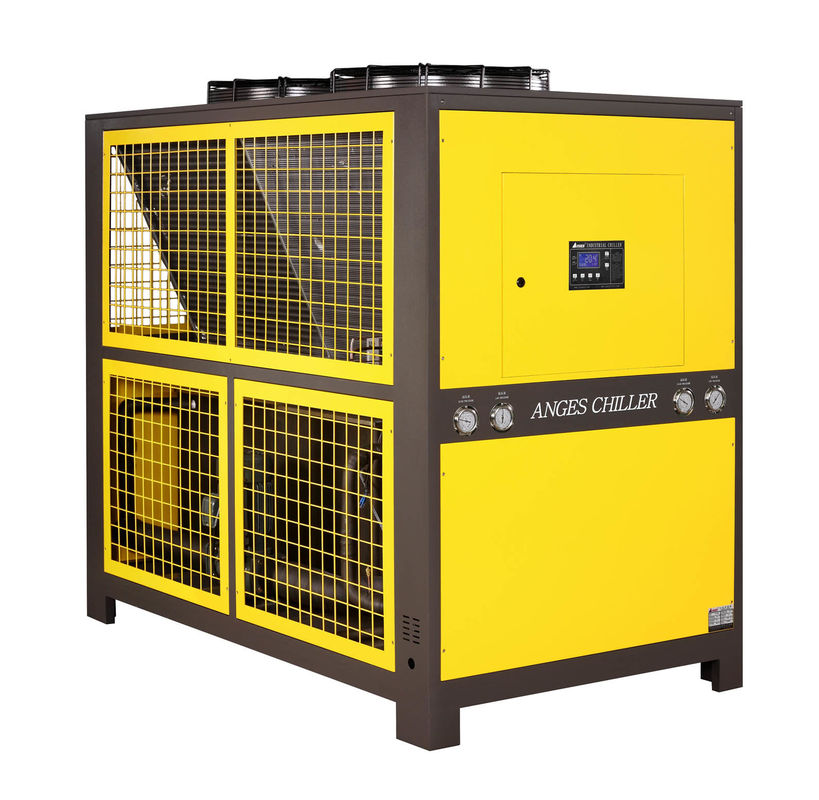

Small Industrial Laser Chiller Unit Air Cooled Chiller Portable
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | 1hp |
| Minimum Order Quantity | 1 |
| Packaging Details | Plywood case |
| Delivery Time | 15 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Name | Air Cooled Laser Chiller | Cooling Capacity | 3.42kw |
|---|---|---|---|
| Total Input | 1.41kw | Compressor Power | 0.95kw |
| Evaporator | S.S 304 Tank With Coil | Condenser | Air-cooled Fin Condenser |
| Condition | Brandnew | Warranty | 12 Months |
| Refrigerant | R22/R404a/R407c/R134a | Application | For Laser Tube Cooling,Laser Cutting,Laser Engraving/cutting Machine,Hospital,Leaser / CNC / Welding Machine / Food Machine |
| High Light | Industrial Laser Chiller Unit,Laser Chiller Unit Small,Portable Air Cooled Chiller |
||
Product Description
Air Cooled Chiller Portable Laser Chiller Small Industrial Chiller Laser Cutter Chiller Industrial Laser Chiller
What is a laser chiller?
In the process of laser processing equipment operation, the chiller through the laser temperature control, keep the laser cavity without thermal deformation, light power stability and ensure the quality of the beam, improve the service life of the laser and cutting accuracy, this chiller is also called laser chiller.
Laser chiller is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.
Air cooled small laser chiller spefification
|
Item |
AL-1W | |
| Nominal cooling capacity | Kcal/h | 2941.2 |
| kw | 3.42 | |
| Input power | kw | 1.41 |
| Power supply | 1PH~220V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Capillary | |
| Compressor | Type | Hermetic rotary type |
| Power (kw) | 0.95 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.09 | |
| Cooling air flow | 1000 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow | 0.59 | |
| Tank volume(L) | 16 | |
| Inlet/outlet pipe chiller(inch) | 1/2 | |
| Water pump | Power(KW) | 0.37 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 73 |
| Dimension | mm | 580*460*870 |
Featurers for air cooled laser chiller
- Built with world class brands component, such as Panasonic,Copeland and Danfoss compressors,Schneider electric accessories.
- Laser chiller has accurate temperature control with water temperature accurate ± 0.1 ℃
- High efficient evaporator ,condenser,and low noise outer rotor fan, without cooling water system, save water.
- The packaged water cooled chiller contains water tank and the pump and all necessary components. It can work after connecting the production lines with water pipes, easier installation and lower installation cost.
- This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Benefits of an industrial water chiller
A.Industrial water chiller can reduce downtime and improve productivity.
B.Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ±1 ℃.
C.Industrial chiller is usually closed-loop systems, which can save water through recirculation cooling.
D.Water chiller applied in Plastic and Rubber industry.It can accurately control the molding temperature and shorten the molding cycle.
E.Decrease equipment depreciation and degradation to cut down on operating expenditures.
A.Industrial water chiller can reduce downtime and improve productivity.
B.Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ±1 ℃.
C.Industrial chiller is usually closed-loop systems, which can save water through recirculation cooling.
D.Water chiller applied in Plastic and Rubber industry.It can accurately control the molding temperature and shorten the molding cycle.
E.Decrease equipment depreciation and degradation to cut down on operating expenditures.
Water quality and material requirements for laser chiller water systems
The waterway inside the laser is narrow, if there are impurities in the circulating water, it is easy to block the waterway, so the laser has a high requirement on the water quality of the circulating water of the chiller. The water system of laser chiller must be made of stainless steel to prevent rust and other impurities. At the same time, it is recommended to use distilled water or clean purified water as the circulating water of cooling time.
