| Brand Name: | ANGES |
| Model Number: | AC-60（F） |
| Price: | Negotiation |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

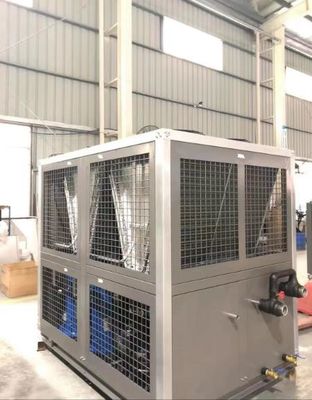

60ton Water Chiller Price Air Cooled Chiller glycol water chiller Modular Chiller Plant air cooled lab chiller 60hp
Air-cooled industrial chiller units with cooling capacities from 3 to 185 kW (0.85 to 52.6 tons) are packaged and portable and include stainless steel #304 tanks, pumps, and popular plastic process cooling. In the plastic continuous production process, the chiller can accurately control the molding temperature, shorten the molding cycle, increase product quality, improve production efficiency. It usually requires a water temperature of 10-25 degrees, and cooling towers cannot meet this temperature.
Injection Molding Chiller Specification
|
Model Item |
AC-60(F) | |
| Nominal cooling capacity | Kcal/h | 158928 |
| kw | 184.8 | |
| Input power | kw | 57.52 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 49.84 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 3.68 | |
| Cooling air flow(m3 /h) | 60000 | |
| Evaporator | type | |
| Chilled water flow(m3 /h) | 31.86 | |
| Tank volume(L) | 750 | |
| Inlet/outlet pipe chiller(inch) | 3 | |
| Water pump | Power(kw) | 4 |
| Lift(m) | 23 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 1850 |
| Dimension | mm | 2700*2200*2000 |
Anges chiller Application Range.
Benefits of plastic process chiller applications
1. Ability to maintain constant and accurate control of plastic mold temperature.
2. Cooling plastic products, rapid molding, shorten the production cycle, improve production efficiency.
3. Accurate temperature control ability, cold water temperature can be accurate to ±1, to ensure the highest quality of the final product.
4. High cooling efficiency, no waste of water compared with cooling tower.
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity, it can be calculated roughly according to production capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
What can we do for the Chiller maintenance?
Tip 1: Keep Tubes Clean
Tip 2: Ensure a Leak-free Unit
Tip 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Tip 4: Analyze Oil and Refrigerant
|
|
