8Tr Air Cooled Scroll Portable Water Chiller Shell And Tube Evaporator

8Tr Air Cooled Scroll Portable Water Chiller Shell And Tube Evaporator

Air Cooled Scroll Portable Water Chiller

Tube Evaporator Portable Water Chiller

3PH Air Cooled Scroll Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

HBC-8(D)

Contact Us

Request A Quote
Product Details
Compressor:
Scroll Type
Cooling Capacity:
8ton
Type:
Air-cooled Type
Evaporator:
Shell And Tube
Voltage:
3PH~220V/380/415V~50HZ/60HZ
Condition:
Brandnew
Warranty:
12 Months
Application:
Welding /Plastic & Rubber / Chemical Etc / Welding
Temperature Range:
5℃ ~ 30℃
After-sales Service Provided:
Video Technical Support,Online Support,Overseas Third-party Support Available
Payment & Shipping Terms
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

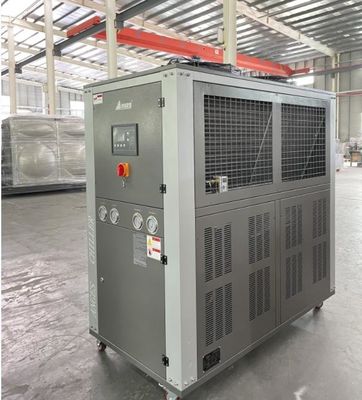

Portable Water Chiller 8Tr Air Cooled Scroll Chiller Supplier Energy Efficient Chiller Industrial Chiller Suppliers

What's the water chiller for?
Portable air-cooled chiller can keep your equipment at a safe working temperature, and cool parts in the process, widely used in plastic rubber, food and beverage, pharmaceutical chemistry, ultrasonic cooling, printing, electroplating, pharmaceutical and other industrial processes need chiller services.
The Angus Portable air-cooled Scroll Refrigerator has a cooling capacity of 9 to 180 kW (2.5 to 51 tons) and is suitable for indoor or outdoor installation. These units are complete and include stainless steel 304 water tank, pump, stable shell and tube evaporator and axial flow fan.


Portable Chiller Specification

Model

HBC-8(D)
nominal cooling capacity kcal/h 19522
  kw 22.7
input power kw 8.55
power supply 3PH/380V/50HZ
refrigerant type R410a
  type of control Expansion valve
compressor type hermetic scroll
  power(kw) 6.57
condenser type finned copper tube + low noise outer rotor fan
  cooling air flow(m3/h) 8000
evaporator type Shell and tube
  chilled fluid flow(m3/h) 3.91
  volume(L) 120
  inlet and outlet pipe diameter (inch) 1-1/2
pump power (kw) 1.5
  lift(m) 20
safety protection compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing
weight kg 350
dimension mm 1530*780*1630


Portable Chiller Features



1. Portable air-cooled scroll chillers use in small to medium cooling loads. Typically, available for 9 to 180 kW (2.5 to 51 tons) for single chiller unit.

2. Adopting high-efficiency and energy-saving scroll compressors of world class grade brands.

3. High-quality copper tube fin condensers and high-efficiency heat exchanger shell in tube evaporators, high cooling efficiency, stable performance and low noise.

4. The chiller refrigerator is equipped with multiple safety protection functions, such as phase sequence protection, flow protection, high and low voltage protection and overheating protection. High reliability, low failure rate, long service time.

5. This portable air chiller design is very compact,build in stainless steel water tank and water pump,easy for installation and operation.

6. This chiller uses precise digital temperature controller with LCD display, high temperature-control precision of ±1℃, convenient temperature setting.



What we will do before chiller delivery ?


1. After industrial chiller assembly, we will charge nitrogen for pressure maintaining testing for 24hrs, to check whether there is leakage in the chiller cooling system.
2. Drain the nitrogen,vacuum the chiller system and set up parameters, then power on chiller and charge refrigerant at the same time.
3. Debug and test the chiller unit.
4. After the chiller commissioning, cleaning and labelling chiller unit, then have pre-delivery inspection before packing with plywood cases to to ensure that the chiller can be in good condition during transit.


How to select the model of the chiller ?


1. We need to know the heat load of your process or chiller cooling capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 139 2379 1048.



Air cooled industrial chiller installation and maintenance



Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.



Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
