| Brand Name: | ANGES |
| Model Number: | HBC-15 |
| Price: | Negotiation |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

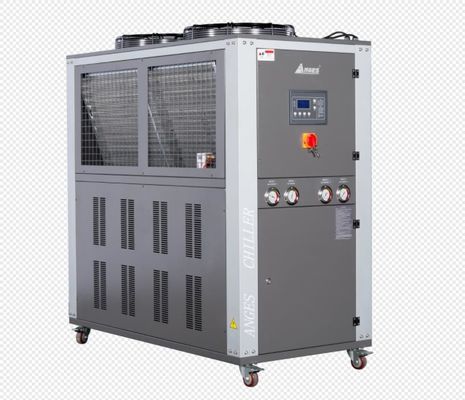

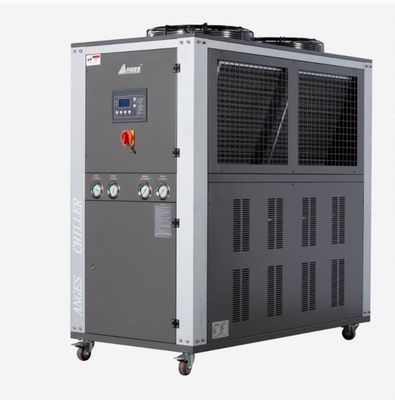

12hpAir Cooled Water Chiller 12Ton Injection Molding Chiller portable chiller for Plastic Industry mold cooling chiller
Injection Molding Chiller Specification
|
Model |
HBC-12 | ||
| nominal cooling capacity | kcal/h | 30298 | |
| kw | 35.2 | ||
| input power | kw | 12.34 | |
| power supply | 3PH/380V/50HZ | ||
| refrigerant | type | R410a | |
| type of control | Expansion valve | ||
| compressor | type | hermetic scroll | |
| power(kw) | 9.92 | ||
| condenser | type | finned copper tube + low noise outer rotor fan | |
| cooling air flow(m3/h) | 12000 | ||
| evaporator | type | Shell and tube | |
| chilled fluid flow(m3/h) | 6.07 | ||
| volume(L) | 200 | ||
| inlet and outlet pipe diameter (inch) | 2 | ||
| pump | power (kw) | 1.5 | |
| flow rate(m3/h) | |||
| lift(m) | 20 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 530 | |
| dimension | mm | 1530*780*1630 | |
Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃, Outlet chilled fluid temperature: 12℃.
Inlet cooling air temperature: 30℃, Outlet cooling air temperature:35℃.
The temperature range of chilled fluid is from 5℃ to 30℃.
The air cooled chillers are better to run while the ambient temperature is below 35°C.If not, the chillers will have high pressure alarm.Air-cooled chillers designed for high ambient temperatures are excluded.
Benefit of Plastic Process Chiller Applications
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity, it can be calculated roughly according to production capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
How to ensure your product with good quality?
1. Since 2004, we specialize in the production of industrial chiller, located in Shenzhen, China, our quality priority. All products go through a rigorous multi-inspection process to give customers multiple guarantees, and most accessories are made from world-class brands such as Danfoss, Copeland, Schneider Electric Components, etc.
2. After the installation of the industrial chiller, we will fill nitrogen for 24 hours of pressure maintaining test to check whether there is leakage in the cooling system of the chiller.
3. During the chiller test, we will provide test videos and pictures.
4. After the completion of testing and commissioning of the chiller, the chiller unit shall be cleaned and labeled, and then inspected before leaving the factory. The chiller shall be packed with plywood to ensure that the chiller is in good condition during transportation.
|
|
