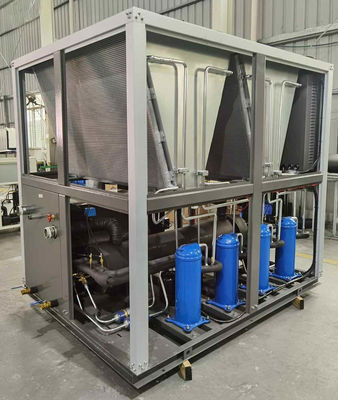

40ton chiller equipment 40Ton process scroll type water chiller for Industrial process cooling machince
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | ACK-40（F） |
| Price | Negotiation |
| Packaging Details | Plywood case |
| Delivery Time | 10-35 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 units/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Air Cooled Type | Capacity | 40HP |
|---|---|---|---|
| Compressor Type | Scroll Type | Refrigerant | R410a |
| Pump | Included 2 Bar- 4 Bar | Water Tank | Included 240L |
| Voltage | 3PH~220V/380/415V~50HZ/60HZ | Condition | Brandnew |
| Dimension(l*w*h) | 2100*1660*2100 | Weight | 1250kg |
| Compressor Power | 40HP | Compressor | Panosonic/Danfoss/Hanbell/Copeland |
| Temperature Range | 5℃ ~ 30℃ | Application | Industrial Cooling Solutions,Plastic & Rubber / Chemical Etc / Air-conditioning |
Product Description
40ton air cooled industrial chiller 40 HP Inverter Water Chiller industrial chiller machinecooling systems chillers
Product Description for 40HP 40ton 120.4kw Industrial Air Cooled Scroll Glycol Water Chiller for Brewery Fermenting Tanks for Beverage Milk Cooling System with CE
-
Product Name: Industrial air coolef scroll type chiller
-
Cooling capacity: 120.4kw/50hp
-
Output temp. :5-35C
-
Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
-
Color: grey or customized
-
Refrigerant: R22/R407C/R134a/R410a/R404a
-
Compressor:Hermetic scroll type,world famous brand compressors from Copland, Panasonic etc
Injection Molding Chiller Specification
|
Model Item |
ACK-40(F) | |
| Nominal cooling capacity | Kcal/h | 103544 |
| kw | 120.4 | |
| Input power | kw | 39.2 |
| Power supply | 3PH~220V/60HZ | |
| Refrigerant | Type | R22 |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 32.4 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 2.8 | |
| Cooling air flow(m3 /h) | 40000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 20.76 | |
| Tank volume(L) | 240 | |
| Inlet/outlet pipe chiller(inch) | 2-1/2 | |
| Water pump | Power(kw) | 4 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 1250 |
| Dimension | mm | 2100*1660*2100 |
Anges chiller Application Range.
- Electroplating industry: Control plating temperature, increase the density and smoothness of the plated parts.
- Machinery industry: Control the pressure oil temperature of the oil pressure system.
- Construction industry: chilled water for concrete.
- Vacuum coating: Control the temperature of the vacuum coating machine.
- Food industry: Controlling the temperature of fermented foods.
- Pharmaceutical industry: Controlling the temperature control of fermented drugs.
Benefit of Plastic Process Chiller Applications
- 1. The ability to maintain constant and precise control of the plastic molds temperature.
- 2. Cooling plastic products, fast shaping, reduce production cycle,improve production efficiency.
- 3. Accurate temperature control capability, cold water temperature can be accurate to ±1, to ensure the highest quality final products.
- 4. High cooling efficiency, and no waste of water comparing with the cooling tower.
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity, it can be calculated roughly according to production capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
FAQ
1.how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us? Industrial Chiller
why should you buy from us not from other suppliers? We are a chiller manufacture , began to produce chiller in 2004, as long as the production of industrial chiller, we are very mature technology and perfect after-sales guarantee,We have own development team , industry leading technology , multi-year production experience, fine technology, superior quality, reasonable price , and the various specification can be made according to customers request.
3.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Type: T/T,L/C,Western Union;
