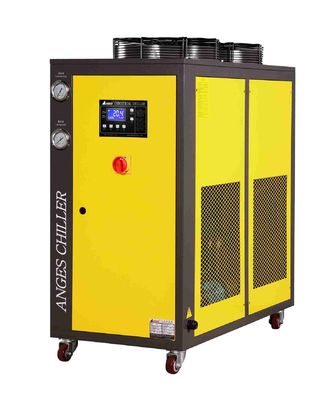

8hp Laser Chiller Unit Portable Small Laser Cutting Chiller
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | 8hp |
| Minimum Order Quantity | 1 |
| Packaging Details | Plywood case |
| Delivery Time | 15 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Laser Chiller | Type | Air-cooled Type |
|---|---|---|---|
| Cooling Capacity | 29kw | Compressor Type | Hermetic Scroll Compressor |
| Compressor Brand | Panasonic | Total Input Power | 11.2kw |
| Evaporator | Plate Heat Exchanger Or Tank With Coil Or Shell And Tube | Condenser | Finned Copper Tube And Low Noise Outer Rotor Fan |
| Warranty | 12 Months | Refrigerant | R22/R404a/R407c/R134a |
| Pump | 2 To 4bar | Pump Power | 1.5kw |
| Flow Rate | 8m³/hr | Application | For Laser Tube Cooling,Laser Cutting,Laser Engraving/cutting Machine,Leaser / CNC / Welding Machine / Food Machine |
| High Light | 8hp Laser Chiller Unit,Laser Chiller Unit Portable,Small laser cutting chiller |
||
Product Description
Portable Chiller Laser Chiller Laser Cutting Chiller Laser Welding Machine Laser Generator Chiller Small Laser Chiller
Laser chiller
In the long running process of laser equipment, the laser generator will constantly produce high temperature. If the temperature is too high, the normal operation of the laser generator will be affected, so the laser chiller is needed for cooling and temperature control.
Lasers is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.
Portable Chiller Specification
| Item | AL-10W(D) | |
| Nominal cooling capacity | Kcal/h | 24940 |
| kw | 29 | |
| Input power | kw | 11.22 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Capillary | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 8.8 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.92 | |
| Cooling air flow | 10000 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow | 5 | |
| Tank volume(L) | 200 | |
| Inlet/outlet pipe chiller(inch) | 1-1/2 | |
| Water pump | Power(KW) | 1.5 |
| Lift(m) | 25 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 450 |
| Dimension | mm | 1530*780*1630 |
Featurers for laser chiller
- Laser chiller use the world famous hermetic scroll type compressor Danfoss, Copeland and Panasonic, features low noise, low vibration, low energy consumption and high efficiency.
- Laser chiller use environmental refrigerant R410a or R134a.
- Air cooled laser chiller use finned copper tube and low noise outer rotor fan, without cooling water system, save water.
- High efficient shell and tube type or plack pack evaporator, built-in stainless steel 304 water tank, easy to install and use.
- Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ± 0.1 ℃.
- This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Benefits of an laser water chiller
- Laser chiller is used to maintain constant and precise control of the laser generator to reduce downtime and improve the service life.
- The water chiller precise temperature control can improve the machining accuracy of laser machine and productivity for laser process.
- Industrial chiller is usually closed-loop systems, which can save water through recirculation cooling.
- Portable laser chiller contains water tank and the pump and all necessary components, portable and easier installation.
- The air cooled laser chiller is without additional cooling tower and water pump, easier operation and maintenance.
Water quality and material requirements for laser chiller water systems
The waterway inside the laser is narrow, if there are impurities in the circulating water, it is easy to block the waterway, so the laser has a high requirement on the water quality of the circulating water of the chiller. The water system of laser chiller must be made of stainless steel to prevent rust and other impurities. At the same time, it is recommended to use distilled water or clean purified water as the circulating water of cooling time.
Water chiller service from manufacturer
- All the chillers are provided with 12 months free maintenance service.
- Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
- If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
- Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
- Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
