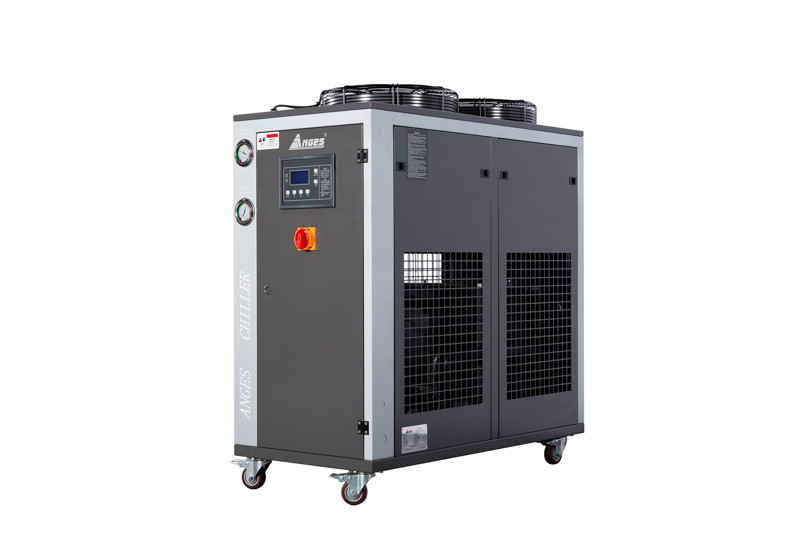

6kw Heating And Cooling Chiller

Place of Origin China
Brand Name ANGES
Model Number AC-3H
Minimum Order Quantity 1
Price Negotiable
Packaging Details Plywood case
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 10000pcs/months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Cooling And Heating Temperature Controller Condition Brandnew
Cooling Capacity 8.5kw Heating Power 6kw
Compressor Type Hermetic Scroll Type Evaporator Shell & Tube Type
Usage Pharmaceutical,Heat Treatment Furnace,chemical And Biological,chemical
High Light

6kw heating and cooling chiller


8.5kw heating and cooling chiller


6kw heating and cooling systems

Leave a Message
Product Description

Heating And Cooling Temperature Controller Heating And Cooling Systems Industrial Cooling And Heating Chiller


The heating and cooling integrated dual-use chiller contains heating and cooling functions to meet different temperature requirements under different needs. Mutual switching can be realized to speed up production schedule, reduce energy consumption, improve the molding efficiency of products.


Nominal cooling capacity Kcal/h 7310
  kw 8.5
Input power kw 9.2
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Capillary
Compressor Type Hermetic scroll type
  Power (kw) 2.64
Condenser Type

Finned copper tube+low noise outer

rotor fan

  Power(kw) 0.19
  Cooling air flow(m3 /h) 3000
Evaporator Type Water tank with coil
  Chilled water flow (m3 /h) 1.47
  Tank volume(L) 50
  Inlet/outlet pipe chiller(inch) 1
Water pump Power(KW) 0.37
  Lift(m) 20
Heating device Type Heating tube
  Power(KW) 6
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 135
Dimension mm 930*520*1185
