10 Ton Industrial Air Cooled Chiller

10 Ton Industrial Air Cooled Chiller

Industrial Air Cooled Chiller

10 Ton Air Cooled Chiller

10 Ton small air cooled chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

10hp

Contact Us

Request A Quote
Product Details
Name:
Water Cooling Chiller
Compressor Type:
Hermetic Scroll Compressor
Refrigerant:
R22/R404a/R407c/R134a
Cooling Capacity:
29kw
Evaporator:
Plate Heat Exchanger Or Tank With Coil
Condition:
Brandnew
Warranty:
12 Months
Pump:
2 To 4bar
Water Tank:
200L Stainless Steel Insulated Water Tank
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Product Description

Laser Chiller Cooling Machine 10ton Industrial Air Cooled Chiller Small Chiller High Efficiency Energy Saving Chiller



Laser chiller is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.

It can precisely control the water temperature required by the laser equipment, so as to ensure the normal operation of the laser equipment.

Item

AL-10W(D)

Nominal cooling capacity Kcal/h 24940
  kw 29
Input power kw 11.22
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Capillary
Compressor Type Hermetic scroll type
  Power (kw) 8.8
Condenser Type

Finned copper tube+low noise outer

rotor fan

  Power(kw) 0.92
  Cooling air flow 10000
Evaporator Type Water tank with coil
  Chilled water flow 5
  Tank volume(L) 200
  Inlet/outlet pipe chiller(inch) 1-1/2
Water pump Power(KW) 1.5
  Lift(m) 25
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 450
Dimension mm 1530*780*1630

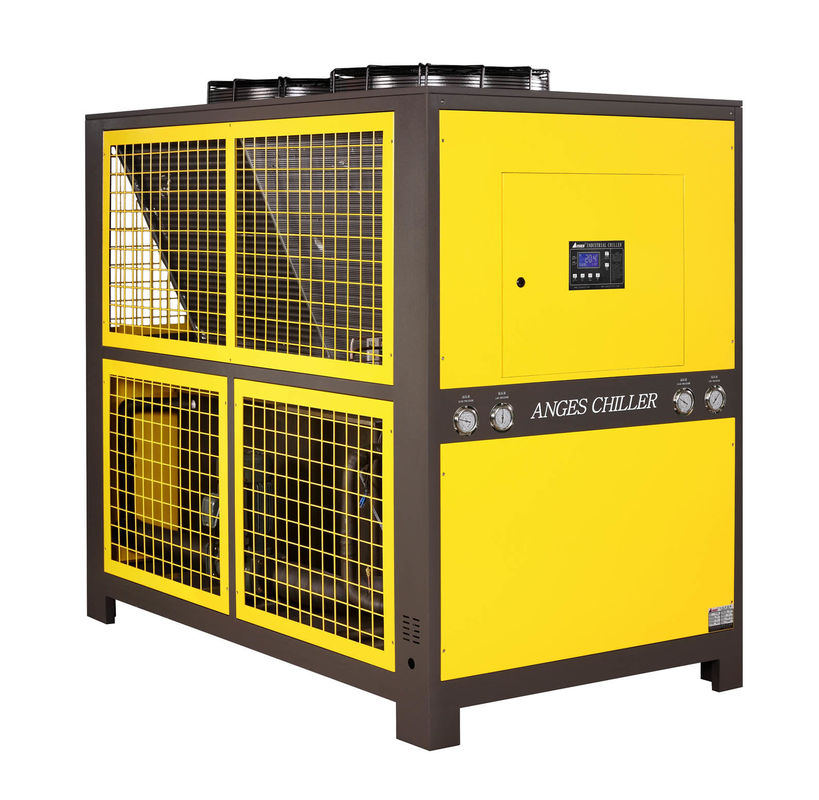

Anges air cooled laser chiller

Laser chiller is a refrigeration equipment specially designed to match all kinds of lasers. According to the characteristics of laser with high temperature sensitivity, high water quality requirements and high safety protection requirements, it adopts a number of purification and protection measures, stable performance, and can work continuously for a long time.



Laser chiller main features

  • PID intelligent temperature controller, temperature control accuracy ±0.1℃.
  • Chilled water circulation system adopts stainless steel pump, water pressure 2 ~ 4 bar is optional low noise, small vibration, constant flow.
  • Air coole package laser chiller has contains water tank and the pump and all necessary components, portable and easier installation.
  • With high and low temperature alarm and flow switch alarm function, more safe operation.
  • Compressor overheating protection, overcurrent protection, the whole machine leakage protection;

The daily maintenance method of laser chiller

  1.  Install the chiller in a ventilated and clean place, ambient temperature below 40 ℃ is recommended and maintain good ventilation.
  2. The water should be replaced regularly, and the water tank should be cleaned regularly. Generally, the water should be changed once every 3 months.
  3.  The quality and temperature of the circulating water will affect the service life of the laser tube, so it is recommended to use pure water.
  4. When the lase chiller stops due to fault alarm, must check the cause of the fault. Do not forcibly start the chiller before troubleshooting.
  5. Regularly clean the condenser and dust filter of the chiller.
  6. If there is no emergency during use, do not arbitrarily shut down the chiller by cutting off the power supply
  7. Winter maintenance in addition to routine maintenance, there is also the need to prevent icing. In order to ensure the normal use of laser chiller, the ambient temperature should not be lower than 5 ℃.If not, add antifreeze solution appropriately.the ambient temperature should not be lower than 5 degrees Celsius to avoid freezing of the chiller:
