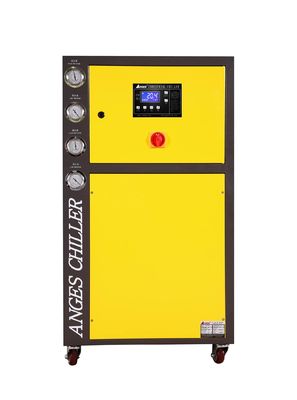

12 Ton 12hp Central Water Chiller Water Chiller Units Industrial Water Cooled

12 Ton 12hp Central Water Chiller Water Chiller Units Industrial Water Cooled

Brand Name: ANGES
Model Number: AWK-12
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Water-cooled Type
Cooling Capacity:
40.3kw
Compressor:
12hp
Condenser:
Shell And Tube
Evaporator:
Shell And Tube
Voltage:
3PH~220V/380V/415V~50HZ/60HZ
Condition:
Brand New
Dimension(l*w*h):
1320*800*1320mm
Warranty:
12 Months
Refrigerant:
R22/R134a/R407c/R410a
Weight:
600kg
Temperature:
5°C~30°C
High Light:

12hp water chiller units industrial

,

12 Ton water chiller units industrial

,

12tr water cooled industrial chiller

Product Description

12ton Water Chiller 12hp Central Water Chiller Water Cooled Scroll Chiller Industrial Water Chiller Cooling System



About the portable chiller and central chiller



The portable chiller contains scroll chiller compressor refrigeration circuit, water tank and the pump and all necessary components. It can work after connecting the production lines with water pipes.

The water chiller cooling capacity is from 3kw -180kw, can accurately control the process temperature and shorten the cycle, increase the product quality and improve the production efficiency.



Specification for chilled water system

​​

Model

AWK-12
nominal cooling capacity Kcal/h 34658
  kw 40.3
input power kw 9.3
power supply 3PH~380V/50HZ
refrigerant type R22
  type of control Expansion valve
compressor type Hermetic scroll type
  Power (kw) 7.8
condenser type Shell and tube
  Cooling water flow(m3/h) 8.3
  Inlet/outlet pipe caliber(inch) 2
evaporator type Shell and tube
  Chilled water flow(m3/h) 6.9
  Tank volume(L) 75
  Inlet/outlet pipe chiller(inch) 2
Water pump Power(KW) 1.5
  Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 600
Dimension mm 1320*800*1320


Featurers for portable water cooled scroll chiller


1. This 12Tr water chiller use famous brand scroll compressor.Scroll compressor has the advantages of small volume, low noise, light weight, small vibration, low energy consumption, long life and reliable operation.

2. High efficient shell and tube type evaporator,built-in stainless steel 304 water tank,easy to install and use.

3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.

4. This industrial water-cooled chiller equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-30C.

5. This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.



Water chiller service from manufacturer



1. All the chillers are provided with 12 months free maintenance service.

2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.

3. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.

4. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.

5. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
