Industrial Water Chiller
>

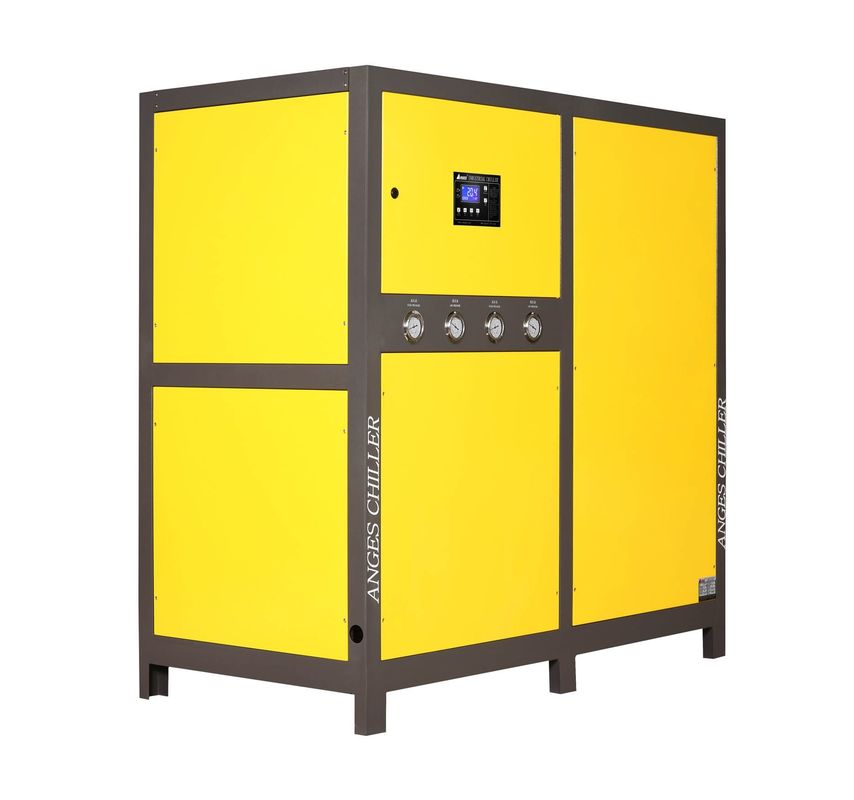

5 Ton 5hp Central Water Industrial Chiller Machine

5 Ton 5hp Central Water Industrial Chiller Machine

Brand Name: ANGES
Model Number: AWK-5
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Water-cooled Type
Cooling Capacity:
15.8 Kw
Compressor:
5 Hp
Condenser:
Shell And Tube
Evaporator:
Shell And Tube
Voltage:
3PH~220V/380V/415V~50HZ/60HZ
Condition:
Brand New
Dimension (l*w*h):
1250*600*1200 Mm
Warranty:
12 Months
Refrigerant:
R22/R134a/R407c/R410a
Weight:
180 Kg
Temperature:
5℃~30℃
Highlight:

Central Water industrial chiller machine

,

5hp industrial chiller machine

,

5 Ton water chiller units industrial

Product Description

5ton Water Chiller 5hp Central Water Chiller Water Cooled Scroll Chiller Industrial Water Chiller Cooling System



About the portable chiller and central chiller

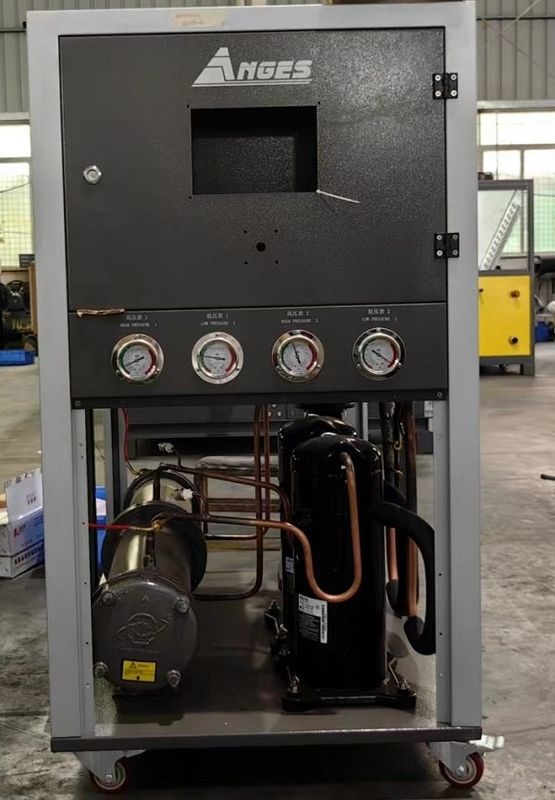

The portable chiller contains scroll chiller compressor refrigeration circuit, water tank and the pump and all necessary components. It can work after connecting the production lines with water pipes.

The water chiller cooling capacity is from 3kw -180kw, can accurately control the process temperature and shorten the cycle, increase the product quality and improve the production efficiency.



Specification for chilled water system

Model  Item

AWK-5
nominal cooling capacity Kcal/h 13588
  kw 15.8
input power kw 4.05
power supply 3PH~380V/50HZ
refrigerant type R22
  type of control Capillary
compressor type Hermetic scroll type
  Power (kw) 3.3
condenser type Shell and tube
  Cooling water flow(m3/h) 3.3
  Inlet/outlet pipe caliber(inch) 1-1/2
evaporator type Shell and tube
  Chilled water flow(m3/h) 2.7
  Tank volume(L) 60
  Inlet/outlet pipe chiller(inch) 1
Water pump Power(KW) 0.75
  Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 180
Dimension mm 1250*600*1200


Featurers for portable water cooled scroll chiller

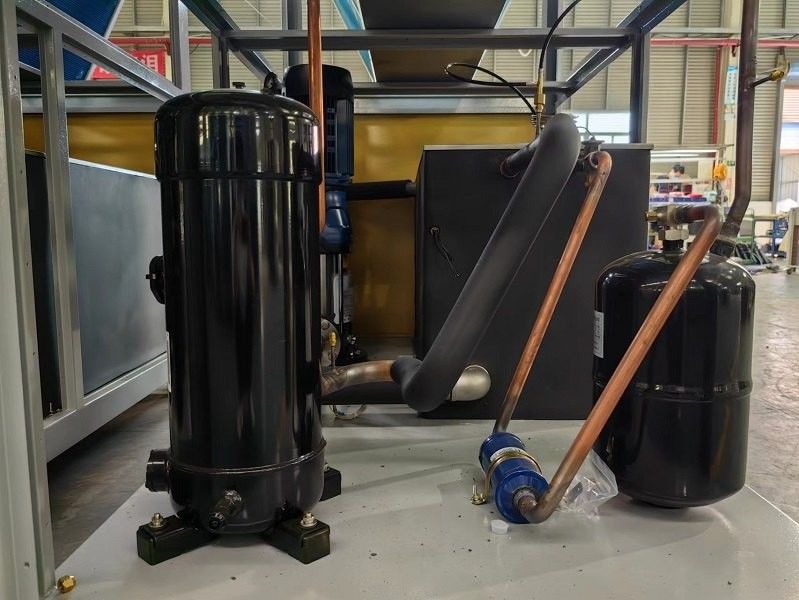

  1. This 5Tr water chiller use famous brand scroll compressor.Scroll compressor has the advantages of small volume, low noise, light weight, small vibration, low energy consumption, long life and reliable operation.
  2. High efficient shell and tube type evaporator,built-in stainless steel 304 water tank,easy to install and use.
  3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  4. This industrial water-cooled chiller equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-30C.
  5. This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.

Water chiller service from manufacturer

  1. All the chillers are provided with 12 months free maintenance service.
  2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
  3. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
