| Brand Name: | ANGES |
| Model Number: | AC-10H(D) |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

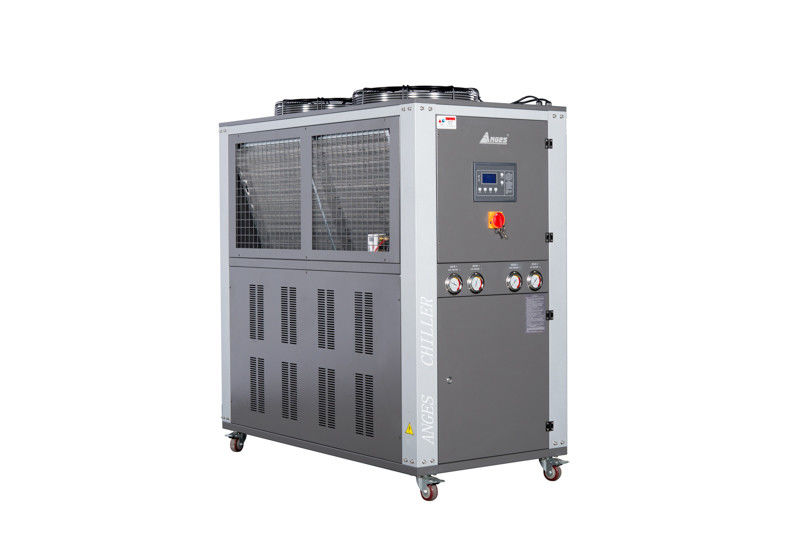

Heating And Cooling Temperature Controller Heating And Cooling Systems Industrial Cooling And Heating Chiller
The heating and cooling integrated dual-use chiller contains heating and cooling functions to meet different temperature requirements under different needs. Mutual switching can be realized to speed up production schedule, reduce energy consumption, improve the molding efficiency of products.
| Item | AC-3H | AC-5H | AC-8H(D) | AC-10H(D) | AC-12H | AC-15H | |
| Nominal cooling Capacity | Kcal/h 50HZ |
7310 | 12470 | 19522 | 24940 | 31476 | 39732 |
| KW 50HZ |
8.5 | 14.5 | 22.7 | 29 | 36.6 | 46.2 | |
| Total input power | KW | 9.2 | 14.33 | 21.28 | 23.22 | 29.72 | 33.06 |
| Power | 3PH-380V/50HZ | ||||||
| Refrigerant | Type | R22(R134a/R407c) | |||||
| Control method | Capillary | Expansion valve | |||||
| Compressor | Type | Hermetic scroll | |||||
| Power(KW) | 2.64 | 4.4 | 7.4 | 8.8 | 9.3 | 12.46 | |
| Condenser | Type | Finned copper tube+low noise outer rotor fan | |||||
| Power(KW) | 0.19 | 0.38 | 0.38 | 0.92 | 0.92 | 1.1 | |
| Cooling air flow(m3/h) | 3000 | 5000 | 8000 | 10000 | 12000 | 15000 | |
| Evaporator | Type | Water tank with coil(shell and Tube) | |||||
| Chilled water flow(m3/h) | 1.47 | 2.50 | 3.91 | 5.00 | 6.31 | 7.97 | |
| Tank volume(L) | 50 | 60 | 120 | 200 | 200 | 300 | |
| Inlet/outlet | 1" | 1" | 1-1/2" | 1-1/2" | 2" | 2" | |
| Water pump | Power(kw) | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 1.5 |
| Lift(m) | 20 | 20 | 20 | 20 | 20 | 20 | |
| Heating device | Type | Heating Tube | |||||
| Power(KW) | 6 | 9 | 12 | 12 | 18 | 18 | |
| afety protection | Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow switch protection, phase sequence or missing phase protection, exhaust overheating protection. | ||||||
| Dimension | Length(mm) | 930 | 1140 | 1300 | 1530 | 1530 | 1850 |
| Width(mm) | 520 | 560 | 720 | 780 | 780 | 990 | |
| Height(mm) | 1185 | 1250 | 1520 | 1630 | 1630 | 1780 | |
| Weight | Kg | 135 | 175 | 320 | 450 | 530 | 750 |
|
|
