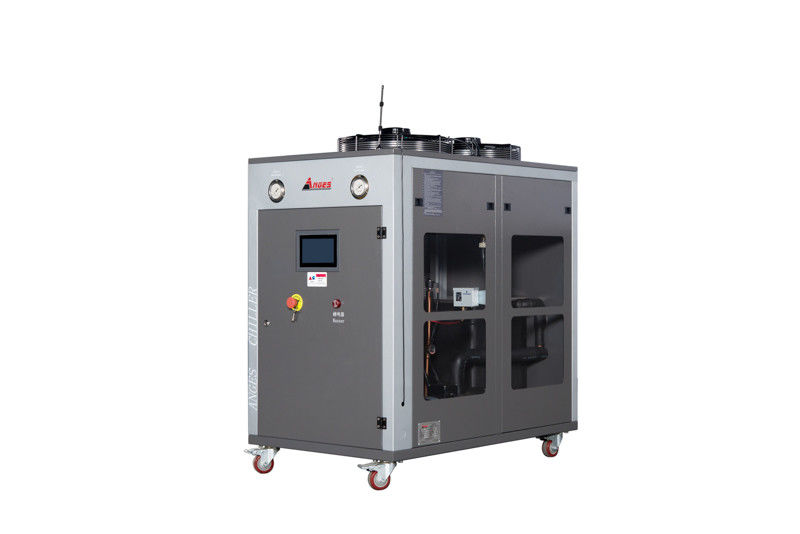

6 Ton Portable Water Chiller

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCompressor | Scroll Type | Cooling Capacity | 17.1kw |
---|---|---|---|
Type | Air-cooled Water Chiller | Condenser | Fin Tube Type Air Cooled Condenser |
Evaporator | Shell And Tube | Water Temperature | 5-30 ℃ |
Original | China Chiller Manufacturer | Certification | CE |
Voltage | 3PH~220V/380/415V~50HZ/60HZ | Condition | Brandnew |
Warranty | 12 Months | Refrigerant | R22/R410a/R407c/R134a |
High Light | 6 Ton Portable Water Chiller,Portable Water Chiller 6HP,6HP portable water cooled chiller |
Portable Water Chiller Injection Moulding Chiller Plastic Chiller Cooling System 6ton Water Chiller Small Packed Water Chiller
Plastic Industrial Chiller Cooling Application
Industrial water chillers are widely used in plastic and rubber process belwo.
Chillers for Extrusion Application
Chillers are the most important part of plastic process. In the plastic continuous production process, the chillers can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. It usually requires a water temperature of 10-25 degrees, which the cooling tower cannot meet this temperature.
Anges plastic chiller water temperature range from 5 to 30 ℃ which is adjustable according to different material and process requirements.This portable packaged chillers arecontained complete cooling system,water tank and water pump with water pressure 2 bar to 6 bar options.
Plastic Industrial Portable Chiller Specification
Model |
HBC-6 | ||
nominal cooling capacity | kcal/h | 14706 | |
kw | 17.1 | ||
input power | kw | 5.93 | |
power supply | 3PH/380V/50HZ | ||
refrigerant | type | R410a | |
type of control | Expansion valve | ||

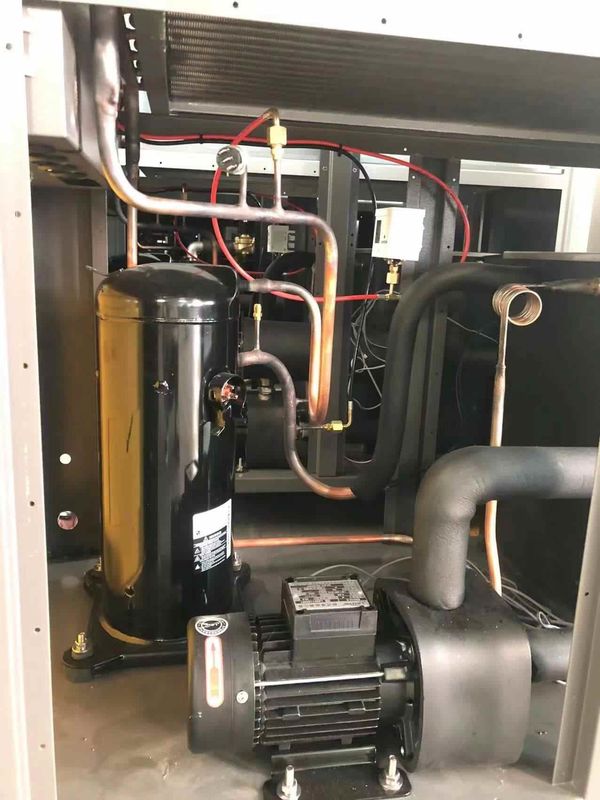

compressor | type | hermetic scroll | |
power(kw) | 4.8 | ||
condenser | type | finned copper tube + low noise outer rotor fan | |
cooling air flow(m3/h) | 6000 | ||
evaporator | type | Shell and tube | |
chilled fluid flow(m3/h) | 2.95 | ||
volume(L) | 75 | ||
inlet and outlet pipe diameter (inch) | 1 | ||
pump | power (kw) | 0.75 | |
lift(m) | 20 | ||
safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
weight | kg | 200 | |
dimension | mm |
1140*560*1250 |
Air Coold Portable Packed Chiller Features
- The design is very compact and made of high-grade materials. It has stronger durability, longer service life and lower maintenance cost.
- The air chiller of using shell-and-tube evaporator is simple structure, convenient maintenance and high heat exchange efficiency.
- Using a large-capacity condenser, it can run easily even in hot weather.
- The chiller system has complete protection devices such as water volume alarm and high temperature alarm functions.
- High quality stainless steel tank and pipelines ensure pure water, and easy to clean and maintain.
-
Accurate temperature control capability, the freezing temperature can be accurate to ±1.
Air cooled portable chiller installation
- Install air cooled chiller in a place with stable foundation, ventilation. Suggested to take appropriate measures to shade the sun and rain, the chiller must be at least 1 meter around the net space, to ensure ventilation while facilitating later maintenance work.
- According to the inlet and outlet pipe diameter of the chiller, select the matching water pipe and connect it correctly.
- It is necessary to ensure that the water flow of air-cooled chiller is normal and stable.
- Suggest to use clean water for chilled water circulation to avoid all kinds of sundries or corrosion sediment and existing in pipelines, evaporators and condensers to affect the heat transfer effect, leading to increased maintenance costs.
How to select the model of the chiller ?
- We need to know the heat load of your process or chiller cooling capacity, it can be calculated roughly according to production capacity.
- Required water temperature, water pressure and flow rate.
- Application and power supply in local.
- Max. Ambient temperature in summer day
- Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
