Brand Name: | ANGES |
Model Number: | HBC-25(D) |
Packaging Details: | Plywood case |
Payment Terms: | T/T, L/C |

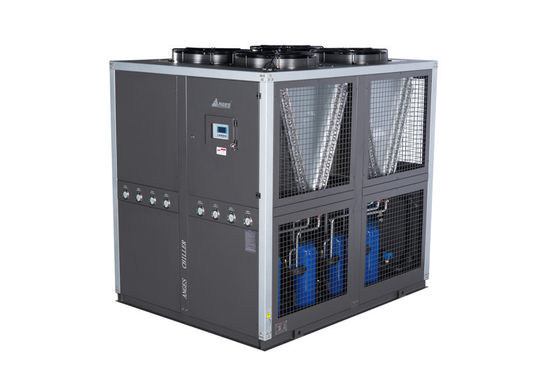

Industrial Water Cooled Chiller 25ton Air Chiller Water Industrial Chiller Plastic Industry Chiller Beverage Chiller
Why do I need a industrial water chiller?
Industrial chillers are used for controlled cooling of products, mechanisms and machinery in a variety of industries,they remove heat from the process water to keep your equipment at a safe operating temperature and cool your components during processes, ensure the highest quality final products and reduce production cycle time.Industrial process chillers are widely used in plastic industry, electroplating, food and beverages processing, chemical industry, printing machine, laser cutting and so on.
Industrial Chiller Specification
Model |
HBC-25(D) | ||
nominal cooling capacity | kcal/h | 60596 | |
kw | 70.5 | ||
input power | kw | 21.96 | |
power supply | 3PH/380V/50HZ | ||
refrigerant | type | R410a | |
type of control | Expansion valve | ||
compressor | type | hermetic scroll | |
power(kw) | 18.2 | ||
condenser | type | finned copper tube + low noise outer rotor fan | |
cooling air flow(m3/h) | 25000 | ||
evaporator | type | Shell and tube | |
chilled fluid flow(m3/h) | 12.15 | ||
volume(L) | 170 | ||
inlet and outlet pipe diameter (inch) | 2-1/2 | ||
pump | power (kw) | 2.2 | |
lift(m) | 20 | ||
safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
weight | kg | 920 | |
dimension | mm | 2000*1130*2000 |
Industrial Water Chiller Features
1. Chiller units use the world famous brand hermetic scroll type compressor, low noise, low vibration, low energy consumption and high efficiency.
Environment-friendly refrigerant R407C, R410A, R404A, R134a, etc.
2. The chillers use SCHNEIDER brand electric components, ensure stable running of the machine.

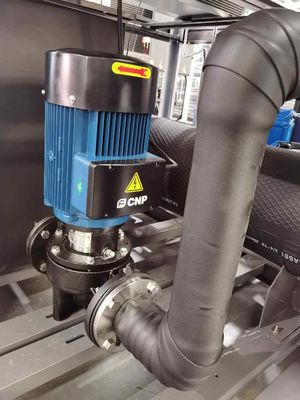

3. High class water pump featuring wide working range, low noise, reliable performance, no leaking and maintenance-free.
4. The air cooled chiller has high quality stainless steel tank and pipelines ensure pure water, and easy to clean and maintain.
5. Chiller cooling capacity from 2kw to180kw (0.57ton to 51ton), fully meets the demand of industrial production.
6. Galvanized plate outer casing,the chiller can be installed outdoor,simple structure and elegant appearance.
How to ensure your product with good quality?
1. We are specialized in producing industrial chiller since 2004, located in Shenzhen China and give top priority to our quality. All products pass strict multi inspection process which gives customers multi guarantee, most of the accessories use world-class brands, such as Danfoss, Copeland, Schneider electrical components and so on.
2. After industrial chiller assembly, we will charge nitrogen for pressure maintaining testing for 24hrs, to check whether there is leakage in the chiller cooling system.
3. We will provide testing videos, pictures during chiller testing.
4. After the chiller testing commissioning, cleaning and labelling the chiller unit, then go for pre-delivery inspection before packing with plywood cases to to ensure that the chiller can be in good condition during transit.
Water chiller service from manufacturer
1. All the chillers are provided with 12 months free maintenance service.
2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
3. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
4. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
5. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
Air cooled industrial chiller installation and maintenance
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
