Brand Name: | ANGES |
Model Number: | HBC-20(D) |
Packaging Details: | Plywood case |
Payment Terms: | T/T, L/C |

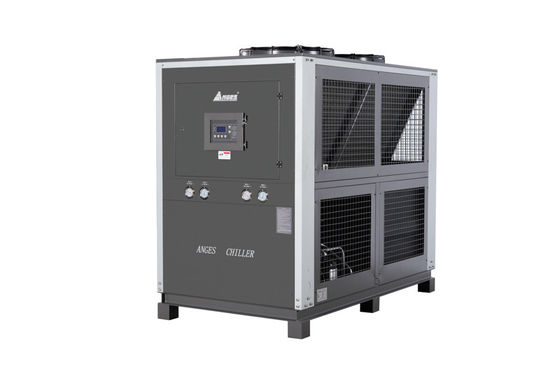

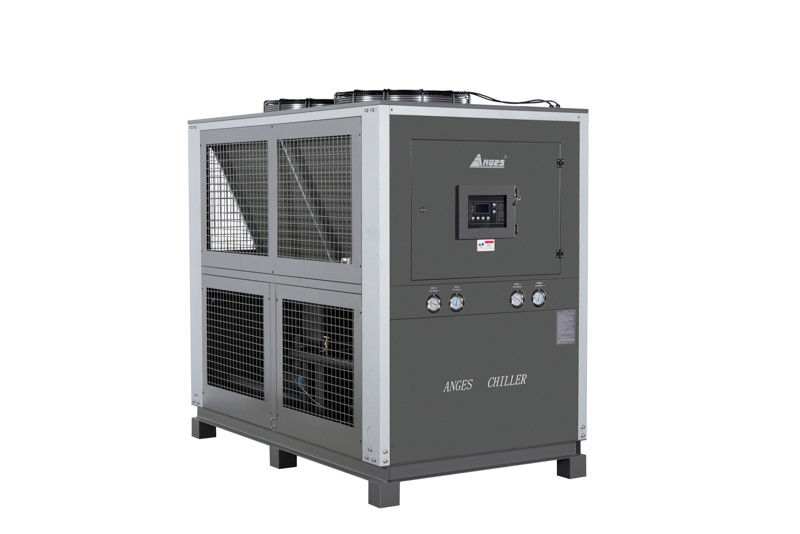

20ton Water Chiller Price Air Cooled Chiller Glycol Water Chiller Modular Chiller Plant Air Cooled Lab Chiller 20hp
What is an industrial chiller?
Industrial chiller is a refrigeration system used to lower the temperature of your equipment during production. They are an essential part of temperature regulation for industrial processes such as injection molding, metal plating, and food processing.We are able to supply appropriate industrial chiller that is made precisely to your specific applications through the use of high quality components.
Air-cooled Chiller Specifications
Model |
HBC-20(D) |
||
nominal cooling capacity |
kcal/h |
52460 |
|
kw |
61 |
||
input power |
kw |
19.96 |
|
power supply |
3PH/380V/50HZ |
||
refrigerant |
type |
R410a |
|
type of control |
Expansion valve |
||
compressor |
type |
hermetic scroll |
|
power(kw) |
16.2 |
||
condenser |
type |
finned copper tube + low noise outer rotor fan |
|
cooling air flow(m3/h) |
20000 |
||
evaporator |
type |
Shell and tube |
|
chilled fluid flow(m3/h) |
10.52 |
||
volume(L) |
350 |
||
inlet and outlet pipe diameter (inch) |
2 |
||
pump |
power (kw) |
2.2 |
|
flow rate(m3/h) |
25 |
||
lift(m) |
20 |
||
safety protection |
compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing |
||
weight |
kg |
835 |
|
dimension |
mm |
2000*1130*1820 |
Type of industrial chillers (Base on condenser type)
There're two major types of industrial chillers in use today, air-cooled chillers, water-cooled chillers.Both air-cooled and water-cooled chillers are mostly the same, the main difference is in how the refrigerant is cooled(Condenser is different).
Air-cooled chillers use ambient air (thru a cooling fan) to cool the refrigerant in cooing condenser and are a stand-alone units do not require any additional equipment to function.Easier for install and maintain than water-cooled systems.
The most common types of wate-cooled chillers use water from an external tower to cool the refrigerant in the condenser. Water-cooled chillers are generally more efficient than air-cooled chillers.
The air cooler chiller equipped with a cooling fan can run directly, water cooled chiller needs to install water tower and pump for operation.
Features of industrial chiller unit
1. The water chiller system innovative design and modern technology on the front provide higher cooling efficiency for your process.
2. The air chiller design is very compact and made of high-grade materials. It has stronger durability and longer service life.
3. Industrial chiller has high pressure, low pressure, overload, water level, phase sequence and other protections to ensure the safe operation of the chiller unit.
4. The chiller has a wide range of applications and can be used in the rubber and plastics industry, chemical industry, laser industry, etc.
5. Industrial water chiller is simple to operate, install and maintain.
Benefits of an industrial water chller
1. Industrial water chiller can reduce downtime and improve productivity.
2. Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ±0.1 ℃.
3. Industrial chiller is usually closed-loop systems, which can save water through recirculation cooling.
4. Water chiller applied in Plastic and Rubber industry.It can accurately control the molding temperature and shorten the molding cycle.
5. Decrease equipment depreciation and degradation to cut down on operating expenditures.
Air cooled industrial chiller installation and maintenance
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
