| Brand Name: | ANGES |
| Model Number: | 20HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, T/T, L/C |

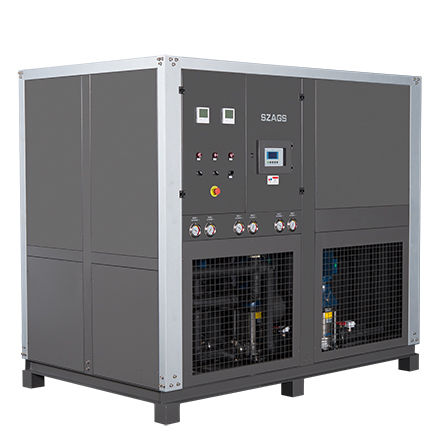

Integrated Chiller Has Multi-circulation Water Systems
Output three different temperatures of water at the same time, 3 in and 3 out
A new generation chiller unit, designed specifically for PET blowing bottle production line.One unit chiller supplies water at 3 different temperatures at the same time to the oven, side and base mold of PET blowing mould to reduce products molding cycle.The integrated design is compact, reduces cost and easier installation and maintaining.
| Item | ACKS-15T | ACKS-20(F) | ACKS-25(D) | ACKS-30(T) | ACKS-35(T) | ACKS-40(F) | ACKS-50(F) | |
Nominal cooling Capacity |
Kcal/h 50HZ |
38158.2 | 50877.6 | 63192.8 | 80341.2 | 94789.2 | 107121.6 | 126385.6 |
| KW 50HZ |
44.37 | 59.16 | 73.48 | 93.42 | 110.22 | 124.56 | 146.96 | |
| Total input power | KW | 17.56 | 22.54 | 27.3 | 33.26 | 38.3 | 42.46 | 50.2 |
| Power | 3PH-380V-50HZ(200V/220V/415V/460V 50HZ/60HZ) | |||||||
Refrigerant |
Type | R22(R134a/R410A) | ||||||
| Control method | Capillary | Expansion valve | ||||||
Compressor |
Type | Hermetic scroll | ||||||
| Power(KW) | 12.36 | 16.48 | 19.84 | 24.72 | 29.76 | 32.96 | 39.68 | |
Condenser |
Type | Finned copper tube+low noise outer rotor fan. | ||||||
| Power(KW) | 1.1 | 1.56 | 1.56 | 1.84 | 1.84 | 2.8 | 3.12 | |
| Cooling air flow(m3/h) | 15000 | 20000 | 25000 | 30000 | 30000 | 40000 | 50000 | |
Evaporator |
Type | Water tank with coil | ||||||
| Tank volume(L) | 400 | 400 | 400 | 500 | 500 | 670 | 720 | |
| Chilled water flow(m3/h) | 7.7 | 10.2 | 12.7 | 16.1 | 19.0 | 21.5 | 25.3 | |
Water pump 1 |
Power(kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Lift(m) | 60 | 60 | 60 | 68 | 68 | 68 | 62 | |
| Chilled water flow (m³/h) | 2.0 | 2.4 | 3.2 | 4.2 | 5.0 | 5.7 | 6.7 | |
| Inlet/outlet | 1" | 1" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | |
Water pump 2 |
Power(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Lift(m) | 60 | 60 | 62 | 62 | 62 | 62 | 62 | |
| Chilled water flow(m³/h) | 2.8 | 3.5 | 4.8 | 5.1 | 6.0 | 6.8 | 8.0 | |
| Inlet/outlet | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | |
| Water pump 3 | Power(kw) | 1.5 | 1.5 | 2.2 | 3 | 3 | 3 | 3 |
| Lift(m) | 60 | 65 | 62 | 69 | 69 | 69 | 69 | |
| Chilled water flow(m³/h) | 2.8 | 4.3 | 4.8 | 6.8 | 8.0 | 9.0 | 10.7 | |
| Inlet/outlet | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | |
| Safety protection | Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow switch protection, phase sequence or missing phase protection, exhaust overheating protection. | |||||||
| Dimension | Length(mm) | 2200 | 2300 | 2300 | 2475 | 2475 | 2550 | 2550 |
| Width(mm) | 1200 | 1130 | 1800 | 1800 | 1800 | 2260 | 2260 | |
| Height(mm) | 1800 | 1850 | 1980 | 1980 | 1980 | 1950 | 1950 | |
| Weight | Kg | 1060 | 1350 | 1450 | 1640 | 1730 | 1970 | 2120 |
|
|
