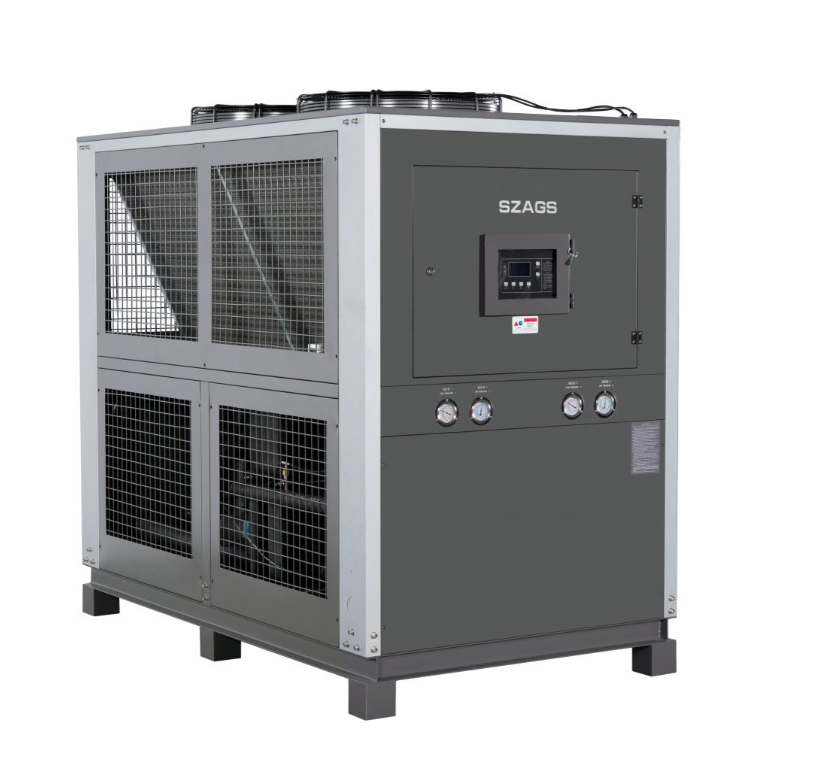

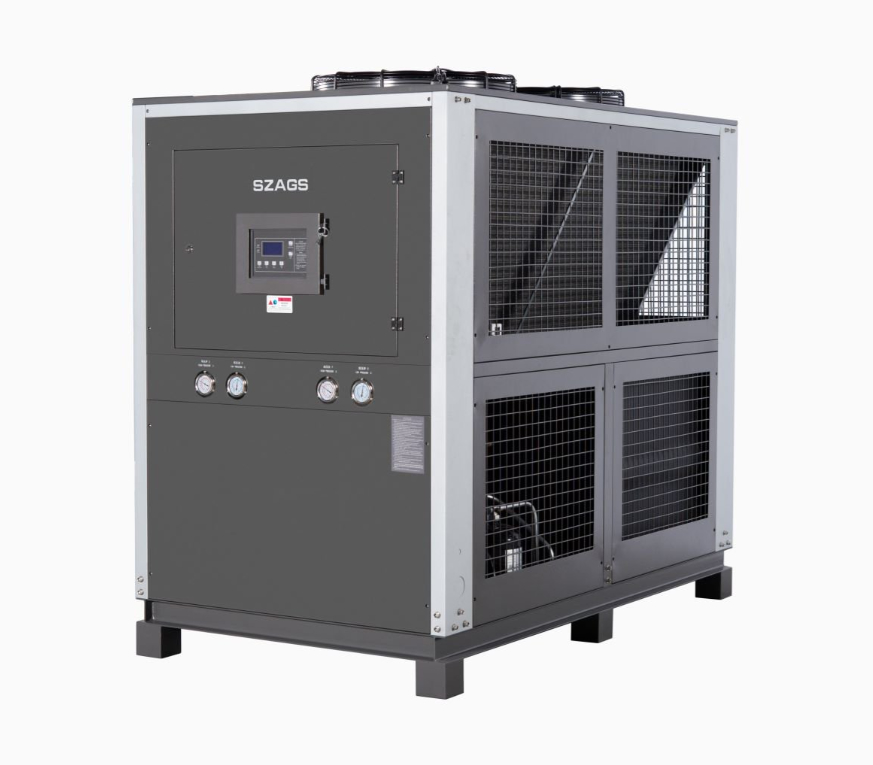

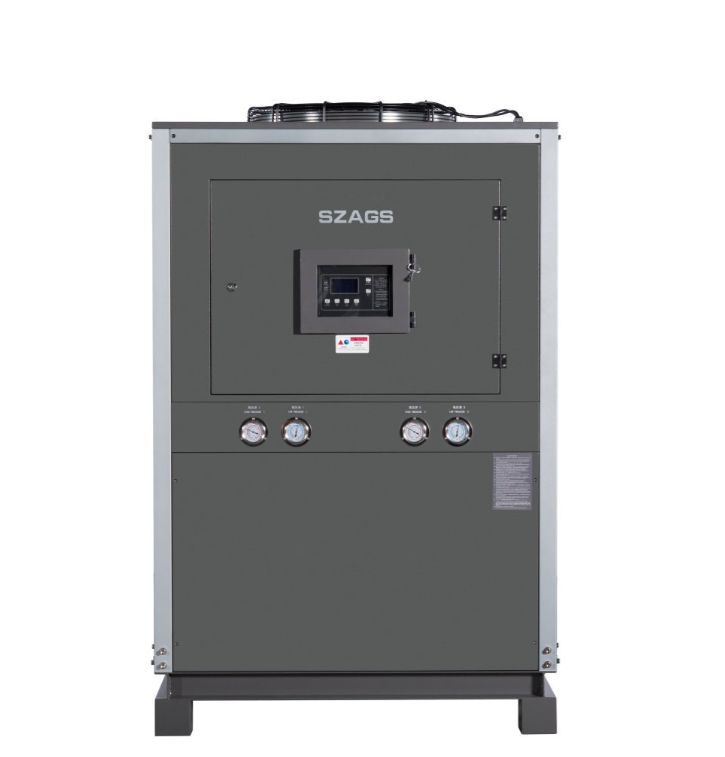

Name: 20HP Air‑Cooled Glycol Chiller Energy‑Efficient Scroll Type Compressor Industrial Chiller for Injection Molding Machines
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: ACK-20(D)
Price: 2,100.00 USD
Availability: InStock

Home > products > Glycol Chiller >

20HP Air‑Cooled Glycol Chiller Energy‑Efficient Scroll Type Compressor Industrial Chiller for Injection Molding Machines

Scroll Type Compressor Glycol Chiller

Energy Efficient Glycol Chiller

20HP Glycol Chiller

Place of Origin:

China

Brand Name:

ANGES/SZAGS

Certification:

CE/ISO9001

Model Number:

ACK-20(D)

Request A Quote

20HP Air‑Cooled Glycol Chiller Energy‑Efficient Scroll Type Compressor Industrial Chiller for Injection Molding Machines

Product Details

Type:

Air Cooled Sroll Type

Capacity:

20HP

Compressor Typetype:

Danfoss/Panosonic/Copeland/LG

Refrigerant:

R410A/R407C/R134A/R22

Condenser:

Micro Channel + Low Noise Outer Rotor Fan

Water Tank:

170L/350L

Voltage:

3PH~220V/380/415V~50HZ/60HZ

Dimension(l*w*h):

2000*1130*1820

Weight:

950kg

Temperature Range:

-25℃ ~ 35℃

Application:

Plastic Injection Molding, Chemical Processing, Welding Equipment, Laser Machines, Food And Beverage Cooling, And More.

Compressor Type:

Scroll Type

After-sales Provided:

24hours Online Support/Video Technical Support/Overseas Third-party Support Available And Etc.

Condition:

New Brand

Pump Power:

2~4bar

Highlight:

Scroll Type Compressor Glycol Chiller

Energy Efficient Glycol Chiller

20HP Glycol Chiller

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Standard export plywood case

Delivery Time

10-35 days

Payment Terms

T/T,L/C

Supply Ability

600 sets/ month

40RT Air‑Cooled Industrial Glycol Chiller Energy‑Efficient Scroll Type Chiller with 4 Compressors for Extrusion Machines

Get Best Price

20HP Glycol Chiller 72kW Industrial Scroll Type Air Cooled Water Chiller

Get Best Price

30HP Industrial Scroll Type Air Cooled Water Chiller 92kW Glycol Chiller Cooling System

Get Best Price

Brewery Portable Glycol Chiller 10 Ton Glycol Refrigerant Low Temperature Water Chiller Refrigerator Water Chiller

Get Best Price

86-755-8958-2358

Contact Now

Product Description

20HP Air‑Cooled Glycol Chiller Energy‑Efficient Scroll Type Compressor Industrial Chiller for Injection Molding Machines

This 20HP air-cooled glycol chiller features a high-efficiency scroll compressor and is engineered for reliable cooling in a wide range of industrial applications. It is ideal for injection molding machines, plastic and rubber processing, food and beverage production, chemical plants, laser systems, and more. Designed for energy efficiency and precise temperature control, this chiller helps improve equipment performance, reduce downtime, and maintain consistent production quality.

Technical Parameters of Industrial Air-cooled Chiller

Model Item		ACK-20(D)
nominal cooling capacity	kcal/h	51,772
	kw	60.2
input power	kw	19.96
power supply	3PH 380V 50Hz
refrigerant	type	R407C
	type of control	thermostatic expansion valve
compressor	type	hermetic scroll
	power(kw)	16.2
condenser	type	Micro channel + low noise outer rotor fan
	fan power(kw)	1.56
	cooling air flow(m³/h)	20000
evaporator	type	shell and tube
	chilled fluid flow(m³/h)	10.38
	volume(L)	170
	inlet and outlet pipe diameter(inch)	2
pump	power(kw)	2.2
	lift(m)	20
safety protection	compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection
weight	kg	950
dimension	mm	200011301820

Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.

FAQ

1.How does a chiller system work?

A chiller system works through two main circulation loops: one for process water and the other for refrigerant. The process water absorbs heat from the application or equipment, and this heat is then transferred to the refrigerant loop. The refrigerant carries the heat away and releases it into the air (in air-cooled chillers), effectively cooling the system.

2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

3.Why Choose ANGES/SZAGS?
• Over 20 years of experience in industrial chiller manufacturing
• Trusted by customers in 60+ countries worldwide
• Certified with CE and ISO for quality and safety assurance
• Customizable options for voltage, refrigerant, and system design
• Factory-direct pricing with dependable after-sales support

4. What kind of after-sales service can we provide?

• 24/7 online support
• Video-based technical assistance
• Overseas third-party service available
• Timely response and professional troubleshooting guidance
