| Brand Name: | SZAGS |
| Model Number: | ACK-20(D) |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export wooden box |
| Payment Terms: | T/T, Western Union, MoneyGram |

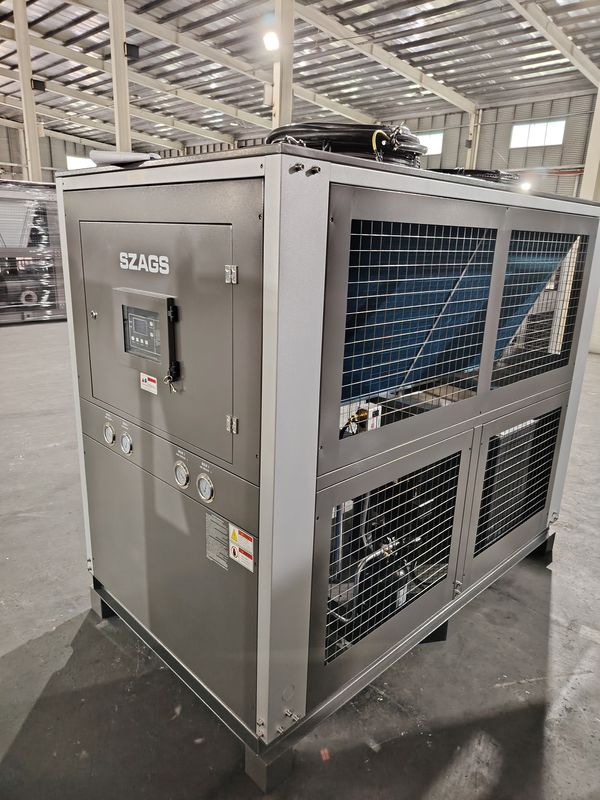

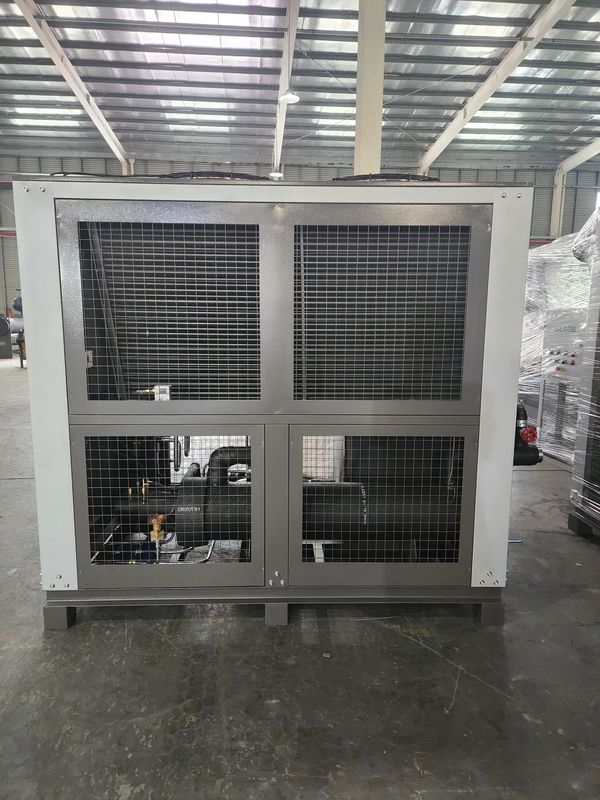

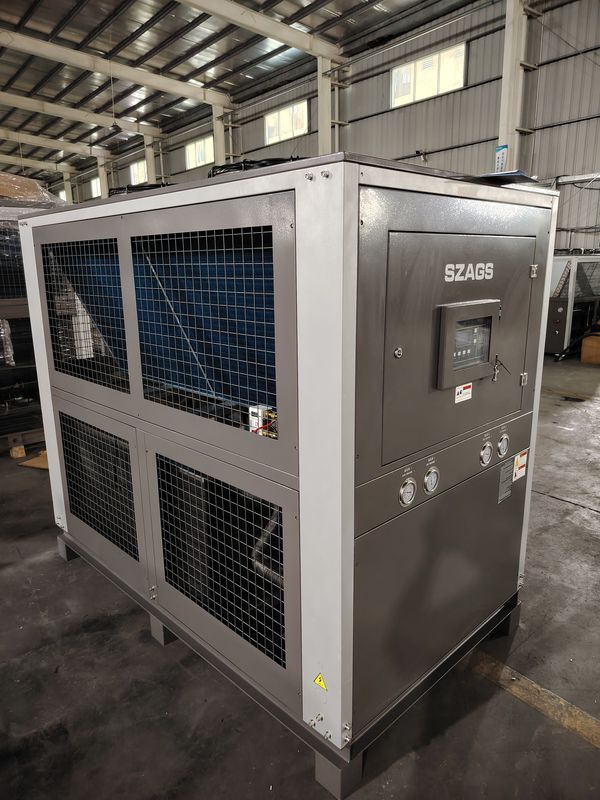

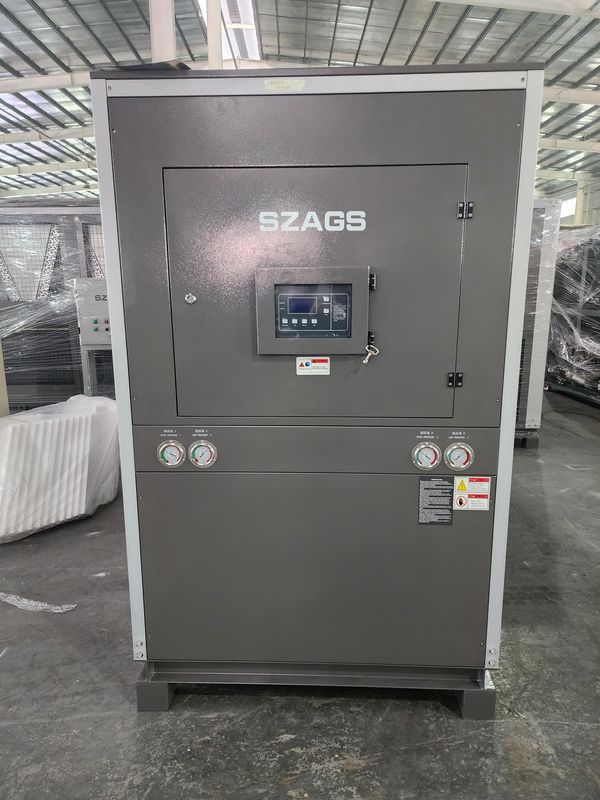

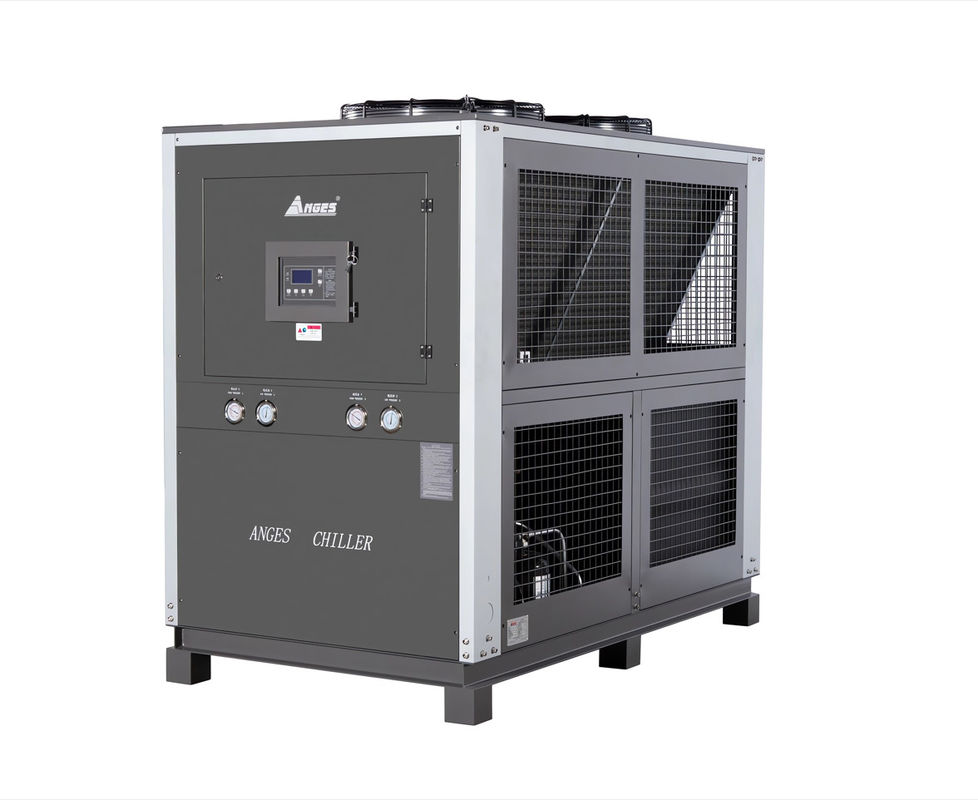

20HP Glycol Chiller 72kW Industrial Scroll Type Air Cooled Water Chiller
The working principle of industrial chiller?
Industrial chiller operates by removing heat from the cooling medium through a cyclic process that includes evaporation, compression, condensation, and expansion, ultimately achieving the desired cooling effect.
Technical Parameters of Industrial Air-cooled Chiller
|
Model Item |
ACK-20(D) | |
| nominal cooling capacity | kcal/h | 62126 |
| kw | 72.24 | |
| input power | kw | 19.96 |
| power supply | 3PH 220V 60HZ | |
| refrigerant | type | R407C |
| type of control | thermostatic expansion valve | |
| compressor | type | hermetic scroll |
| power(kw) | 16.2 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow(m3/h) | 25000 | |
| evaporator | type | shell and tube |
| chilled fluid flow(m3/h) | 12.46 | |
| volume(L) | 170 | |
| inlet and outlet pipe diameter(inch) | 2-1/2" | |
| pump | power(kw) | 2.2 |
| lift(m) | 20 | |
| safety protection | compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 1100 |
| dimension | mm | 2200*1300*2020 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Air Cooled Water Chiller:
The air-cooled industrial chiller, also referred to as an air-cooled box-type industrial chiller cooling unit, employs an air-cooled heat dissipation design. It uses built-in fans to draw in ambient air, which then passes through a condenser to release heat, effectively lowering the system temperature. This type of chiller does not require an additional water cooling system, making it relatively easy to install and maintain.
About SZAGS Water Chiller:
This economical water cooling equipment, a high-efficiency water cooler, is designed to save energy, offer a long service life, and operate with simplicity. It features a professional forced air-cooled radiator with high heat dissipation capacity, making it resistant to blockages. Additionally, it is equipped with an alarm output port for quick protection of sensitive components.
Application of SZAGS Chiller:
The easy-to-install SZAGS industrial chiller is widely used in industries such as electronics, electroplating, food processing, machinery, business card printing, and more. An air-cooled chiller is particularly effective in precisely controlling the temperature of plastic forming molds, helping to shorten the molding cycle and accelerate product setting. It is an essential piece of equipment for modern industrial setups.
Installation&Maintenance of SZAGZ Chiller
Maintenance: Air-cooled chillers eliminate the need for cooling towers, water treatment, chiller condenser-tube cleaning, and tower mechanical maintenance.
Installation: Most air-cooled chillers come as packaged systems, which include the air-cooled finned condenser, evaporator, compressor, and evaporator. Some models also feature a built-in water storage tank and pump. These systems are designed and configured at the factory for optimal performance and reliability, simplifying installation and reducing the need for custom design.
About SZAGZ Chiller service?
①24 hours Online support;
②Video guide;
③Overseas third-party support available and etc;
④SZAGS users enjoy lifetime after-sales support.
|
|
| Brand Name: | SZAGS |
| Model Number: | ACK-20(D) |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export wooden box |
| Payment Terms: | T/T, Western Union, MoneyGram |
20HP Glycol Chiller 72kW Industrial Scroll Type Air Cooled Water Chiller
The working principle of industrial chiller?
Industrial chiller operates by removing heat from the cooling medium through a cyclic process that includes evaporation, compression, condensation, and expansion, ultimately achieving the desired cooling effect.
Technical Parameters of Industrial Air-cooled Chiller
|
Model Item |
ACK-20(D) | |
| nominal cooling capacity | kcal/h | 62126 |
| kw | 72.24 | |
| input power | kw | 19.96 |
| power supply | 3PH 220V 60HZ | |
| refrigerant | type | R407C |
| type of control | thermostatic expansion valve | |
| compressor | type | hermetic scroll |
| power(kw) | 16.2 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow(m3/h) | 25000 | |
| evaporator | type | shell and tube |
| chilled fluid flow(m3/h) | 12.46 | |
| volume(L) | 170 | |
| inlet and outlet pipe diameter(inch) | 2-1/2" | |
| pump | power(kw) | 2.2 |
| lift(m) | 20 | |
| safety protection | compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 1100 |
| dimension | mm | 2200*1300*2020 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Air Cooled Water Chiller:
The air-cooled industrial chiller, also referred to as an air-cooled box-type industrial chiller cooling unit, employs an air-cooled heat dissipation design. It uses built-in fans to draw in ambient air, which then passes through a condenser to release heat, effectively lowering the system temperature. This type of chiller does not require an additional water cooling system, making it relatively easy to install and maintain.
About SZAGS Water Chiller:
This economical water cooling equipment, a high-efficiency water cooler, is designed to save energy, offer a long service life, and operate with simplicity. It features a professional forced air-cooled radiator with high heat dissipation capacity, making it resistant to blockages. Additionally, it is equipped with an alarm output port for quick protection of sensitive components.
Application of SZAGS Chiller:
The easy-to-install SZAGS industrial chiller is widely used in industries such as electronics, electroplating, food processing, machinery, business card printing, and more. An air-cooled chiller is particularly effective in precisely controlling the temperature of plastic forming molds, helping to shorten the molding cycle and accelerate product setting. It is an essential piece of equipment for modern industrial setups.
Installation&Maintenance of SZAGZ Chiller
Maintenance: Air-cooled chillers eliminate the need for cooling towers, water treatment, chiller condenser-tube cleaning, and tower mechanical maintenance.
Installation: Most air-cooled chillers come as packaged systems, which include the air-cooled finned condenser, evaporator, compressor, and evaporator. Some models also feature a built-in water storage tank and pump. These systems are designed and configured at the factory for optimal performance and reliability, simplifying installation and reducing the need for custom design.
About SZAGZ Chiller service?
①24 hours Online support;
②Video guide;
③Overseas third-party support available and etc;
④SZAGS users enjoy lifetime after-sales support.
