Place of Origin:
China
Brand Name:
ANGES/SZAGS
Certification:
CE/ISO9001
Model Number:
AGS-150WDH

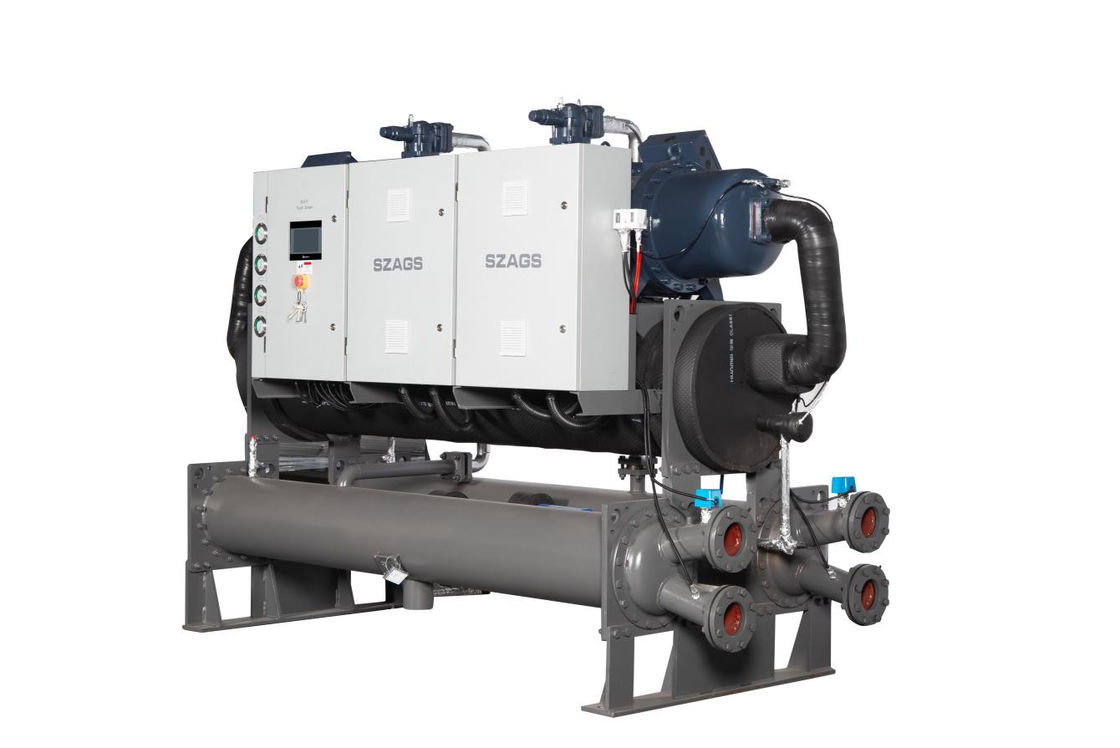

Energy-Efficient 240HP Water-Cooled Screw Chiller for High-Capacity Injection Molding Lines
ANGES/SZAGS chillers are widely used in plastic and rubber machinery, such as injection molding, extrusion, and blow molding, as well as in laser cutting, PCB manufacturing, electroplating, daily-use chemical production, polyurethane foam processing, pharmaceutical applications, laboratories, and many other industrial sectors requiring reliable and efficient cooling solutions.
Technical Parameter of AGS-240ADH Air-cooled Screw Type Chiller
|
Model Parameter |
AGS-240WDH | |
| nominal cooling capacity | kcal/h | 753188 |
| kw | 875.8 | |
| input power | kw | 176.6 |
| max running current | A | 402.5 |
| power supply | 3PH 380V 50Hz | |
| refrigerant | type | R407C |
| refrigerating circuit | 2 | |
| weight(kg) | 168 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| 1 | power(kw) | 88.3×2 |
| quantity | 2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 181 | |
| inlet and outlet pipe diameter (inch) | 5"*2 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 150.6 | |
| inlet and outlet pipe diameter (inch) | 6" | |
| safety protection | compressor over temperature protection, over load protection,high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection, fusible plug | |
| dimension | mm | 4150*1320*2150 |
| net weight | kg | 3920 |
| running weight | kg | 4330 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Typical Applications
Plastics Industry: Cooling for injection molding, extruder shaping, and blow molding
Chemical & Pharmaceutical: Reactor temperature regulation, low-temperature crystallization, and chemical processing
Metal Processing: Cooling for quenching systems, welding equipment, and metal forming processes
Electronics: Temperature control for SMT reflow soldering and circuit board manufacturing
Laser Equipment: Stabilizing temperatures for laser cutting and engraving machines
Food & Beverage: Cooling for food processing, packaging, and refrigeration systems
Electroplating: Temperature control for electroplating baths and surface treatment processes
Environmental: Cooling for water treatment systems, air purification, and waste treatment processes

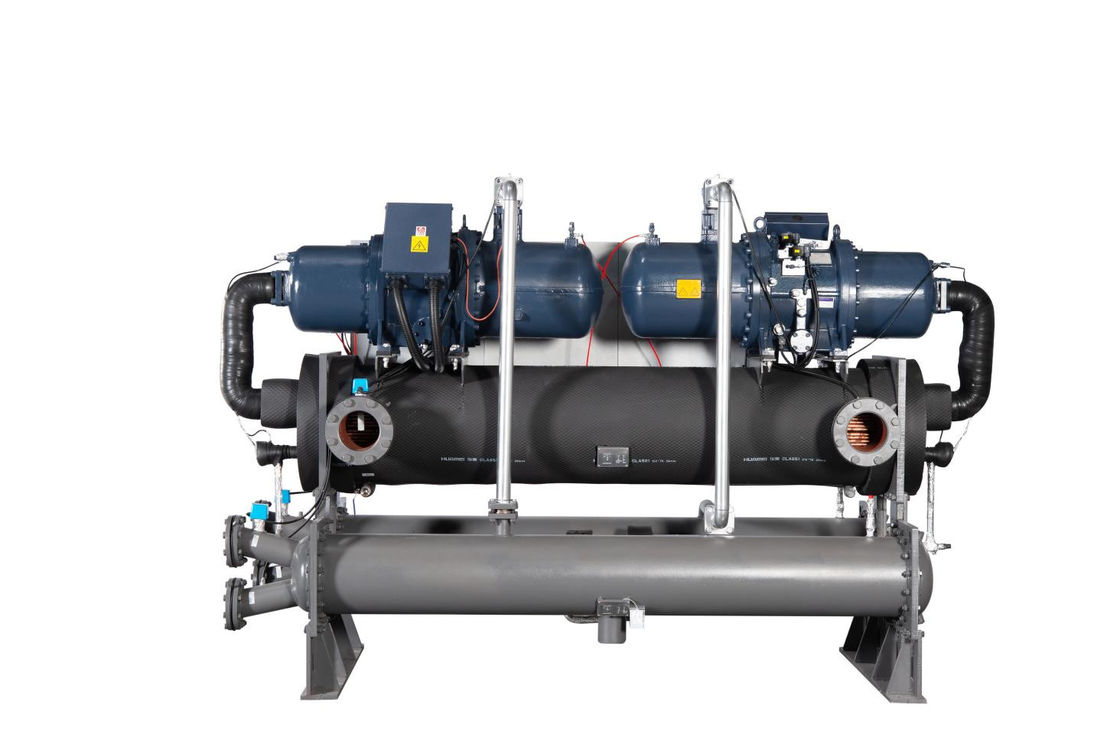

All ANGES/SZAGS water-cooled screw chillers are equipped with internationally recognized semi-hermetic screw compressors, including top brands such as HANBELL, BITZER, REFCOM, and more. These compressors feature a twin-screw gear ratio and advanced linear design, ensuring low energy consumption, outstanding performance, eco-friendliness, and quiet operation.
The system can operate with either a single compressor or a dual-compressor setup, automatically alternating based on load fluctuations. This balance in compressor usage significantly extends the chiller's lifespan.
The chiller is equipped with reinforced copper tubes, both internally and externally threaded, enhancing durability and efficiency. The copper tubes feature a threaded inner surface for optimal heat exchange and a smooth outer surface to minimize resistance.
Designed with advanced CAD technology, the evaporator offers a compact structure and stable performance. It is insulated with 25mm thick PE insulation, effectively preventing condensation and minimizing cooling loss.
The condenser features thicker copper tubes with a trapezoidal, low-resistance design to improve heat transfer efficiency. The smooth surface of the copper pipes reduces water pressure, making cleaning and maintenance easier.
The system is equipped with comprehensive protections, including:
Compressor over-temperature and overload
High and low pressure protection
Flow switch, phase reversal, and phase loss protection
Anti-freezing and fusible plug protection
ANGES has developed an advanced PLC and PC-level control system that offers remote monitoring and control capabilities. The system is user-friendly, requiring only a direct connection to the power supply. It has low failure rates, high safety standards, and easy installation. Parameters can be adjusted in real-time via an intuitive interface. The system is fully compatible with Siemens PLC.
