| Brand Name: | ANGES/SZAGS |
| Model Number: | AGS-150WDH |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export plywooden box |
| Payment Terms: | T/T, MoneyGram |

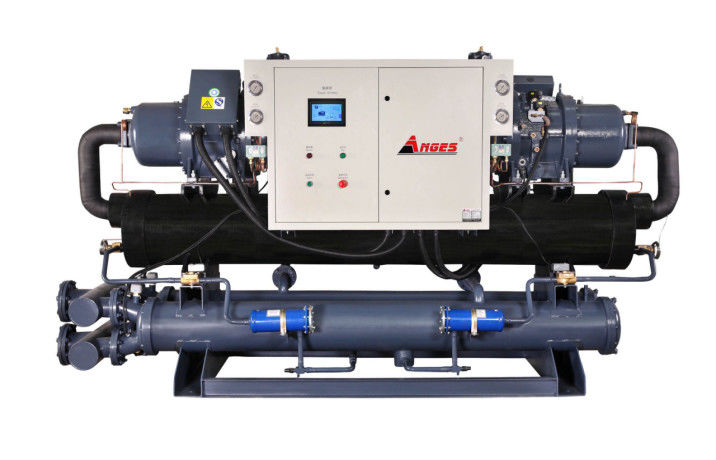

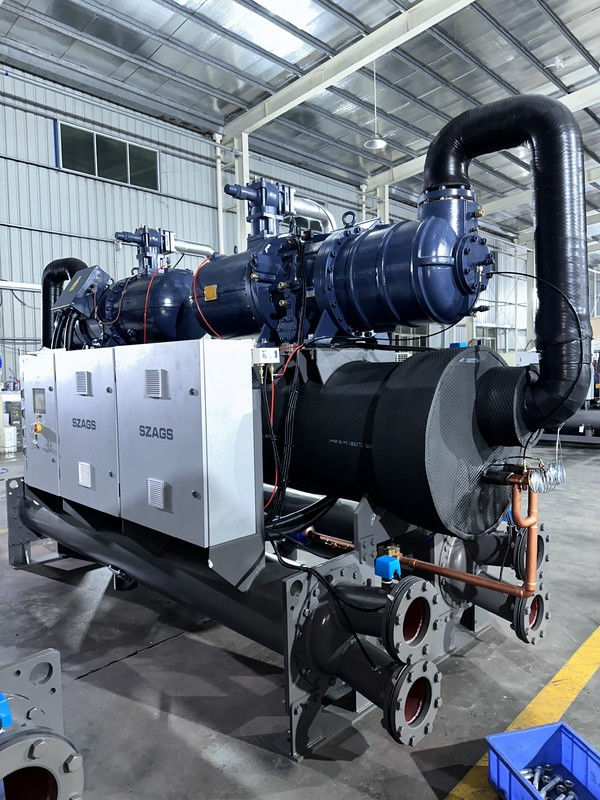

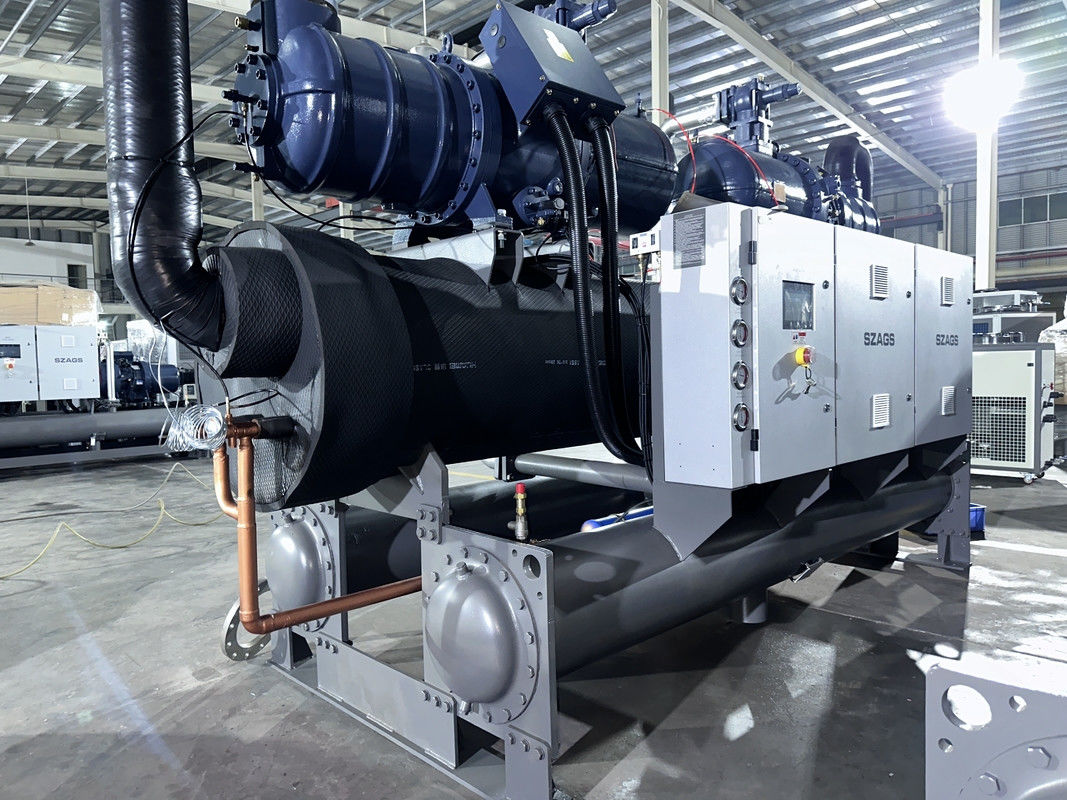

150HP Industrial Water-Cooled Screw Chiller with Dual Compressor System for Optimal Cooling Solutions
ANGES chillers can be widely applied to Plastic & Rubber Machinery (injection machine, extruding machine, bottle blowing machine), daily-use chemical, laser cutting machine, PCB machine, electroplating, equipment of laboratory, chemical, polyurethane Foam,pharmacy and many other areas.
Specification
Technical Parameter of Industrial Air-cooled Chiller
|
Model Parameter |
AGS-150WDH | |
| nominal cooling capacity | kcal/h | 463884 |
| kw | 539.4 | |
| input power | kw | 112.2 |
| max running current | A | 255.7 |
| power supply | 3PH 380V 50Hz | |
| refrigerant | type | R407C |
| refrigerating circuit | 2 | |
| weight(kg) | 105 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| 1 | power(kw) | 56.1×2 |
| quantity | 2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 92.8 | |
| inlet and outlet pipe diameter (inch) | 5" | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 112 | |
| inlet and outlet pipe diameter (inch) | 5"*2 | |
| safety protection | compressor over temperature protection, over load protection,high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection, fusible plug | |
| dimension | mm | 3860*765*1750 |
| net weight | kg | 2610 |
| running weight | kg | 2860 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Compressor
All ANGES/SZAGS water-cooled screw chillers are equipped with internationally recognized semi-hermetic screw compressors, including top brands such as HANBELL, BITZER, REFCOM, and others.
Featuring a twin-screw gear ratio and advanced linear design, these compressors provide low energy consumption, exceptional performance, eco-friendliness, and quiet operation.
Depending on the cooling capacity requirements, the system can utilize either a single compressor or a dual-compressor setup. The compressors automatically alternate operation based on load fluctuations, balancing their usage hours and significantly extending the chiller's lifespan.
Evaporator
The chiller is equipped with internally and externally threaded reinforced tubes, providing increased durability and enhanced efficiency.
The copper pipe features a threaded inner surface and a smooth outer surface, ensuring optimal heat exchange performance.
Designed with the latest CAD technology, the evaporator boasts a compact structure and stable performance. It is also insulated with 25mm thick PE insulation, effectively preventing condensation and minimizing cooling loss.
Condenser
The copper tubes are thicker and designed with trapezoidal, low-resistance shapes to improve heat transfer efficiency. The smooth surface of the copper pipes reduces water pressure and simplifies cleaning and maintenance.
Protection System
The system includes comprehensive protections such as compressor over-temperature, overload, high and low pressure, flow switch, phase reversal and phase loss, anti-freezing, and fusible plug protection.
Control System
ANGES has developed a state-of-the-art PLC and PC-level computer control system, offering remote monitoring and control capabilities. The system is user-friendly, requiring only a direct connection to the power supply. It boasts low failure rates, high safety, and easy installation. Users can adjust parameters based on real-time needs through an intuitive and reliable interface. The system is fully compatible with Siemens PLC.
FAQ
1.What is the MOQ?
1 set.
2.How is the quality of your product?
Our products are produced in strict accordance with national and international standards.We have CE, ISO certification.
Each Anges chiller must be strictly tested before delivery.
3.Could you accept customization?
Yes,We accept OEM and ODM.
4.What is your voltage?
We accept custom voltages from our customers.Such as 220V, 380V, 400V, 440V, 460V, 480V and etc.
|
|
