| Brand Name: | ANGES |
| Model Number: | 100HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

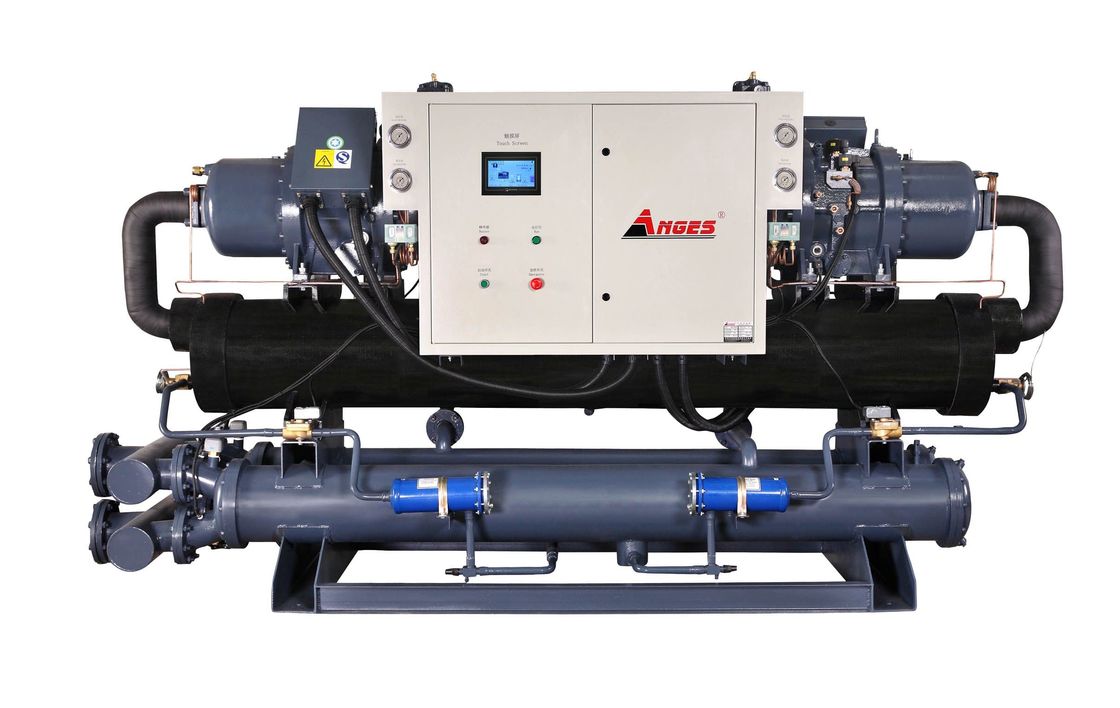

100hp Water-cooled Screw Type Chiller Use For Injection molding machine
The water-cooled screw chiller is an efficient and reliable industrial chiller. Its main component uses a screw compressor, so it is called a water-cooled screw chiller. It uses a screw compressor and water cooling to dissipate heat, and has excellent cooling capacity and stable performance. The chiller is equipped with a cooling tower or cooling water circulation system, and can meet a wide range of industrial needs through heat dissipation of external cooling water.
Water-cooled Low Temperature Screw Type Chiller Specification
|
Model Parameter |
AGS-100WDH | |
| Nominal cooling capacity | Kcal/h | 308052 |
| kw | 358.2 | |
| Input power | kw | 75.6 |
| Max. Running current | A | 172.4 |
| Power supply | 3PH~415V/50HZ | |
| Refrigerant | Type | R407C |
| Type of control | Expansion valve | |
| Compressor | Type | Semi-hermetic screw |
| Power(kw) | 37.8x2 | |
| Start-up mode | Y-△ | |
| Capacity control | 0-33-66-100 | |
| Evaporator | Type | Shell and tube |
| Chilled fluid flow (m3/h) | 61.6 | |
| Inlet and outlet pipe diameter (inch) | 4 | |
| Condenser | Type | Shell and tube |
| cooling water flow (m3/h) | 73.9 | |
| pipe diameter (inch) | 4 | |
| Safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| Net weight | kg | 1920 |
| Dimension | mm | 3140*1030*1750 |
Benefit of industrial chiller applications
How to select the model of the chiller ?
In the production process, the injection molding machine needs to cool the mold to achieve rapid condensation of plastic, improve product quality, and improve production efficiency.
Here, the chiller is indispensable. Chiller used in injection molding machine, through extrusion, blow bottle, thermoplastic, hydraulic system four steps to achieve rapid condensation of plastic.
This shows the importance of the chiller to the injection molding machine. In the selection of chiller should pay attention to:
In mold cooling, the choice of ice water energy depends on its specific heat capacity with the molding material, the temperature at the time of sol, the weight, and the temperature at the time of product release.
In terms of temperature difference, the smaller the temperature difference, the more ice water flow is required to carry away the same heat, and the smaller the ice water flow is require
|
|
