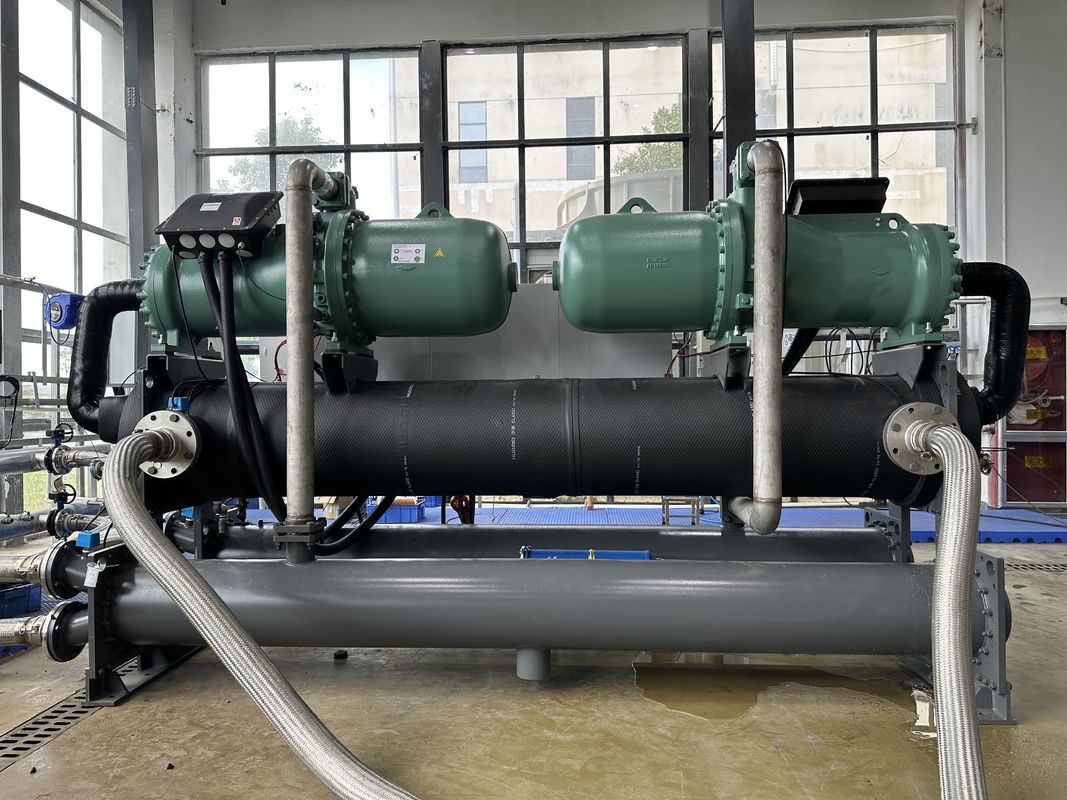

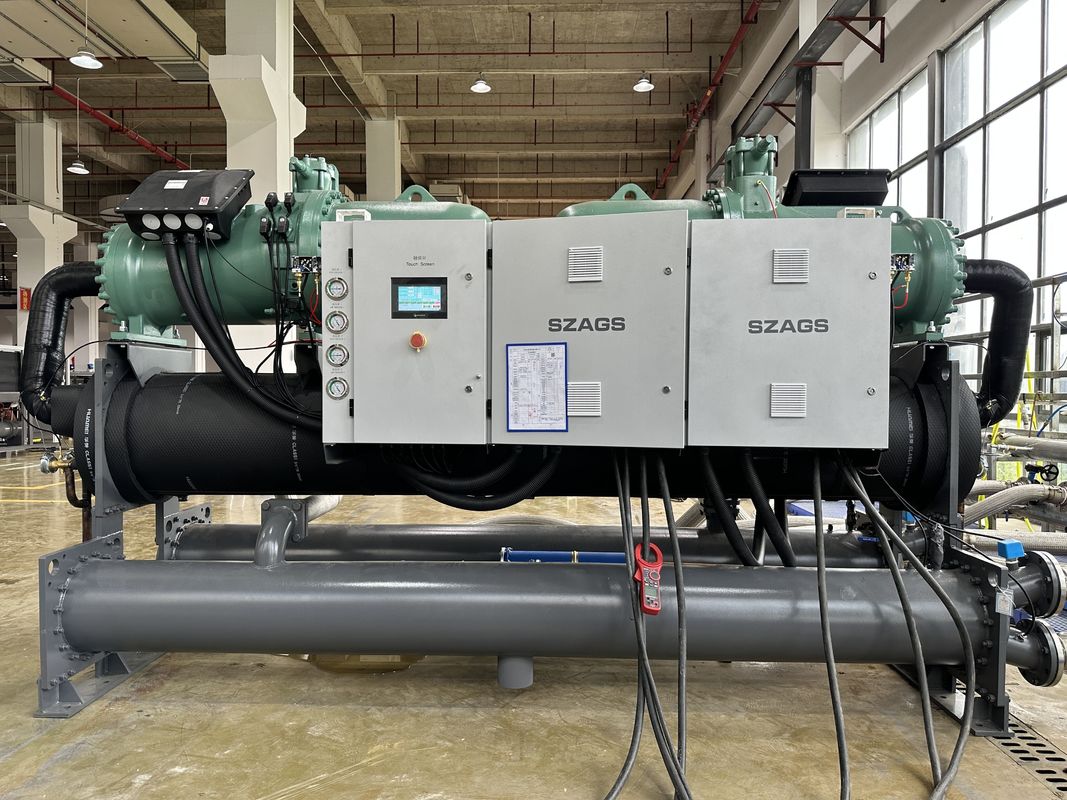

360hp Water-cooled Screw Type Low Temperature Chiller With BITZER Compressor Use For Cooling Pasteurization Machine
The pasteurization method is used to automatically adjust the temperature of various packaged vegetables or canned foods, and the hot water temperature in the sterilization tank is controlled between 80-90℃, which can not only achieve the sterilization effect, but also ensure that nutrients such as protein do not fluctuate within a large temperature range, maintain the original quality of the food, and extend the shelf life of the food without adding preservatives and additives, thereby protecting people's health.
At the same time, the sterilized items are cooled by the cooling water of the chiller and the surface of the packaging is dried by strong wind before packaging and storage, which can extend the storage period of the food.
|
Model Item |
AGS-360WDH | |
| Nominal cooling capacity | kcal/h | 1189380 |
| kw | 1383 | |
| Input power | kw | 273 |
| Max running current | A | 622.6 |
| Power supply | 3PH-380V-50HZ | |
| Refrigerant | Type | R22 |
| Type of control | expansion valve | |
| Compressor | Type | semi-hermetic screw |
| Power(kw) | 136.6×2 | |
| Start-up mode | Y-△ | |
| Capacity control | 0-25-50-75-100 | |
| Evaporator | Type | shell and tube |
| Chilled fluid flow (m3/h) | 237.9 | |
| Pipe diameter (inch) | 8 | |
| Condenser | Type | shell and tube |
| Cooling water flow (m3/h) | 285 | |
| Pipe diameter (inch) | 6×2 | |
| Safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Dimension | mm | 4450*1580*2230 |
| Net weight | kg | 5380 |
| Running weight | kg | 5860 |
How to use chillers to cool pasteurizers
How to select the model of the chiller ?
In the production process, the injection molding machine needs to cool the mold to achieve rapid condensation of plastic, improve product quality, and improve production efficiency.
Here, the chiller is indispensable. Chiller used in injection molding machine, through extrusion, blow bottle, thermoplastic, hydraulic system four steps to achieve rapid condensation of plastic.
This shows the importance of the chiller to the injection molding machine. In the selection of chiller should pay attention to:
In mold cooling, the choice of ice water energy depends on its specific heat capacity with the molding material, the temperature at the time of sol, the weight, and the temperature at the time of product release.
In terms of temperature difference, the smaller the temperature difference, the more ice water flow is required to carry away the same heat, and the smaller the ice water flow is require
|
|
