| Brand Name: | ANGES/SZAGS |
| Model Number: | AGS-150WDH |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export plywooden box |
| Payment Terms: | T/T, MoneyGram |

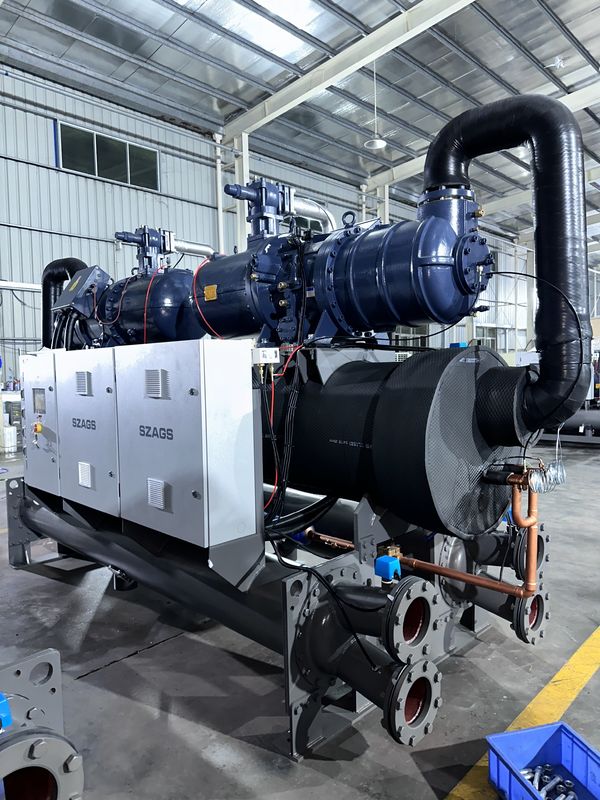

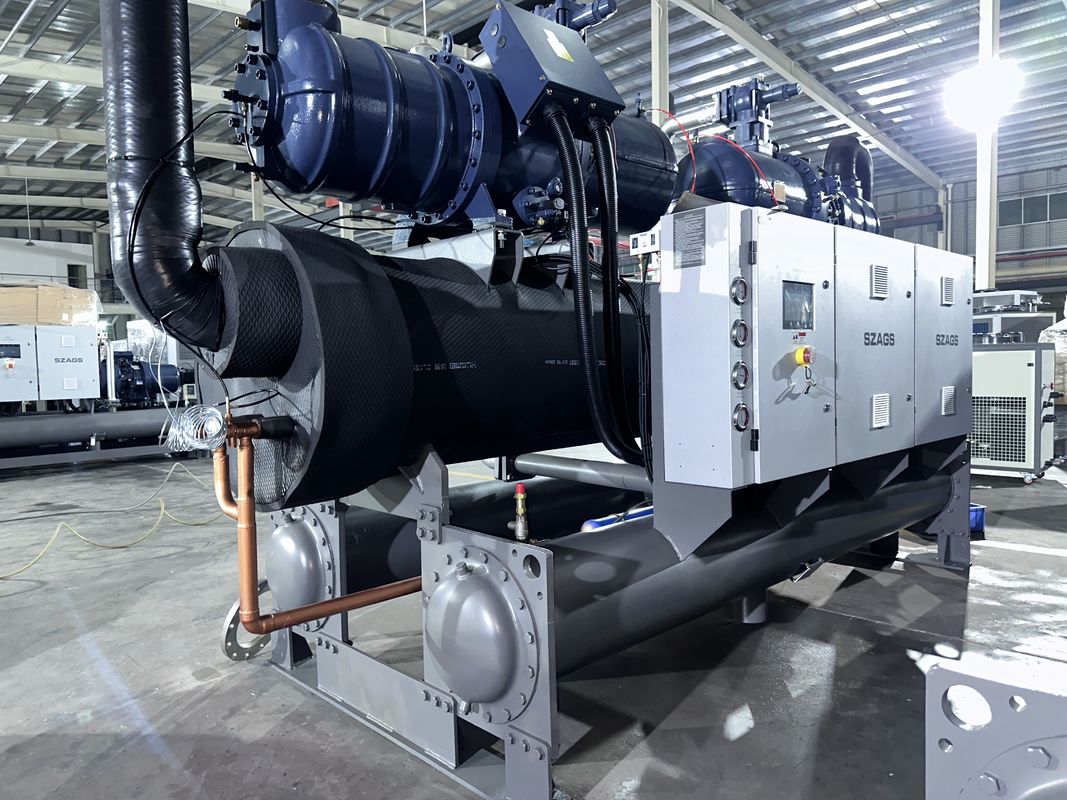

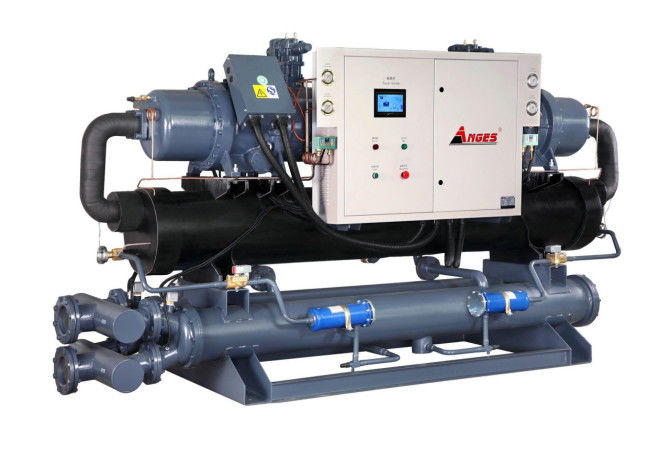

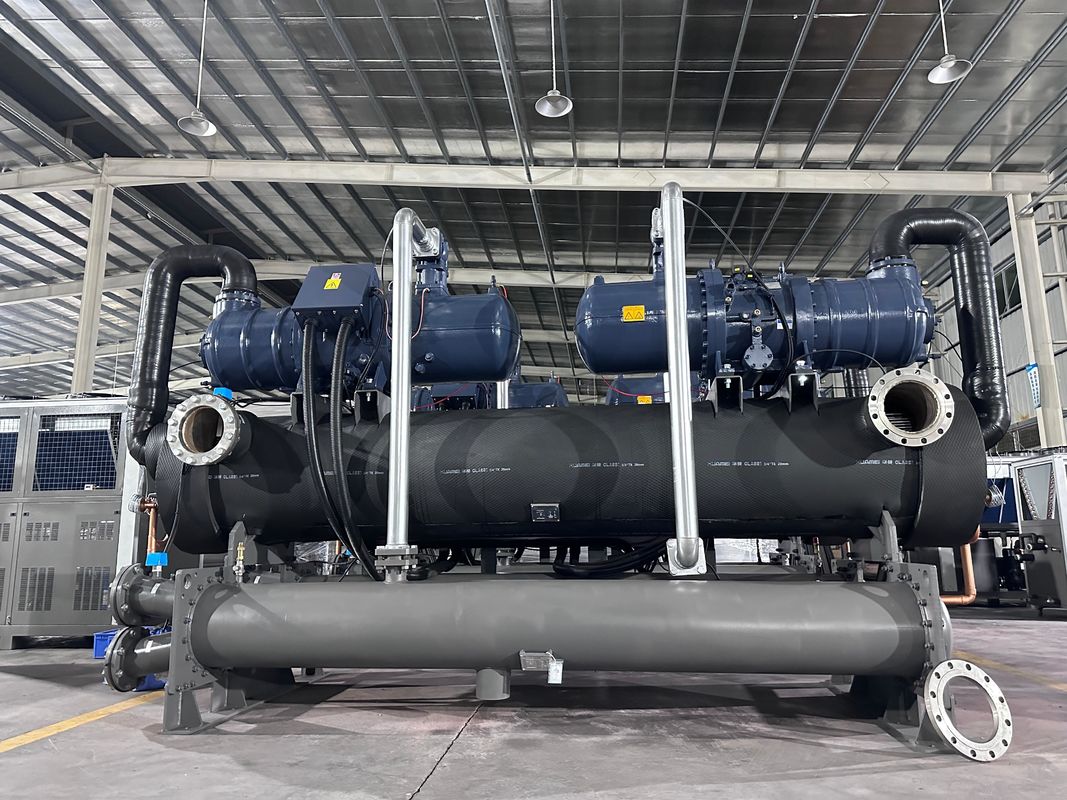

Large Capacity Industrial Water Cooled Screw Chiller with Double compressors System
Water chiller enfriador industrial is a kind of cooling water and recycling refrigeration equipment, almost does not consume water, long-term use can save a lot of water, so compared with the use of tap water emissions to cool the equipment, water chiller промышленный охладитель is a kind of equipment can quickly achieve the perfect cooling effect and save energy equipment. What common point is the use of the chiller is that it can always output cooling water lower than the ambient temperature, where you need to cool down can be used, can be directly cooling, can also be indirect heat transfer.
This ANGES industrial water chiller can alternate operation automatically according to load change, to balancing the operating load of the compressor, greatly extending the working life of the chillers.
Specification
Technical Parameter of Industrial Air-cooled Chiller
|
Model Parameter |
AGS-150WDH | |
| nominal cooling capacity | kcal/h | 463,884 |
| kw | 539.4 | |
| input power | kw | 112.2 |
| max running current | A | 255.7 |
| power supply | 3PH 380V 50Hz | |
| refrigerant | type | R22 |
| refrigerating circuit | 2 | |
| weight(kg) | 105 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| 1 | power(kw) | 56.1×2 |
| quantity | 2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 112 | |
| inlet and outlet pipe diameter (inch) | 5" | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 92.8 | |
| inlet and outlet pipe diameter (inch) | 5" | |
| safety protection | compressor over temperature protection, over load protection,high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection, fusible plug | |
| dimension | mm | 3860*765*1750 |
| net weight | kg | 2610 |
| running weight | kg | 2860 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Compressor
1. All the Anges/SZAGS water cooled screw chillers adopt world famous brand semi-hermetic screw and semi-hermetic reciprocating compressors, such as HANBELL, BITZER, REFCOM and etc.
2. Twin-screw gear ratio and advanced linear design, low energy consumption and eco-friendly; good performance, low noise.
3. According to the cooling capacity need, adopt single compressor or twin compressors circuits system; The compressors can automatically run alternately according to the load change, and balance the running hours of each compressor, which greatly prolongs the chillers working life.
Evaporator
1. Adopt the internally and externally threaded reinforced tubes.
2. The inside surface of the copper pipe is threaded, the outside surface of the copper pipe is smooth, so that can ensure the good heat exchange efficient.
3. The evaporator design running with the latest CAD design technology, CNC production and processing, compact structure , stable performance. And outside insulated with 25mm thick PE insulation, no condensation, less cooling loss.
Condenser
Copper tubes more thicker and processed into trapezoidal low-assistance tubes to enhance heat transfer capacity. The surface of the copper pipe is smooth, which reduces the water pressure and ieasy to clean and maintain.
Protection System
Compressor over temperature protection, over load protection,high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection, fusible plug.
Control System
ANGES has developed a highly intelligent PLC and PC-level computer control system, which can be used for remote monitoring and control. Simple operation, connect with power supply directly, with lower failure, and high safety factor, easy installation. User can set the parameter as real working need, intuitive and reliable; SIMENS PLC is workable.
FAQ
1.What is the MOQ?
1 set.
2.How is the quality of your product?
Our products are produced in strict accordance with national and international standards.We have CE, ISO certification.
Each Anges chiller must be strictly tested before delivery.
3.Could you accept customization?
Yes,We accept OEM and ODM.
4.What is your voltage?
We accept custom voltages from our customers.Such as 220V, 380V, 400V, 440V, 460V, 480V and etc.
5.How is your price?
We will give a best discount to our customers.
6.What is your contact information?
Contact: Ms Jacey
Company: Shenzhen Anges Machinery Co., Ltd
Website: https://www.agschiller.com/
Tel/Whatsapp/Wechat:+86 13878921490
Email: anges07@agschiller.com
|
|
