250HP Screw Type Chiller Shelli And Tube Chiller Package Unit For Blowing Molding Industriy

250HP Screw Type Chiller Shelli And Tube Chiller Package Unit For Blowing Molding Industriy

Blowing Molding Screw Type Chiller

Shelli And Tube Chiller Package Unit

250HP Screw Type Chiller

Place of Origin:

China

Brand Name:

ANGES

Certification:

ISO9001, CE

Model Number:

250HP

Contact Us

Request A Quote
Product Details
Machinery Test Report:
Provided
Control System:
PLC
Refrigerant:
R-134a/R-410a/R-407c
Type Of Evaporator:
Shell And Tube
Model:
AGS-250WSH
Condenser Type:
Shell And Tube
Chilled Water Flow:
194m3/h
Condition:
Brand New
Price Term:
EXW, FOB, CIF
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
L/C, T/T
Product Description

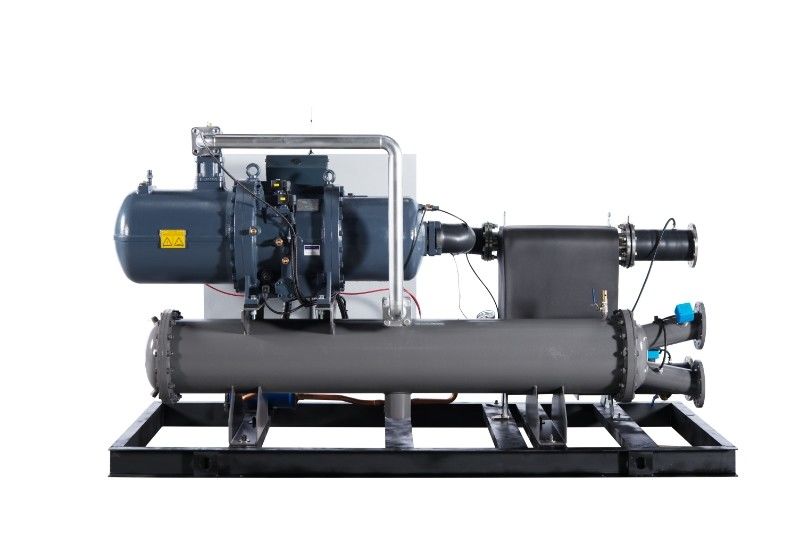

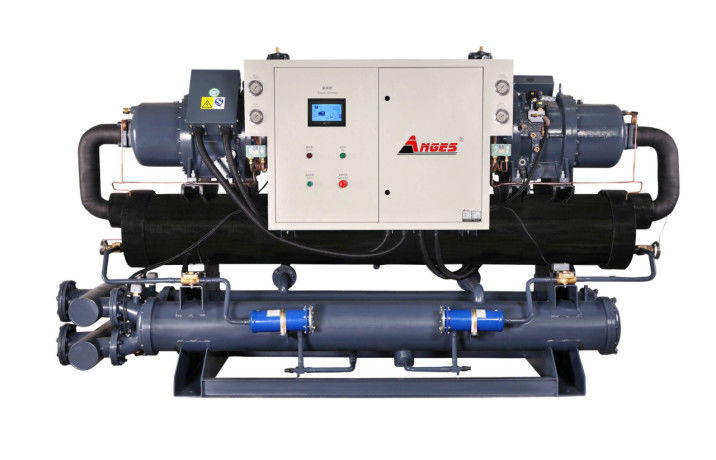

AGS Series Screw Type Water Cooled Singe-compressor Chiller Unit

250HP Screw Type Chiller Shelli And Tube Chiller Package Unit For Blowing Molding Industriy 0

Advanced refrigeration technology

Continuous cooling during the plastic moulding process improves productivity and production quality, and the control of the water temperature becomes very important. the AGS series of screw water-cooled chillers refrigeration, water circulation and electrical systems have been developed to meet the needs of the plastic moulding process.



Fields of application

It is mainly used in injection moulding, extrusion moulding, blow moulding, shoe-making, printing, marking, engraving, welding, chemical industry and many other industries.

Features And Functions

1.World famous brand new type and high-efficient screw-rotor compressor, with efficiency 20%~30% higher than those common ones. It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

2.Designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.

3.High efficiency double filtration oil separator ensures maximum heat exchage.

4.Efficient, low noise and small vibration.



Specification

Item AGS-250WSH
nominal cooling capacity kcal/h 811066
kw 943.1
input power kw 183
max running current A 417.1
Power supply 3PH-380V-50HZ
Refrigerant type R22
type of control expansion valve
Compressor type semi-hermetic screw
Power(kw) 183
start-up mode Y-△
capacity control(%) 0-25-50-75-100
Evaporator type shell and tube
chilled fluid flow (m3/h) 162.2
Inlet/outlet pipe caliber(inch) 6
Conderser type shell and tube
cooling water flow(m3/h) 194
Inlet/outlet pipe caliber(inch) 6
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension mm 3890*1550*2020
net weight kg 3160
running weight kg 3420



Water chiller service from manufacturer


We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
1.All the chillers are provided with 12 months free maintenance service.
2.Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
3.If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
4.Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
5.Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
