60hp Water-cooled Screw Type Chiller Use For Plastic Factory

60hp Water-cooled Screw Type Chiller Use For Plastic Factory

Plastic Factory Water-cooled Screw Chiller

60hp Screw Type Chiller

60hp Water-cooled Screw Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

60HP

Contact Us

Request A Quote
Product Details
Compressor:
Hanbell
Expansion Valve:
Emerson
Condenser:
ANGES
Evaporator:
ANGES
Solenoid Valve:
Emerson
Drying Filter:
Emerson
Oil Pressure Gauge:
REFCO
Touch Screen:
WEINTEK
PLC Controller:
Siemens
Electrical Components:
Schneider
Fan:
Nangbeng
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

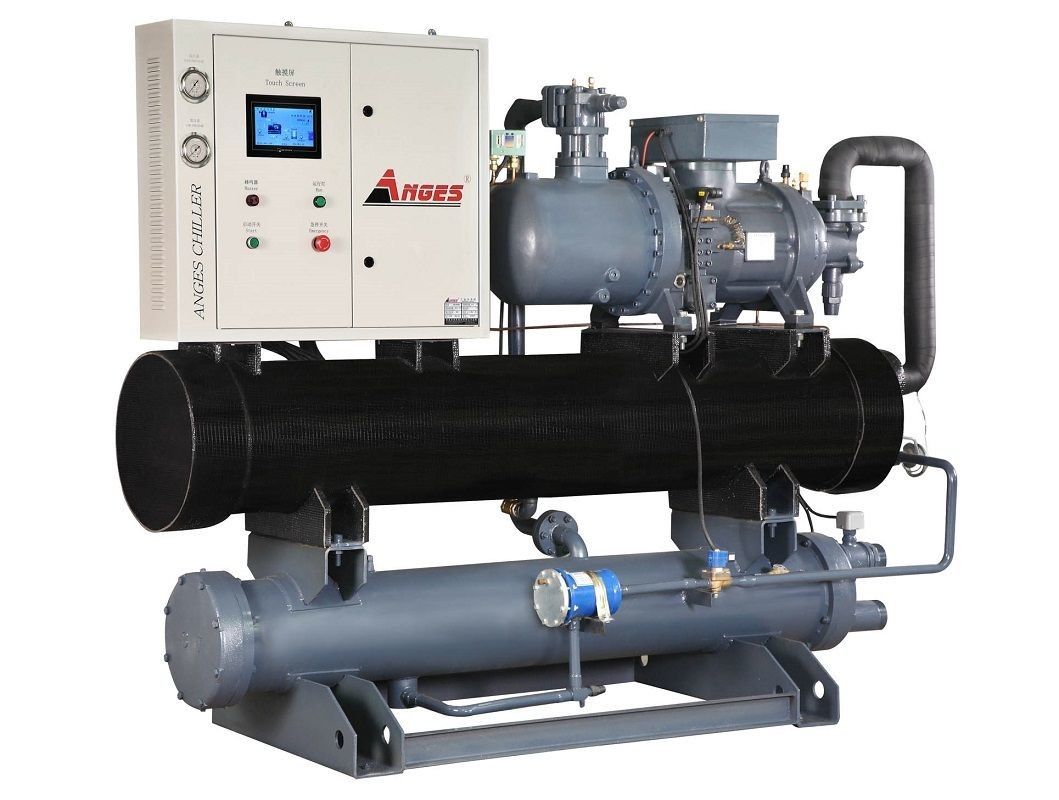

60hp Water-cooled  Screw Type Chiller Use For Plastic Factory
The water-cooled screw chiller is an efficient and reliable industrial chiller. Its main component uses a screw compressor, so it is called a water-cooled screw chiller. It uses a screw compressor and water cooling to dissipate heat, and has excellent cooling capacity and stable performance. The chiller is equipped with a cooling tower or cooling water circulation system, and can meet a wide range of industrial needs through heat dissipation of external cooling water.
Water-cooled Low Temperature Screw Type Chiller Specification



Model

Parameter

AGS-060WSH
Nominal cooling capacity Kcal/h 176300
  kw 205
Input power kw 42.9
Max. Running current A 97.8
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Expansion valve
Compressor Type Semi-hermetic screw
  Power(kw) 42.9
  Start-up mode Y-△
  Capacity control 0-25-50-75-100
Evaporator Type Shell and tube
  Chilled fluid flow (m3/h) 34.7
  Inlet and outlet pipe diameter (inch) 3
Condenser Type Shell and tube
  cooling water flow (m3/h) 42
  pipe diameter (inch) 3
Safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
Net weight kg 1120
Dimension mm 2515*985*1727




Benefit of industrial chiller applications

  • Water chiller provide constant temperature and constant water flow chilled water to the production line, to increased production speed and ensure efficiency production.
  • Industrial process chiller use to maintain constant and precise control of the process temperature.
  • Industrial chillers help keep your equipment at a safe operating temperature preventing undesirable repair downtime that might slow or even halt production altogether.


How to select the model of the chiller ?

  1. In the production process, the injection molding machine needs to cool the mold to achieve rapid condensation of plastic, improve product quality, and improve production efficiency.

  2. Here, the chiller is indispensable. Chiller used in injection molding machine, through extrusion, blow bottle, thermoplastic, hydraulic system four steps to achieve rapid condensation of plastic.

  3. This shows the importance of the chiller to the injection molding machine. In the selection of chiller should pay attention to:

  4. In mold cooling, the choice of ice water energy depends on its specific heat capacity with the molding material, the temperature at the time of sol, the weight, and the temperature at the time of product release.

  5. In terms of temperature difference, the smaller the temperature difference, the more ice water flow is required to carry away the same heat, and the smaller the ice water flow is require
