Brand Name: | ANGES |
Model Number: | 100HP |
MOQ: | 1 |
Packaging Details: | Plywood case |
Payment Terms: | T/T, L/C |

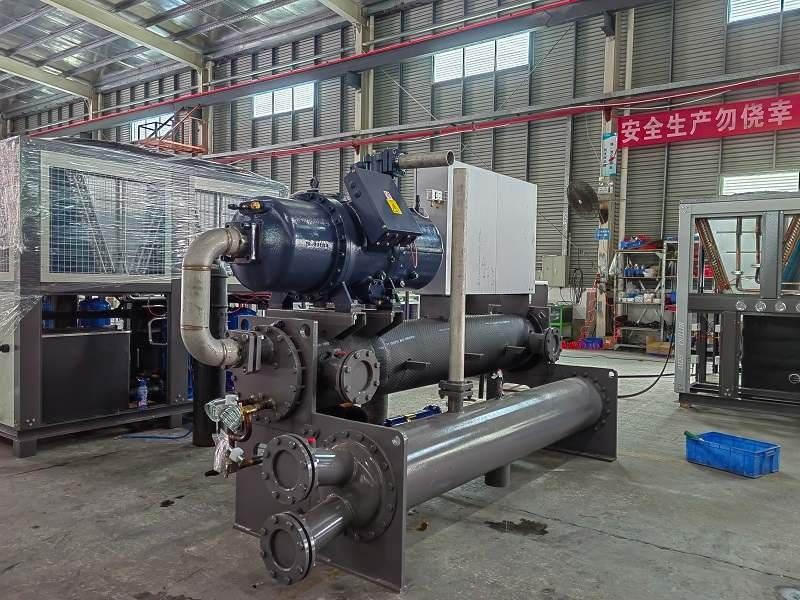

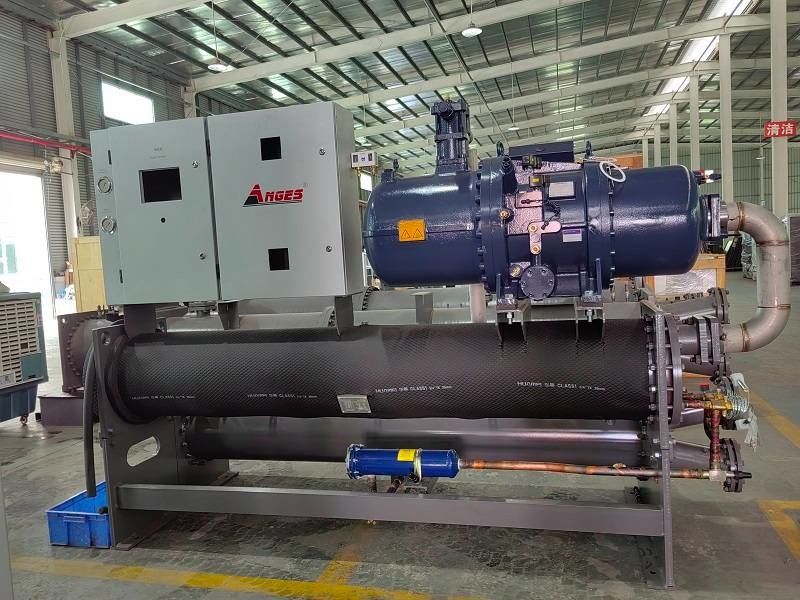

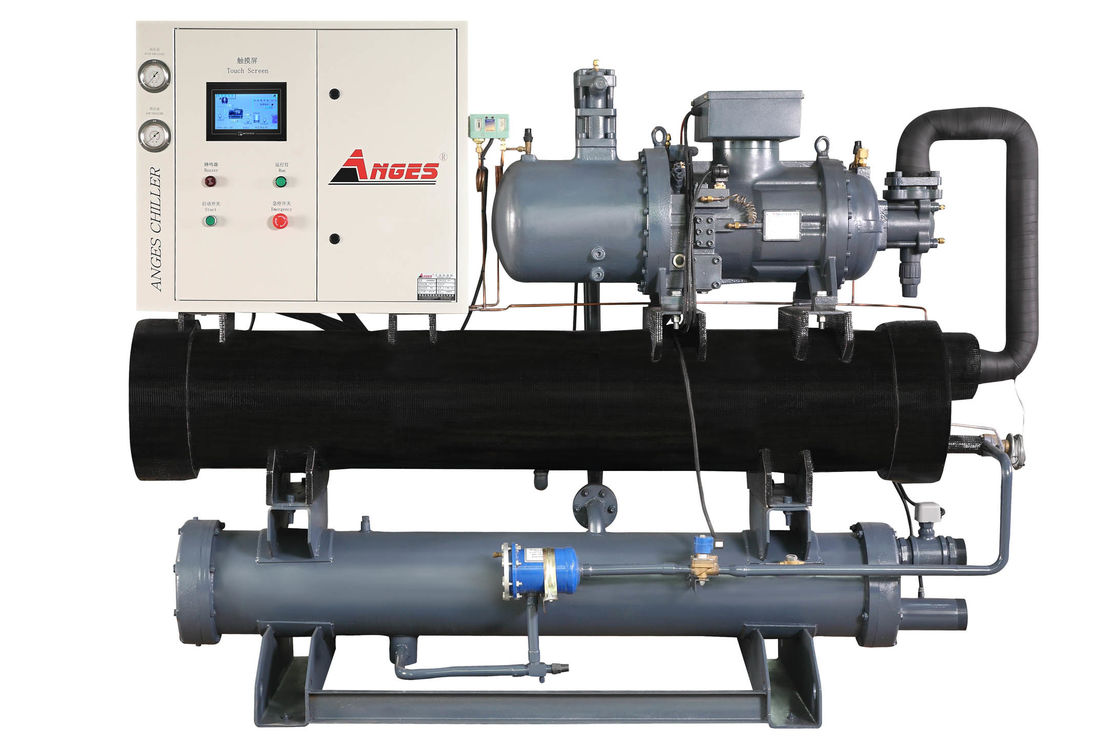

100hp Water-cooled Low Temperature Screw Type Chiller At Ethylene Glycol Output -30℃ Use For Beverage Factory
Anges Water-cooled Low Temperature Screw Type Chiller is a new generation of low-temperature refrigeration equipment carefully designed and developed for special industries such as medicine, chemical industry, and food.
Its temperature range can be selected from 0°C to -30°C. The refrigerant is ethanol or glycol aqueous solution or brine (sodium chloride or calcium chloride)
Water-cooled Low Temperature Screw Type Chiller Specification
Model Item |
AGS-100WSL | |
Nominal cooling capacity | kcal/h | 66822 |
kw | 77.7 | |
Input power | kw | 73.7 |
Max running current | A | 167.2 |
Power supply | 3PH-380V-50HZ | |
Refrigerant | Type | R404A |
Type of control | Expansion valve | |
Compressor | Type | Semi-hermetic screw |
Power(kw) | 73.7 | |
Quantity | 1 | |
Start-up mode | Y-△ | |
Capacity control | 25-50-75-100 | |
Evaporator | Type | Shell and tube |
Chilled fluid flow (m3/h) | 59.4 | |
Pipe diameter (inch) | 4 | |
Condenser | Type | Shell and tube |
Cooling water flow (m3/h) | 46.8 | |
Pipe diameter (inch) | 4 | |
Safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
Dimension | mm | 2750*1050*1600 |
Net weight | kg | 1720 |
Running weight | kg | 1960 |
Application features of special chiller for carbonated beverage production line:
1. The customized chiller for the carbonated beverage production line meets the safety and hygiene requirements of the beverage production line.
2. The customized chiller is equipped with a microcomputer intelligent temperature controller and a high-precision digital display. The precise temperature control accuracy is ±1℃, and the setting operation is simple.
3. The chiller uses imported high-quality compressors with built-in safety protection and reliable operation. The sleeve-type condenser is equipped with threaded copper tubes, which has high heat exchange efficiency and fast and stable cooling.
4. It adopts stainless steel shell design, which is easy to disassemble, use, maintain and maintain. It has side air inlet and exhaust and good heat dissipation.
5. The chiller is equipped with a stainless steel insulation box, with built-in automatic water replenishment and automatic temperature control. External pipes, water pumps, etc. are all made of stainless steel.
Benefit of industrial chiller applications
How to select the model of the chiller ?
In the production process, the injection molding machine needs to cool the mold to achieve rapid condensation of plastic, improve product quality, and improve production efficiency.
Here, the chiller is indispensable. Chiller used in injection molding machine, through extrusion, blow bottle, thermoplastic, hydraulic system four steps to achieve rapid condensation of plastic.
This shows the importance of the chiller to the injection molding machine. In the selection of chiller should pay attention to:
In mold cooling, the choice of ice water energy depends on its specific heat capacity with the molding material, the temperature at the time of sol, the weight, and the temperature at the time of product release.
In terms of temperature difference, the smaller the temperature difference, the more ice water flow is required to carry away the same heat, and the smaller the ice water flow is require
