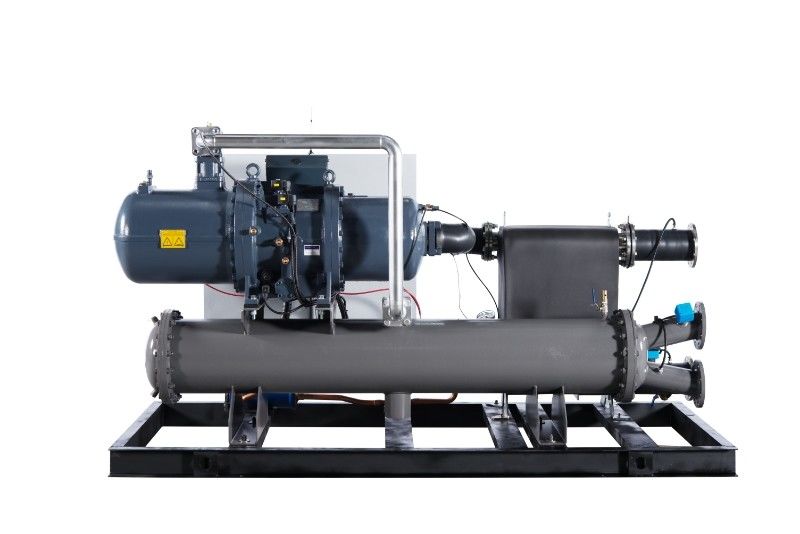

85ton 85Hp Water Cooled Chiller Hanbell Screw Compressor With Plate Evaporator

85ton 85Hp Water Cooled Chiller Hanbell Screw Compressor With Plate Evaporator

Place of Origin:

China

Brand Name:

ANGES

Model Number:

85HP

Contact Us

Request A Quote
Product Details
Voltage:
220v/380v/415v/460v/480v
Ambient Temperature:
5-45℃
Capacity Control:
0,66,100 ; 0,50,75,100
Chilled Water Outlet Temperature:
5-20℃
Optional Compressor Brands:
Hanbell/Copeland/Bitzer
Cooling Temperature:
5℃-35℃
Core Components:
PLC,condenser,evaporator
Energy Control:
25-50-75-100%
Freezing Water Flow:
41.2m3/h
Machine Size:
2935*985*1875mm
Machinery Test Report:
Provided
Pipe Connection:
4 Inch
Temperature:
5℃~30℃
Temperature Range:
7-35℃
Current Frequency:
50Hz/60Hz
Water Cooling Tower:
Need
Capacity:
317.83KW
Compressor Power:
317.8kw
Compressor Qty:
1
Condenser Quantity:
1 Piece
Cooling Tower:
Need
Cooling Type:
Water Cooled
Model:
AGS-085WSH
PlC Controller:
Siemens
Warranty:
1 Year
Weight:
Customized
Payment & Shipping Terms
Minimum Order Quantity
0
Price
Negotiable
Packaging Details
Plywood case
Delivery Time
35 days
Payment Terms
T/T, L/C, T/T, L/C
Product Description

85ton 85Hp Water Cooled Chiller Hanbell Screw Compressor With Plate Evaporator



Water cooled chiller



Anges chillers are divided into two types: air-cooled chillers and water-cooled chillers.

Chillers can be classified into low-temperature chillers and ambient temperature chillers in terms of temperature control.

The ambient temperature chillers typically control the water temperature between 0 and 35 degrees Celsius.

The temperature control of low-temperature chillers is usually between 0 degrees and minus 30 degrees Celsius.

We have a strong design expertise and collaborations with various plastic industries.

Specification for chilled water system



Model

Item

AGS-85WSH
Nominal cooling capacity ton 85
  kW 317.8
Input power kW 55
Power supply 3PH~380V/50HZ
Refrigerant Type R407C/R22/R134a/R410a
  Type of control Expansion valve
Compressor Type Semi-hermetic screw type
  Power (kw) 63.7
Condenser Type Shell and tube
  Cooling water flow(m3/h) 66
Evaporator Type Plate
  Chilled water flow(m3/h) 54.7
  Inlet/outlet pipe chiller(inch) 4
Safety protection Compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 1720
Dimension mm 2200*2000*2053


Characteristics of Anges water-cooled Screw Chillers

The 85-ton water-cooled chiller unit is equipped with a well-known brand screw compressor and refrigerant circuit. The screw compressor has multiple advantages, including low energy consumption, extended lifespan, and optimal stability.

This chiller can serve as a central cooling system, capable of cooling various processes, and is easy to install, operate, and maintain.

The efficient shell and tube evaporator ensure excellent refrigeration performance and low condensing temperature, making it an ideal choice for large and medium-sized refrigeration systems.

Furthermore, it operates efficiently even in hot weather conditions by utilizing R134a refrigerant.

The digital intelligent temperature control device is another highlight, providing precise measurement and control of water temperature ranging from 5 to 35 degrees Celsius.

The chiller's protection system includes comprehensive features such as compressor overheat protection, high and low pressure protection, phase/sequence protection, flow protection, and anti-freeze protection.

We offer customized solutions for electroplating applications, delivering optimal results tailored to your specific needs. Our solutions are unique and designed to meet your requirements.

Advantages of Anges Industrial Chillers:

The system maintains constant and precise control of process temperature.
It allows direct delivery of coolant to the heat source of the application, thereby enhancing production speed and efficiency through its precise temperature control function.
The system ensures the highest quality of the final product.
Additionally, the cooling system prevents damage to heat-sensitive industrial components and minimizes unplanned maintenance downtime that could potentially halt the production process completely.
Characteristics and Advantages of the Anges Chiller Unit:

High cooling capacity of up to 85 tons.
Temperature control range from 5°C to 35°C.
Hanbell/Bitzer/Grasso screw compressors.
Compact design, energy-saving, and easy maintenance.
Long warranty period of up to 12 months after purchase.
