| Brand Name: | SZAGS |
| Model Number: | AGS-150WDH |
Water cooled screw chillers provide efficient and reliable industrial refrigeration and cooling solutions for a variety of applications. Our screw chillers feature advanced screw compressors, refrigerant R22/R407C/R134A, 3P/4P power supply, IP54 protection level, and noise level of ≤65dB(A).
Our water cooled screw chillers are of high quality and provide excellent cooling performance with low energy consumption and high energy efficiency. We have a variety of models to suit your needs, from air-cooled to water-cooled. Our water cooled screw chillers are perfect for cooling mold, controlling temperature in industrial processes, and for building large scale water cooled chiller plants.
Model | AGS-280WDH | |
| Nominal cooling capacity | kcal/h | 915040 |
| kw | 1064 | |
| Input power | kw | 212 |
| Max running current | A | 482.3 |
| Power supply | 3PH-380V-50HZ | |
| Refrigerant | Type | R22 |
| Type of control | expansion valve | |
| Compressor | Type | semi-hermetic screw |
| Power(kw) | 105.8×2 | |
| Start-up mode | Y-△ | |
| Capacity control | 0-25-50-75-100 | |
| Evaporator | Type | shell and tube |
| Chilled fluid flow (m3/h) | 183 | |
| Pipe diameter (inch) | 6 | |
| Condenser | Type | shell and tube |
| Cooling water flow (m3/h) | 219 | |
| Pipe diameter (inch) | 5×2 | |
| Safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Dimension | mm | 4250*1320*2150 |
| Net weight | kg | 4230 |
| Running weight | kg | 4560 |

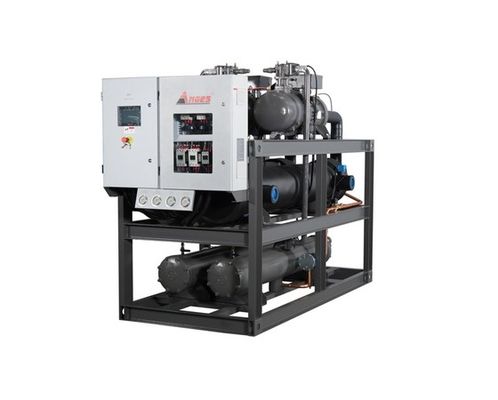

SZAGS AGS-280WDH water cooled screw chiller is designed for commercial and industrial applications, providing efficient and reliable cooling performance while operating with a low energy consumption and high energy efficiency. It is suitable for ambient temperatures ranging from -10℃ to +45℃.
The SZAGS AGS-0WDH water cooled screw chiller utilizes a shell and tube type condenser, with a frequency of 50HZ/60HZ, and a cooling capacity of 50-1000KW. It is controlled by a microcomputer, allowing for precise and consistent temperature control.
The SZAGS AGS-280WDH is an ideal choice for water cooled chiller plants and other commercial and industrial applications. It is designed for efficiency and reliability, ensuring a long service life with minimal maintenance and maximum energy savings.
We provide technical support and service for our water cooled screw chillers. Our support staff are highly trained and experienced in the installation, maintenance, and repairs of these chillers.
We offer regular maintenance and service plans to ensure your chiller runs efficiently and effectively. Our technicians are available 24/7 to answer any questions or concerns you may have.
We also provide on-site visits and emergency services to address any urgent issues with your chiller. Our technicians are highly skilled in diagnosing and repairing any problem. We can also provide spare parts and replacements when necessary.
Contact us today to learn more about our water cooled screw chiller technical support and service.
|
|
