Hvac 60HP Industrial Chiller Integrated System 12 Months Warranty
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | 60hp |
| Minimum Order Quantity | 1 |
| Packaging Details | Plywood case |
| Delivery Time | 25 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Water Cooled Screw Chiller | Capacity | 201.6kw |
|---|---|---|---|
| Compressor | Screw Type | Compressor Power | 60hp |
| Condenser | Shell And Tube | Evaporator | Shell And Tube |
| Voltage | 3PH~220V/380V/415V~50HZ/60HZ | Condition | Brand New |
| Dimension(l*w*h) | 3300*2250*1883 | Warranty | 12 Months |
| Refrigerant | R22/R134a/R407c | Weight | 1930kg |
| Temperature | 5°C~30°C | ||
| High Light | 60HP Industrial Chiller Integrated System,Hvac Industrial Chiller Integrated System,60HP Water Chiller Hvac |
||
Product Description
Hvac 60HP Industrial Chiller Integrated System 12 Months Warranty
60HP Integrated Screw Type Water Chiller
60ton Screw Chiller 60ton Water Chiller Package Unit Central Chiller Hvac Water Cooled Chiller Package Outdoor Chiller

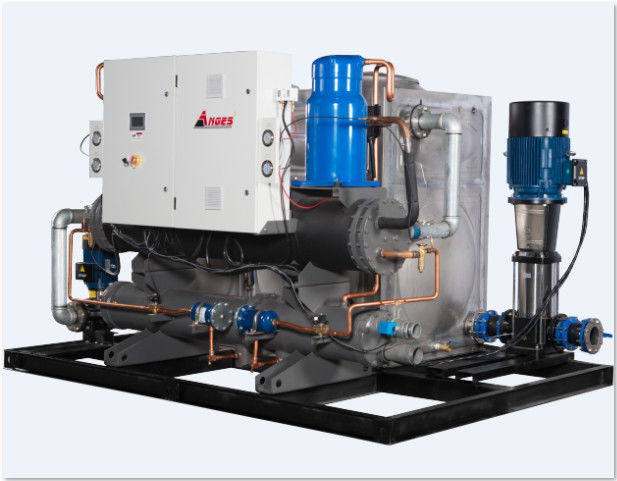

This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.
|
Item |
AGS-60WSHI | |
| nominal cooling capacity | kcal/h | 173376 |
| kw | 201.6 | |
| input power | kw | 56 |
| max running current | A | 127.4 |
| power supply | 3PH-380V-50HZ | |
| refrigerant | type | R22 |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| Power(kw) | 42.9 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 34.7 | |
| pipe diameter (inch) | 3 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 43.3 | |
| pipe diameter (inch) | 3” | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Tank | L | 2000 |
| External circulation pump | Power(kw) | 7.5 |
| Lift(m) | 24.6 | |
| Internal circulation pump | Power(kw) | 5.5 |
| Lift(m) | 20 | |
| dimension | mm | 3300*2250*1883 |
| net weight | kg | 1930 |
| running weight | kg | 4100 |
Featurers of water cooled screw refrigeration chiller
- Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.
- Stable performance: Anges packaged water cooled screw chiller equipted original famous brand Semi-hermetic screrw compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality. Smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
- Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
- Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
- Simple installation and operation: This 120ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.
Water chiller service from manufacturer
We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
- All the chillers are provided with 12 months free maintenance service.
- Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
- If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
- Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
- Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
