120 Ton Industrial Chiller Integrated System 120hp

120 Ton Industrial Chiller Integrated System 120hp

120 Ton Industrial Chiller Integrated System

Industrial Chiller Integrated System 120hp

120hp portable water cooled chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water Cooled Screw Chiller
Screw Type
Compressor Power:
Internal Pump:
100m³/hr, 2bar
External Pump:
100m³/hr, 2bar - 8bar
R22, R407c, R134a
Expansion Valve:
Danfoss Or Emerson
Chiller Service:
Online Support, Video Technical Support, Site Service In Some Areas
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
25 days
Payment Terms
T/T, L/C
Product Description

120ton Screw Chiller 120ton Water Chiller Package Unit Central Chiller Hvac Water Cooled Chiller Package Outdoor Chiller

This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.



nominal cooling capacity kcal/h 376594
kw 437.9
input power kw 114
max running current A 260.5
power supply 3PH~380V/50HZ
refrigerant type R22
Kg 68
refrigerating circuit 1
type of control expansion valve
compressor type semi-hermetic screw
Power 88.3
quantity 1
start-up mode Y-△
capacity control 0-25-50-75-100
condenser type shell and tube
Water flow (m3/h) 94
inlet and outlet pipe diameter (inch) 5

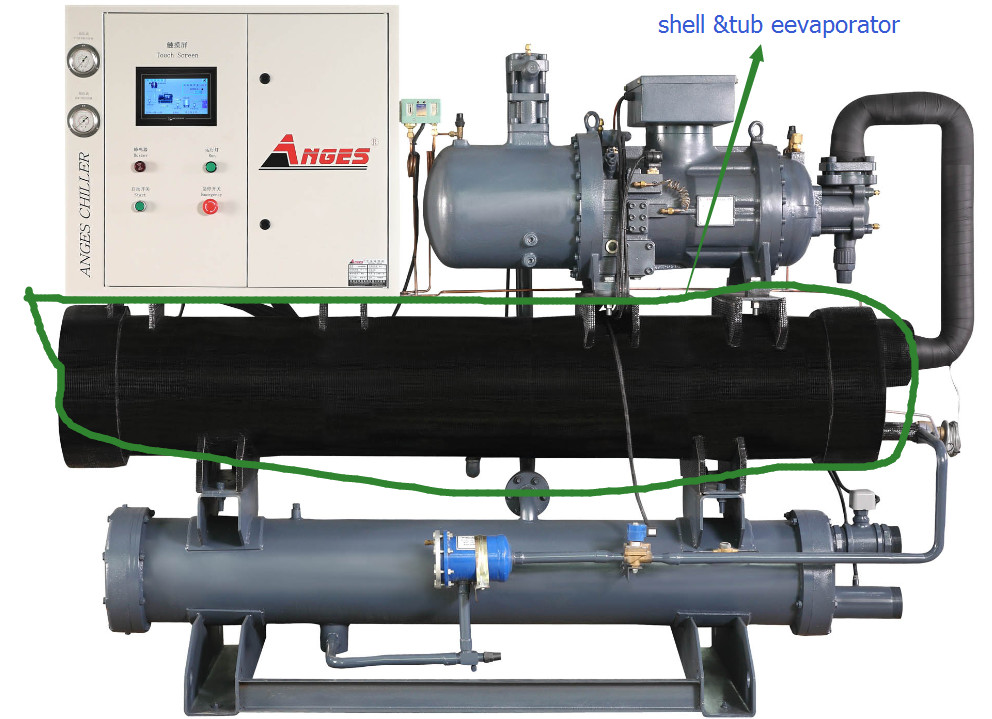

evaporator type shell and tube
chilled fluid flow (m3/h) 75
inlet and outlet pipe diameter (inch) 5
Tank L 4000
Internal pump Flow rate 100m³/h@2.2bar,11kw
External pump Flow rate 100m³/h@2.6bar,15kw
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, reversed and lacking phase sequence, anti-freezing
net weight kg 2630
Dimension mm 3900*2300*2400


Featurers of  water cooled screw refrigeration chiller
  1. Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.
  2. Stable performance: Anges packaged water cooled screw chiller equipted original famous brand Semi-hermetic screrw compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality. Smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
  3. Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
  4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
  5. Simple installation and operation: This 120ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.

Water chiller service from manufacturer

We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.

Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
