100 Ton Industrial Chiller Integrated System Screw Compressor Chiller

Place of Origin China
Brand Name ANGES
Model Number 100ton
Minimum Order Quantity 1
Packaging Details Plywood case
Delivery Time 25 days
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Water Cooled Screw Chiller Capacity 100ton
Compressor Screw Type Compressor Power 73.9kw
Internal Pump 80m³/hr, 2bar External Pump 80m³/hr, 2bar - 8bar
Refrigerant R22, R407c, R134a Expansion Valve Danfoss Or Emerson
PLC Siemens Chiller Service Online Support, Video Technical Support, Site Service In Some Areas
High Light

100 Ton Industrial Chiller Integrated System


Industrial Chiller Integrated System 100 Ton


100 Ton Screw Compressor Chiller

Leave a Message
Product Description

100ton Water Chiller 100ton Screw Compressor Chiller Central Ac Cool Water Chiller Screw Chiller Package

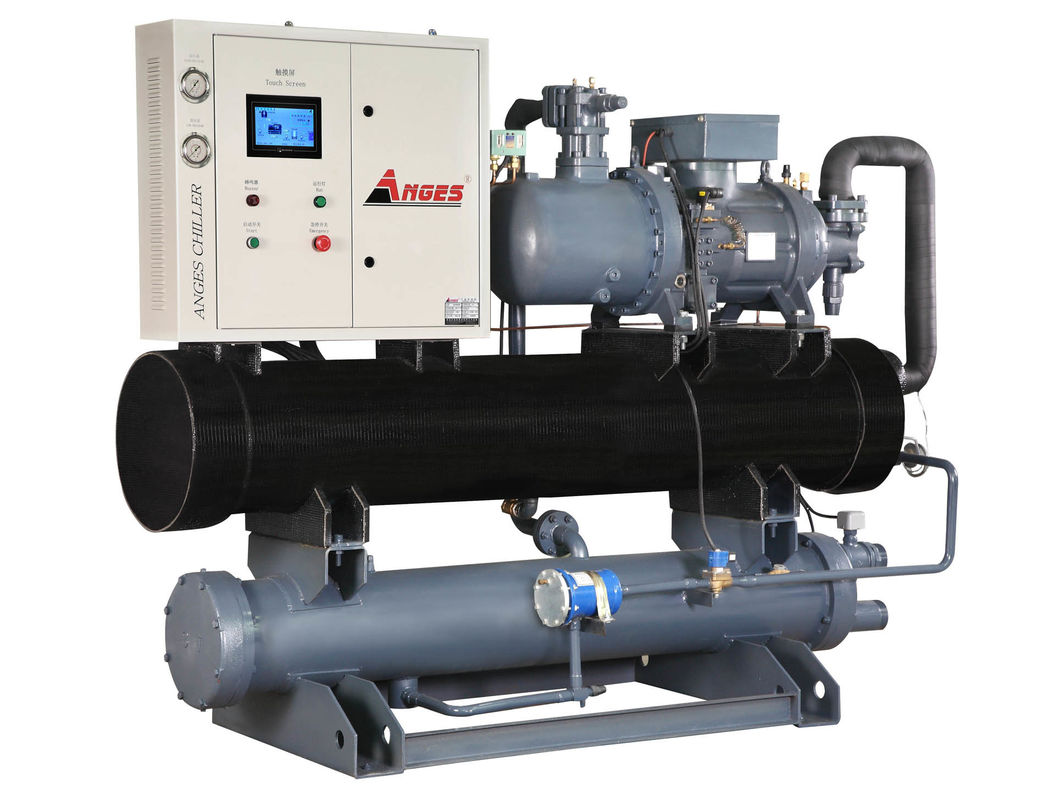

Screw Chiller Package - Integrated Water-cooled Screw Compresspor Chiller


This integrated water-cooled screw chiller is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.



nominal cooling capacity kcal/h 321554
kw 373.9
input power kw 89
max running current A 202.6
power supply 3PH~380V/50HZ
refrigerant type R22
Kg 65
refrigerating circuit 1
type of control expansion valve
compressor type semi-hermetic screw
Power 73.9
quantity 1
start-up mode Y-△
capacity control 0-25-50-75-100
condenser type shell and tube
Water flow (m3/h) 81
inlet and outlet pipe diameter (inch) 4
evaporator type shell and tube
chilled fluid flow (m3/h) 65
inlet and outlet pipe diameter (inch) 4
Tank L 3000
Internal pump Flow rate 80m³/h@2.2bar,7.5kw
External pump Flow rate 80m³/h@2.3bar,7.5kw
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, reversed and lacking phase sequence, anti-freezing
net weight kg 2360
Dimension mm 3900*2300*2400


Featurers of  water cooled screw refrigeration chiller
  1. Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.
  2. Stable performance: Anges packaged water cooled screw chiller equipted original famous brand Semi-hermetic screrw compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality. Smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
  3. Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
  4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
  5. Simple installation and operation: This 100ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.

Water chiller service from manufacturer

We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.

Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
