Screw Type Chiller
>
400 Ton Water Cooled Industrial Chiller 480HP Energy Saving

400 Ton Water Cooled Industrial Chiller 480HP Energy Saving

Brand Name: ANGES
Model Number: 400HP
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Water Cooled Screw Type
Cooling Capacity:
1496 Kw
Compressor:
400 Hp
Condenser:
Shell And Tube
Evaporator:
Shell And Tube
Voltage:
3PH~220V/380V/415V~50HZ/60HZ
Condition:
Brand New
Dimension (l*w*h):
3860*2050*2560 Mm
Warranty:
12 Months
Refrigerant:
R22/R134a/R407c/R410a
Weight:
5850 Kg
Temperature:
5℃~30℃
Highlight:

400 Ton water cooled industrial chiller

,

water cooled industrial chiller 480HP

,

Energy Saving screw type chiller

Product Description

Industrial Water Chiller Cooling System 400ton Water Cooled Energy Saving Chiller Screw Compressor Chilled Water System



What's a water cooled chiller?

Water cooled chillers are more efficient, especially for large cooling loads, and the screw compressors allow the water-cooled chiller achieves comparable part-load efficiencies, whether you run your chiller more often at part or full load, it will save energy.
This water cooled screw chiller system has several essential components including:



Water-cooled chiller

Cooling tower
Water cooling pump
Process chilled water pumps
Water tank



Water Cooled industrial Chiller  Specification

Item AGS-400WFH
nominal cooling capacity kcal/h 1286560
  kw  1496
input power kw 296
max running current A 674.6
power supply 3PH-380V-50HZ
refrigerant type R22
  type of control expansion valve
compressor type semi-hermetic screw
  Power(kw) 74.4×4
  start-up mode Y-△
  capacity control 0-25-50-75-100
evaporator type shell and tube
  chilled fluid flow (m3/h) 257.3
  pipe diameter (inch) 8
condenser type shell and tube
  cooling water flow (m3/h) 308
  pipe diameter (inch) 6"×2
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension mm 3860*2050*2560
net weight kg 5850
running weight kg 6230







Features of water-cooled water scrw chillers

  1. Anges water-cooled screw chillers are large cooling capacity from 120kwand 1600kw. The chilled water temperature provided is within a range of 5℃-30℃.
  2. High efficient shell and tube type evaporator to connect with large water tank directly.
  3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  4. Screw chiller compressor capacity control can be used in four stages (100%-75%-50%-25%) or three stages (100%-66%-33%) and no stage control system.

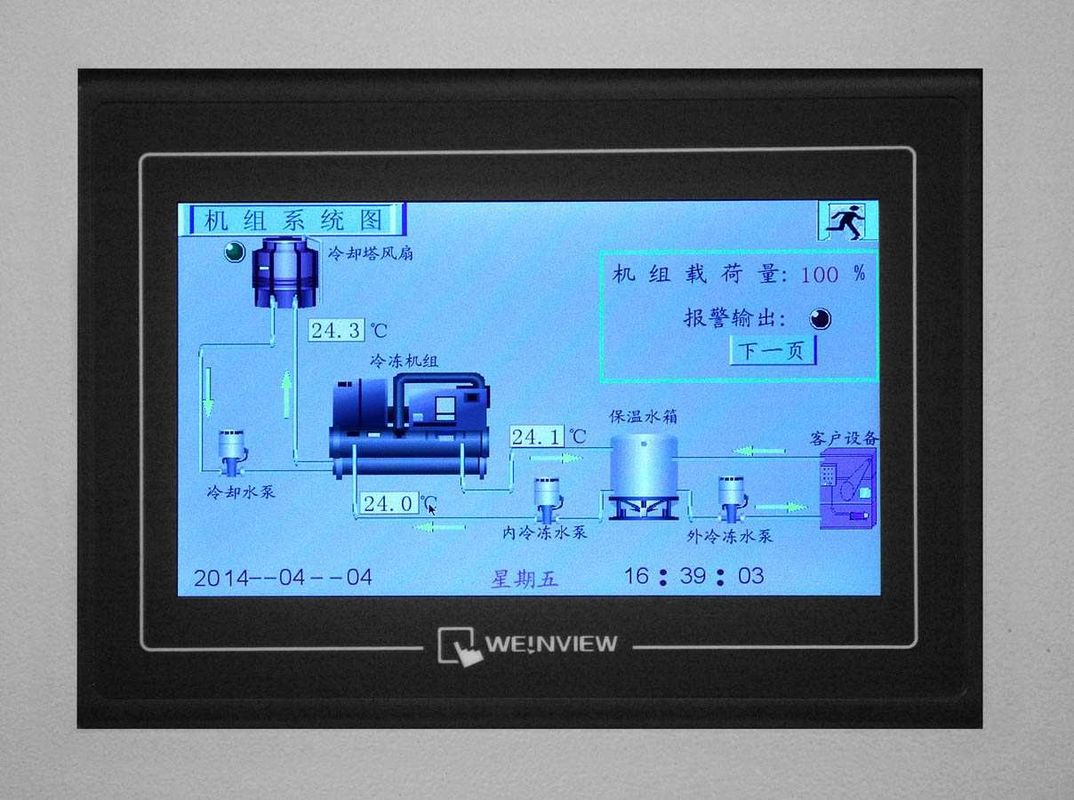

  5. PLC control system,integrated controller, fully automatic operation, to provide fault warning.
  6. Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.

Benefits

  1. Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency and product quality.
  2. The industrial water chillers are use to maintain constant and precise control of the process temperature.
  3. Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
  4. The design is very compact and made of high-grade materials. It has stronger durability and longer service life. It does not need any kind of repair and replacement for a long time, which can save cost.
  5. These industrial screw central chillers are stable operation, high efficiency and energy saving, which are ideal solution for process cooling applications in Injection Molding, Blowing Molding, Extruding machine, Thermal Forming, Beverage Filling processing, Metal Finishing and much more.
Which industrial applications need water chiller?
Industrial water chillers are widely used in many industries like plastic and rubber manufacturing, electronic productions, electroplating, medical chemistry, ultrasonic cooling and printing business, etc. The chillers provide stable temperature, flow and pressure water to transfer heat away from the industrial process and maintain a stable cooling rate, ensuring the highest quality final products.



How to select the model of the chiller ?

  1. We need to know the heat load of your process or chiller cooling capacity.
  2. Required water temperature, water pressure and flow rate.
  3. Application and power supply in local.
  4. Max. Ambient temperature in summer day
  5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.

Water-cooled screw chiller system installation layout
