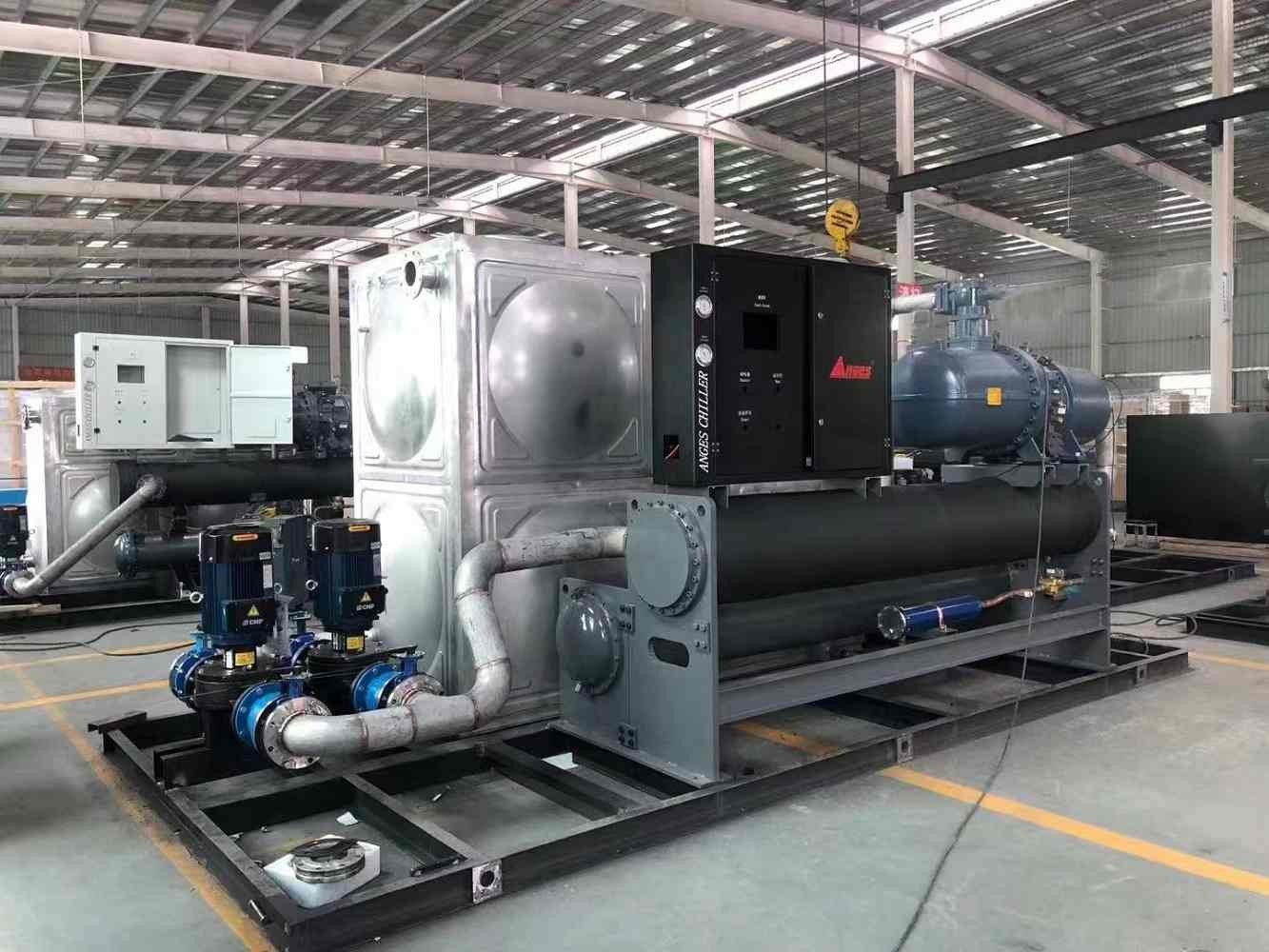

480 Ton Water Cooled Screw Chiller 480HP Industrial Water Chiller Machine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Type||Water Cooled Screw Type||Cooling Capacity||1752 Kw|
|Compressor||480 Hp||Condenser||Shell And Tube|
|Evaporator||Shell And Tube||Voltage||3PH~220V/380V/415V~50HZ/60HZ|
|Condition||Brand New||Dimension (l*w*h)||4120*2130*2630 Mm|
480 Ton Water Cooled Screw Chiller,
Water Cooled Screw Chiller 480HP,
Low Noise industrial water chiller machine
Water-Cooled Screw Chiller 480ton Water Cooled Energy Saving Chiller Screw Compressor Water Chiller Chilled Water System
What's a water cooled chiller?
Water cooled chillers are more efficient, especially for large cooling loads, and the screw compressors allow the water-cooled chiller achieves comparable part-load efficiencies, whether you run your chiller more often at part or full load, it will save energy.
This water cooled screw chiller system has several essential components including:
Water cooling pump
Process chilled water pumps
Water Cooled Energy Saving Chiller Specification
|nominal cooling capacity||kcal/h||1506720|
|max running current||A||805|
|type of control||expansion valve|
|evaporator||type||shell and tube|
|chilled fluid flow (m3/h)||301.3|
|pipe diameter (inch)||10|
|condenser||type||shell and tube|
|cooling water flow (m3/h)||362|
|pipe diameter (inch)||6"×2|
|safety protection||compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.|
Features of water-cooled water scrw chillers
- Anges water-cooled screw chillers are large cooling capacity from 120kwand 1600kw. The chilled water temperature provided is within a range of 5℃-30℃.
- High efficient shell and tube type evaporator to connect with large water tank directly.
- The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
- Screw chiller compressor capacity control can be used in four stages (100%-75%-50%-25%) or three stages (100%-66%-33%) and no stage control system.
- PLC control system,integrated controller, fully automatic operation, to provide fault warning.
- Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.
- Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency and product quality.
- The industrial water chillers are use to maintain constant and precise control of the process temperature.
- Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
- The design is very compact and made of high-grade materials. It has stronger durability and longer service life. It does not need any kind of repair and replacement for a long time, which can save cost.
- These industrial screw central chillers are stable operation, high efficiency and energy saving, which are ideal solution for process cooling applications in Injection Molding, Blowing Molding, Extruding machine, Thermal Forming, Beverage Filling processing, Metal Finishing and much more.
How to select the model of the chiller ?
- We need to know the heat load of your process or chiller cooling capacity.
- Required water temperature, water pressure and flow rate.
- Application and power supply in local.
- Max. Ambient temperature in summer day
- Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
Water-cooled screw chiller system installation layout
