| Brand Name: | ANGES |
| Model Number: | 6hp |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Laser Welding Chiller Laser Cutter Chiller Industrial Air Cooled Chiller Small Packaged Chiller Laser Engraving Chiller
What's the laser chiller?
Laser chiller is a kind of equipment specially used for laser cooling. It can protect the CO2 laser tube, YAG solid laser crystal and the lamp in the laser processing process. In addition, sufficient and constant temperature of the laser cavity is the guarantee of stable laser output power, no thermal variation in the laser cavity and consistent laser beam quality. Therefore, choosing a suitable laser cooling system can greatly improve the service life and machining accuracy of the laser.
Laser chiller is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.

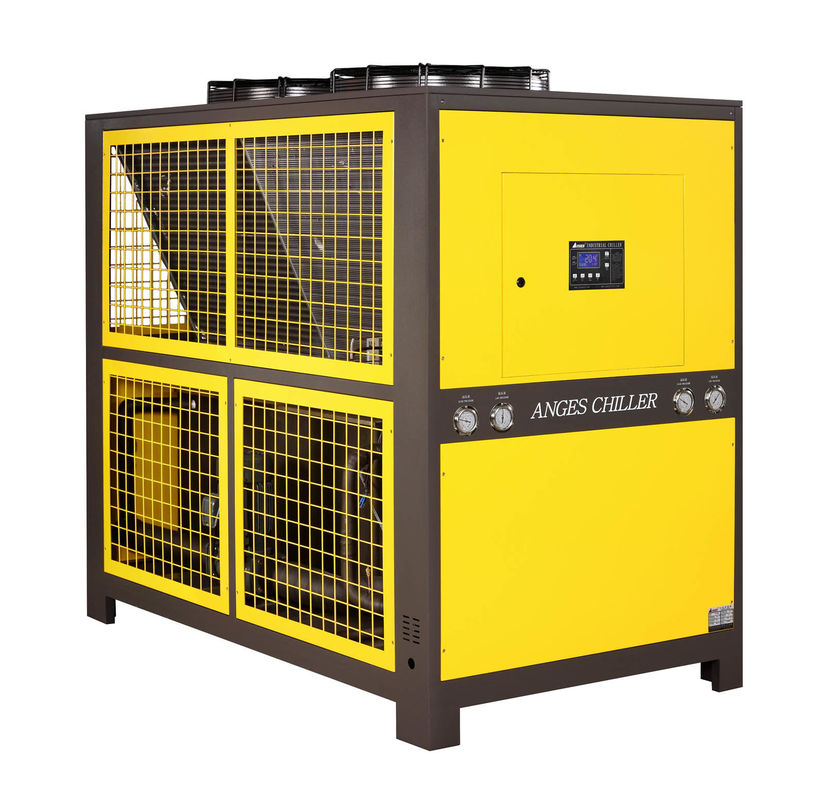

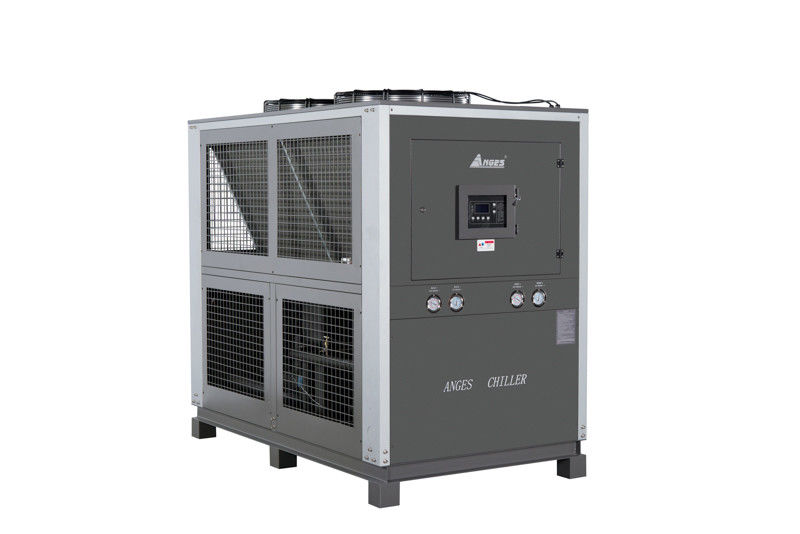

Air Cooled Laser Specification
|
Item |
AL-6 W |
|
| Nominal cooling capacity | Kcal/h | 14706 |
| kw | 17.1 | |
| Input power | kw | 5.73 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Capillary | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 4.8 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.38 | |
| Cooling air flow | 6000 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow | 2.95 | |
| Tank volume(L) | 75 | |
| Inlet/outlet pipe chiller(inch) | 1 | |
| Water pump | Power(KW) | 0.55 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 180 |
| Dimension | mm | 1140*560*1250 |
Featurers for packaged small water chiller
The packed small chiller is lower installation cost.It works after power on and run directly by connecting the water pipes to production line.
Benefits of an laser water chiller
Compared with water-cooled chiller, the outstanding advantages of air-cooled chiller are as follows:
|
|
| Brand Name: | ANGES |
| Model Number: | 6hp |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Laser Welding Chiller Laser Cutter Chiller Industrial Air Cooled Chiller Small Packaged Chiller Laser Engraving Chiller
What's the laser chiller?
Laser chiller is a kind of equipment specially used for laser cooling. It can protect the CO2 laser tube, YAG solid laser crystal and the lamp in the laser processing process. In addition, sufficient and constant temperature of the laser cavity is the guarantee of stable laser output power, no thermal variation in the laser cavity and consistent laser beam quality. Therefore, choosing a suitable laser cooling system can greatly improve the service life and machining accuracy of the laser.
Laser chiller is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.
Air Cooled Laser Specification
|
Item |
AL-6 W |
|
| Nominal cooling capacity | Kcal/h | 14706 |
| kw | 17.1 | |
| Input power | kw | 5.73 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Capillary | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 4.8 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.38 | |
| Cooling air flow | 6000 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow | 2.95 | |
| Tank volume(L) | 75 | |
| Inlet/outlet pipe chiller(inch) | 1 | |
| Water pump | Power(KW) | 0.55 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 180 |
| Dimension | mm | 1140*560*1250 |
Featurers for packaged small water chiller
The packed small chiller is lower installation cost.It works after power on and run directly by connecting the water pipes to production line.
Benefits of an laser water chiller
Compared with water-cooled chiller, the outstanding advantages of air-cooled chiller are as follows:
