| Brand Name: | ANGES |
| Model Number: | 1.5hp |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

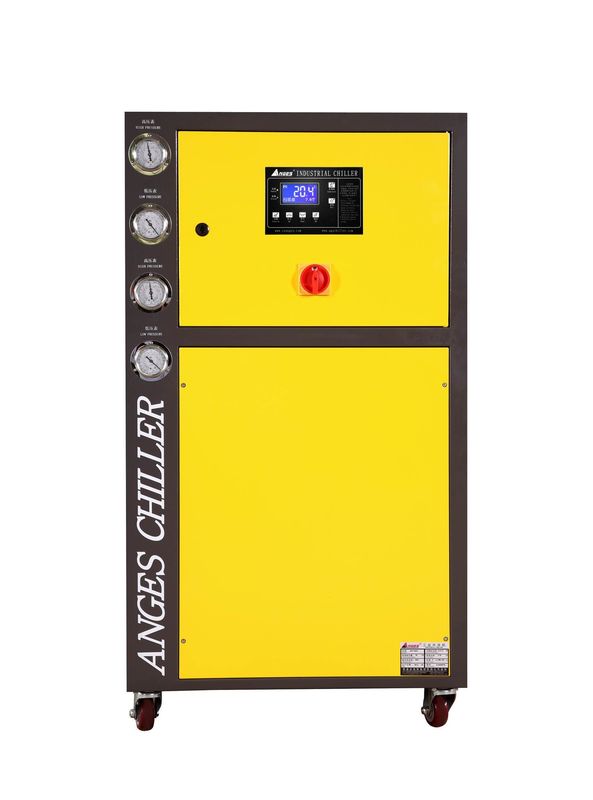

Laser Chiller 1.5W Cooling Laser Chiller Laser Marking Machine Portable Chiller Small Chiller Air Laser Chiller
What's the laser chiller?
In the process of laser processing equipment operation, the chiller through the laser temperature control, keep the laser cavity without thermal deformation, light power stability and ensure the quality of the beam, improve the service life of the laser and cutting accuracy, this chiller is also called laser chiller.
Laser chiller is mainly used in laser marking machine, laser engraving machine, laser welding machine, laser jet coding machine, laser cutting machine and other laser processing equipment.
Laser Cutting Chiller Specification
|
Item |
AL-1.5W |
|
| Nominal cooling capacity | Kcal/h | 3526 |
| kw | 4.1 | |
| Input power | kw | 1.87 |
| Power supply | 1PH~220V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Capillary | |
| Compressor | Type | Hermetic rotary type |
| Power (kw) | 1.35 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.15 | |
| Cooling air flow | 1500 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow | 0.71 | |
| Tank volume(L) | 22 | |
| Inlet/outlet pipe chiller(inch) | 1/2 | |
| Water pump | Power(KW) | 0.37 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 100 |
| Dimension | mm | 580*460*870 |
Water quality and material requirements for laser chiller water systems
The waterway inside the laser is narrow, if there are impurities in the circulating water, it is easy to block the waterway, so the laser has a high requirement on the water quality of the circulating water of the chiller. The water system of laser chiller must be made of stainless steel to prevent rust and other impurities. At the same time, it is recommended to use distilled water or clean purified water as the circulating water of cooling time.

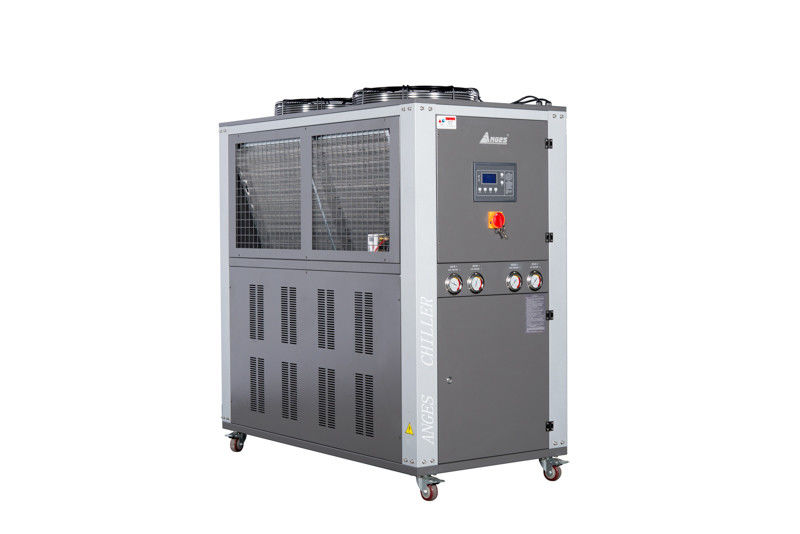

Compared with water-cooled chiller, the outstanding advantages of air-cooled chiller are as follows:
1.The air cooled chiller can be directly installed and used, without additional cooling tower and water pump.
2.The refrigeration efficiency is stable and unchanged for a long time.
3.The maintenance is simple and the subsequent cost is little.
4.Air-cooled refrigeration cycle, energy saving and economy.
How to select the model of the chiller ?
We need to know the heat load of your process or chiller cooling capacity.
Required water temperature, water pressure and flow rate.
Application and power supply in local.
Max. Ambient temperature in summer day
Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
|
|
