xName | Water Cooled Screw Chiller | Capacity | 85hp |
---|---|---|---|
Compressor | Screw Type | Compressor Power | 63.7kw |
Internal Pump | 100m³/hr, 2bar | External Pump | 100m³/hr, 2bar - 8bar |
Refrigerant | R22, R407c, R134a | Expansion Valve | Danfoss Or Emerson |
PLC | Siemens | Chiller Service | Online Support, Video Technical Support, Site Service In Some Areas |
High Light | 85 Ton Water Cooled Central Chiller,Water Cooled Central Chiller HVAC,85hp hvac water chiller |

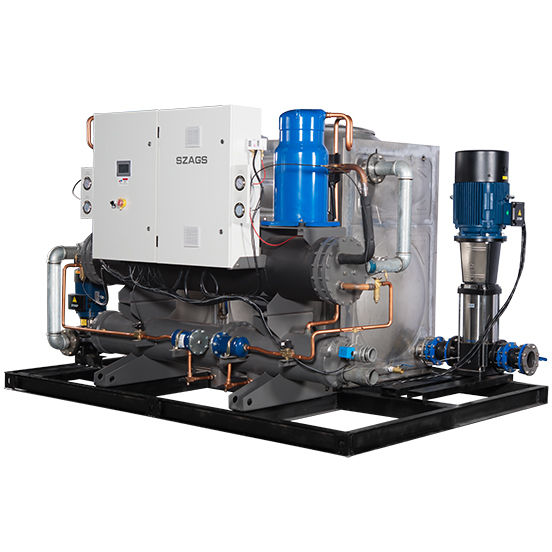

Water Cooled Screw Chiller 85ton Water Chiller Package Chiller Central Chiller Hvac Water Cooled Chiller Modular Chiller
Package Chiller System
This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.
Water-cooled screw chiller
Water-cooled screw chiller systems are especially used for large cooling loads, they have a cooling tower for refrigerant heat dissipation that higher efficiency than air-cooled chillers which use fans for refrigerant heat dissipation.
Water-cooled chillers are more efficient because they condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature.
Normally water-cooled chillers are cheaper and more efficient, with the disadvantage of high water consumption and cost more to install and maintain.
Item |
AGS-85WSHI | |
nominal cooling capacity | kcal/h | 273308 |
kw | 317.8 | |
input power | kw | 79 |
max running current | A | 179.4 |
power supply | 3PH-380V-50HZ | |
refrigerant | type | R22 |
type of control | expansion valve | |
compressor | type | semi-hermetic screw |
Power(kw) | 63.7 | |
start-up mode | Y-△ | |
capacity control | 0-25-50-75-100 | |
evaporator | type | shell and tube |
chilled fluid flow (m3/h) | 54.7 | |
pipe diameter (inch) | 4 | |
condenser | type | shell and tube |
cooling water flow (m3/h) | 68.3 | |
pipe diameter (inch) | 4 | |
safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
Tank | L | 3000 |
External circulation pump | Power(kw) | 7.5 |
Lift(m) | 23.6 | |
Internal circulation pump | Power(kw) | 7.5 |
Lift(m) | 22 | |
dimension | mm | 3600*2250*1995 |
net weight | kg | 2290 |
running weight | kg | 5450 |
- Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.
- Stable performance: Anges packaged water cooled screw chiller equipted original famous brand Semi-hermetic screrw compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality. Smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
- Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
- Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
- Simple installation and operation: This 120ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.
Water chiller Benefits
1. Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency and product quality.
2. The industrial water chillers are use to maintain constant and precise control of the process temperature.
3. Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
4. The design is very compact and made of high-grade materials. It has stronger durability and longer service life. It does not need any kind of repair and replacement for a long time, which can save cost.
5. These industrial screw central chillers are stable operation, high efficiency and energy saving, which are ideal solution for process cooling applications in Injection Molding, Blowing Molding, Extruding machine, Thermal Forming, Beverage Filling processing, Metal Finishing and much more.
Water chiller service from manufacturer
We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
- All the chillers are provided with 12 months free maintenance service.
- Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
- If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
- Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
- Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
