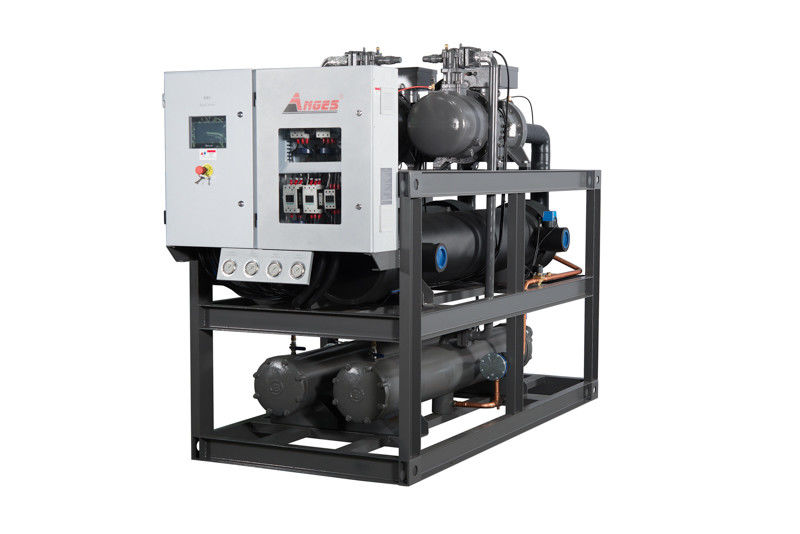

140hp Screw Type Water Cooled Central Chiller 380V 50HZ

Place of Origin China
Brand Name ANGES
Model Number 140hp
Minimum Order Quantity 1
Packaging Details Plywood case
Delivery Time 25 days
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Water Cooled Screw Chiller Capacity 140hp
Compressor Screw Type Compressor Power 105.8kw
Internal Pump 100m³/hr, 2bar External Pump 100m³/hr, 2bar - 8bar
Refrigerant R22, R407c, R134a Expansion Valve Danfoss Or Emerson

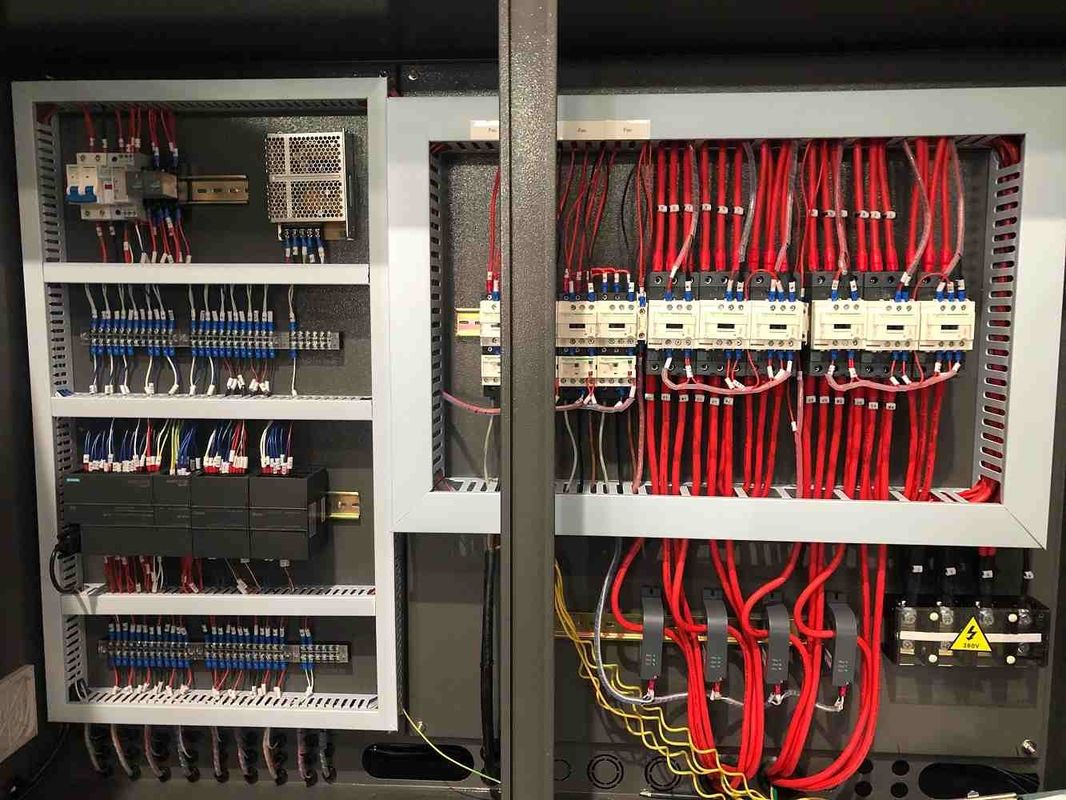

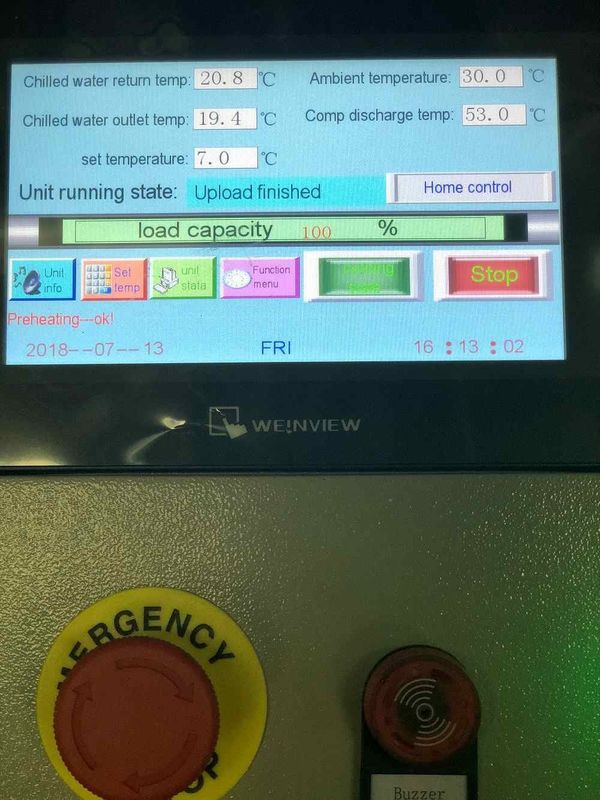

PLC Siemens Chiller Service Online Support, Video Technical Support, Site Service In Some Areas
High Light

Screw Type Water Cooled Central Chiller

,

140hp Water Cooled Central Chiller

,

380V water cooler industrial

Leave a Message
Product Description

Water-Cooled Screw Chiller Systems Central Chiller Package Cooling System Industrial Process Cooling Energy Chiller



Water-cooled screw chiller

Water-cooled screw chiller systems are especially used for large cooling loads, they have a cooling tower for refrigerant heat dissipation that higher efficiency than air-cooled chillers which use fans for refrigerant heat dissipation.
Water-cooled chillers are more efficient because they condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature.
Normally water-cooled chillers are cheaper and more efficient, with the disadvantage of high water consumption and cost more to install and maintain.
This system has several essential components including:

Chiller
Cooling tower
Condenser cooling pump
Process chilled water pump

Water tank



The difference between Air-cooled chiller and Water-cooled chiller
An air-cooled chiller refers to a chiller system that uses the ambient air surrounding the condensing unit to cool and condense the refrigerant back into a liquid. In other words, the air cooled chillers use fans for chiller's refrigerant dissipate heat, but the water-cooled needs to install cooling tower for operation.Water-cooled chillers are more efficient with the disadvantage of having critical maintenance demands included water treatment, chiller condenser-tube cleaning, tower mechanical maintenance, and freeze protection.

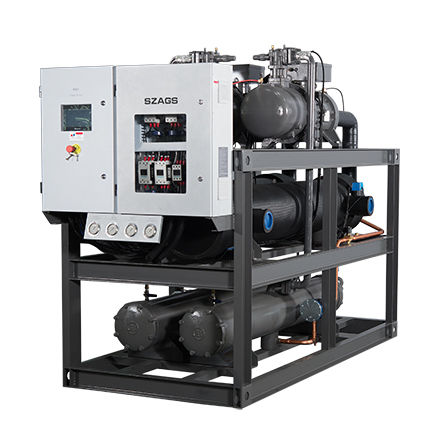

This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.



Item

AGS-140WSHI
nominal cooling capacity kcal/h 457348
  kw 531.8
input power kw 140
max running current A 319.5
power supply 3PH-380V-50HZ
refrigerant type R22
  type of control expansion valve
compressor type semi-hermetic screw
  Power(kw) 105.8
  start-up mode Y-△
  capacity control 0-25-50-75-100
evaporator type shell and tube
  chilled fluid flow (m3/h) 91.5
  pipe diameter (inch) 5
condenser type shell and tube
  cooling water flow (m3/h) 114.3
  pipe diameter (inch) 5
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Tank L 5000
External circulation pump Power(kw) 15
  Lift(m) 26.2
Internal circulation pump Power(kw) 22
  Lift(m) 32
dimension mm 3880*2630*2400
net weight kg 2910
running weight kg 8300




Featurers of  water cooled screw refrigeration chiller

  1. Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.

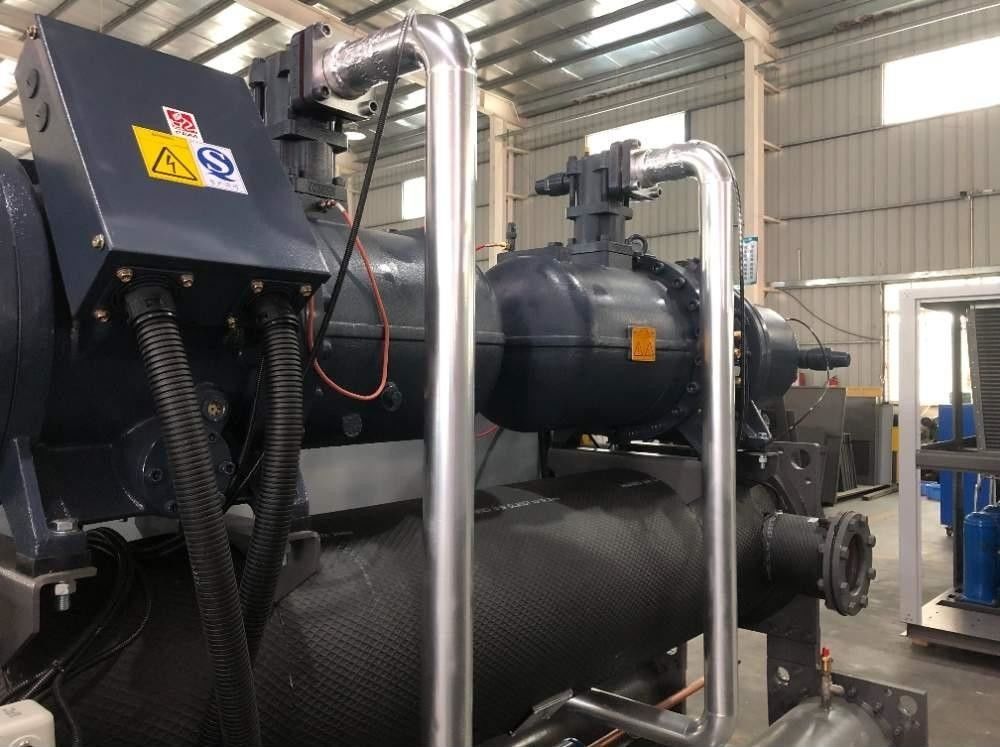

  2. Stable performance: Anges packaged water cooled screw chiller equipted original famous brand Semi-hermetic screrw compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality. Smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
  3. Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
  4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
  5. Simple installation and operation: This 120ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.

Water chiller service from manufacturer

We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.

Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
