Place of Origin:
China
Brand Name:
ANGES
Model Number:
40HP
Contact Us
40Ton Air Cooled Inverter Chiller 40hp Portable Water Chiller Scroll Chiller 40ton Air Water Chiller Chiller Inverter
Air cooled water chiller,cooling capacity is from 3kw to 185 kW (0.85 to 52.6 tons),outptu chilled water from +5 to 30℃.
This air cooled inverter chiller unit is built-in inverter compressor, it is able to match the varying load requirements from production process to adjust the speed of the compressor's motor continuously, so that to ruduce power loss and can save in energy.
Inverter compressor- Variable frequency
The frequency convertible scroll compressor synchronously adjust the frequency of the motor according to the change of heat load to always keep the best match, so as to ensure the machine in the best operating conditions, to to achieve the purpose of energy saving and consumption reduction which can be above 20%. Using frequency conversion drive technology, the energy efficiency of partial load of the unit has been greatly improved and the comprehensive performance coefficient (IPLV) has been improved.
Water Chiller Specification
|
Item |
ACV-40(F) | |
| Nominal cooling capacity | Low frequency kcal/h | 27000 |
| High frequency kcal/h | 97199 | |
| Low frequency kw | 31.40 | |
| High frequency kw | 113.02 | |
| Input power | Low frequency kw | 15.40 |
| High frequency kw | 37.77 | |
| Power supply | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 8.60 | |
| High frequency power (kw) | 30.97 | |
| Condenser | type | Finned copper tube +low noise outer rotor fan |
| power (kw) | 2.8 | |
| Cooling air flow (m3/h) | 40000 | |

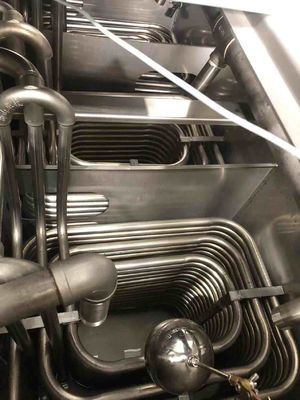

| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 19.49 | |
| Tank | Tank volume(L) | 580 |
| Inlet and outlet pipe caliber(inch) | 2-1/2 | |
| Pump | Power (kw) | 4 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 2100*1660*2100 |
| Weight | kg | 1500 |
Features and benefits of air cooled inverter chiller
Why do I need a industrial water chiller?
Industrial chillers are used for controlled cooling of products, mechanisms and machinery in a variety of industries. A chiller removes heat from the process water and transfers it to air via a heat exchanger.Industrial water chiller can keep your equipment at a safe operating temperature and cool your components during processes to ensure the highest quality final products and reduce production cycle time.
How to select the model of the chiller ?
We need to know the heat load of your process or chiller cooling capacity.
Required water temperature, water pressure and flow rate.
Application and power supply in local.
Max. Ambient temperature in summer day
Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
