30Ton Air Cooled Chiller Inverter Chiller 30hp Portable Water Chiller 30ton Air Chiller System Frequency Power Chiller
Industrial Air Cooled Chiller Applications
The function of an industrial chiller is to move heat from process equipment or product, it's work for different applications including injection molding, extrusion molding, blowing molding, tool and die cutting, food and beverage, chemicals, laser cutting, printing,grinding/sand miller, hydrogenation process, waterjet cutting and so on.

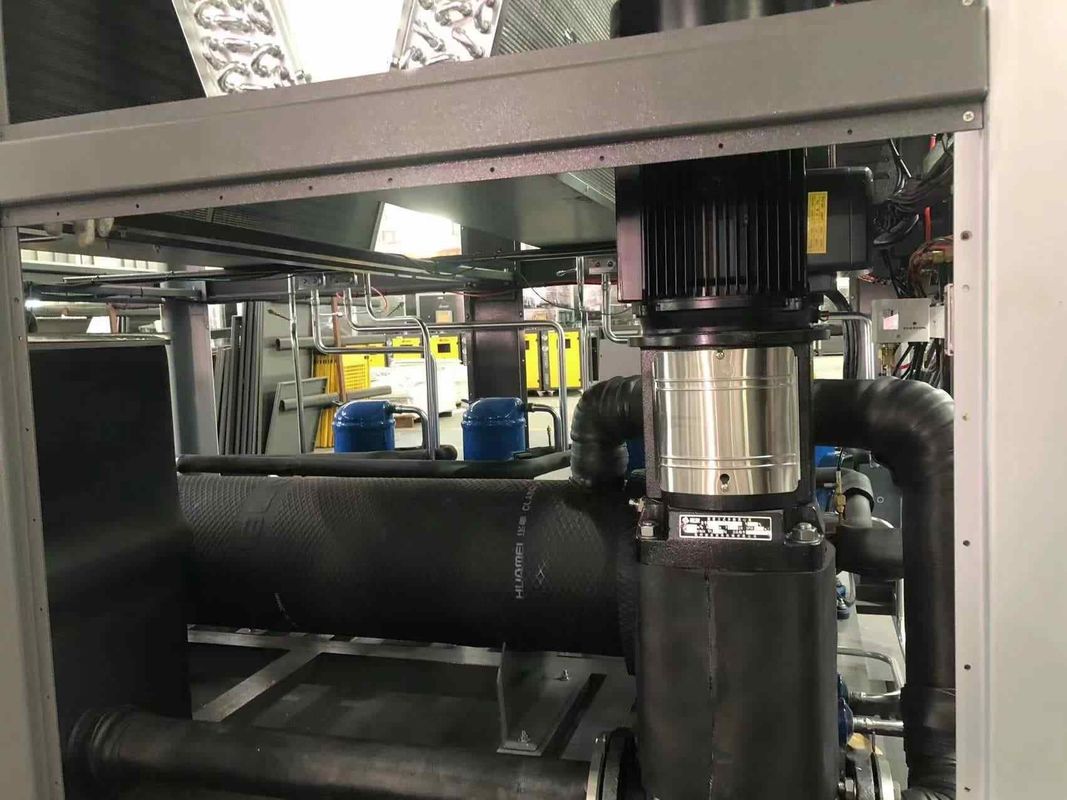

The air cooled inverter chiller unit is a packed systems, including stainless steel #304 water tanks, pumps, the installation is relatively simple, and the installation and maintenance cost is lower.This inverter chiller use inverter compressor which can continuously monitors the heat load and adjusts the compressor speed for peak efficiency and temperature control.
Air Cooled Inverter Chiller Specification
|
Item |
ACV-30(T) | |
| Nominal cooling capacity | Low frequency kcal/h | 20250 |
| High frequency kcal/h | 72899 | |
| Low frequency kw | 23.55 | |
| High frequency kw | 84.77 | |
| Input power | Low frequency kw | 12.29 |
| High frequency kw | 29.07 | |
| Power supply | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 6.45 | |
| High frequency power (kw) | 23.23 | |
| Condenser | type | Finned copper tube +low noise outer rotor fan |
| power (kw) | 1.84 | |
| Cooling air flow (m3/h) | 30000 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow(m3/h) | 14.61 | |
| T | Tank volume(L) | 460 |
| Inlet and outlet pipe caliber(inch) | 2-1/2 | |
| Pump | Power (kw) | 4 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 2150*1480*1950 |
| Weight | kg | 1300 |
Air Cooled Inverter Chiller Features and Benefits
Brief comparison between Air cooled chiller and Water cooled chiller
|
How to select the model of the chiller ?
