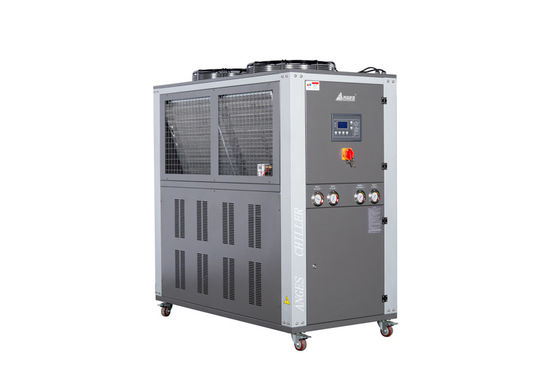

15 Ton Industrial Air Cooled Inverter Chiller 15HP
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | 15HP |
| Minimum Order Quantity | 1 |
| Delivery Time | 25 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Air-Cooled | Refrigerant | R134a/R407c/R410a |
|---|---|---|---|
| Cooling Capacity | 15Ton | Compressor Type | Inverter Scroll Chiller |
| Chilled Water Flow | 7.48 M³/h | Pump | 2bar |
| After-sales Service Provided | Online Support, Video Technical Support, Overseas Service Center Available | ||
| High Light | Industrial Air Cooled Inverter Chiller,15 Ton Air Cooled Inverter Chiller,15HP industrial water chiller machine |
||
Product Description
15 Ton Portable Water Cooled Chiller Inverter Chiller Air Cooled Scroll Chiller Industrial Chiller Cooling System
Industrial portable water chiller
Industrial portable water chiller is a complete cooling system that includes water tank and process pump, useful for small process loads to make the installation and operation more easier,which is incluede air cooled and water cooled type chiller.
This 15 ton portable chiller use inverter compressor which can continuously monitor the heat load and adjusts the compressor speed for peak efficiency and temperature control. In this case, the inverter chillers with outstanding part load and seasonal efficiency, with a great energy saving solution.
Portable Chiller Specification
|
Item |
ACV-15(D) | |
| Nominal cooling capacity | Low frequency kcal/h | 10365 |
| High frequency kcal/h | 37314 | |
| Low frequency kw | 12.05 | |
| High frequency kw | 43.39 | |
| Input power | Low frequency kw | 5.98 |
| High frequency kw | 14.75 | |
| Power supply | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 3.38 | |
| High frequency power (kw) | 12.15 | |
| Condenser | type | Finned copper tube +low noise outer rotor fan |
| power (kw) | 1.1 | |
| Cooling air flow (m3/h) | 15000 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 7.48 | |
| T | Tank volume(L) | 300 |
| Inlet and outlet pipe caliber(inch) | 2 | |
| Pump | Power (kw) | 1.5 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 1850*990*1870 |
| Weight | kg | 850 |
Why do I need a industrial water chiller?
Industrial chillers are used for controlled cooling of products, mechanisms and machinery in a variety of industries. A chiller removes heat from the process water and transfers it to air via a heat exchanger.Industrial water chiller can keep your equipment at a safe operating temperature and cool your components during processes to ensure the highest quality final products and reduce production cycle time.
Features of air cooled water scroll chiller
- Advanced Configuration:Air-cooled inverter chillers from 3kw to 185kw equipped with world class components, such as Danfoss, Copeland and Panasonic scroll compressor, Schneider electric appliances and so on.
- Inverter compressor:The air cooled chiller uses famous brand interter compressor.Using frequency conversion drive technology, the energy efficiency of partial load of the unit has been greatly improved and the comprehensive performance coefficient (IPLV) has been improved.
- High efficiency:The water chiller adopts DC frequency conversion compressor control technology and electronic expansion valve throttling, so that its energy efficiency rate is more than 30% higher than the ordinary fixed frequency unit.
- Accurate temperature control:Advanced DC frequency conversion control technology is adopted to achieve high control accuracy, and the temperature control accuracy can reach ±0.1℃-±0.2℃.
- Rapid cooling.Inverter chiller can run the compressor at high speed. As a result, it can cool water faster.
Benefits of an industrial water chiller
- Industrial water chiller can reduce downtime and improve productivity
- Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ±0.1
- Industrial chiller is usually closed-loop systems, which can save water through recirculation cooling
- Water chiller applied in Plastic and Rubber industry.It can accurately control the molding temperature and shorten the molding cycle.
- Decrease equipment depreciation and degradation to cut down on operating expenditures.
